DIY Workbench for Drilling and Sawing | Build in 21 Steps 2026

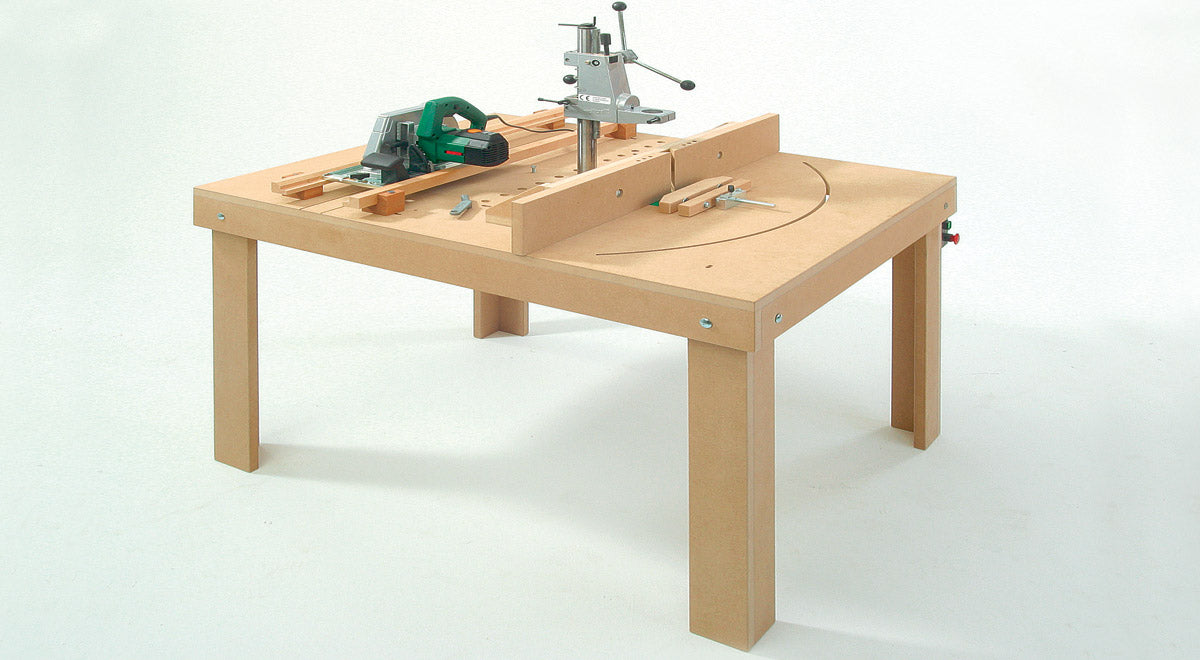

This extremely practical workbench, if built with extreme precision, allows you to guide all manual power tools with a base plate—such as circular saws, routers, etc.—with maximum accuracy. It enables you to make chamfers or bevel cuts, and to transform your router (read our guide to learn how to rout wood) into a kind of spindle moulder by inserting it from under the bench or mounting it upside down on a drill press column. That column, of course, also turns your portable drill into a bench tool.

The sturdy DIY workbench (to be fixed to the floor or stiffened with crossbars or X-braces) is perfect for square cutting panels up to about 800 mm wide and 25 mm thick, and as long as your available space allows once the column and spindle moulder guard are removed.

All power tools with a base plate can slide along the guides, working either flat or, by lifting the outer guide, at an angle. On this workbench you can quickly mount and dismount the column for the drill or router, and by mounting the latter under the tabletop, the sliding guard lets you use it as a spindle moulder.

How to Design a Workbench

Before starting, think about the space you have and the main tasks you'll perform. A well-planned bench saves time and improves safety. For your workshop setup, consider home improvement essentials that make any project easier.

What You Need to Build a Work Table

Tools:

• Circular saw (to mount on the bench)
• Jigsaw
• Drill (with plunge guide)
• Router
• Flat dowel joiner (integral or angle grinder accessory)
• Screwdrivers or impact driver

Materials:

• 25 mm MDF: 4 half-legs (1) 100×800 mm; 4 half-legs (2) 75×800 mm; 2 straps (3) 90×1200 mm; 2 straps (4) 90×950 mm
• 1 worktop (5) 1000×1200 mm
• 1 reinforcement (6, under the arched slot) 210×100 mm
• 2 sliding cheeks for spindle moulder guard (7) 130×500 mm
• 1 guard base (8) 125×750 mm
• 1 guard front (9) 125×750 mm
• 2 guard front supports (10) 100×125 mm
• 24 mm hardwood plywood: 2 half column supports (11) 340×100 mm
• Beech or similar: 2 sliding guides (12) 30×40×1000 mm
• 4 supports (13) 50×55×60 mm
• Additionally, beech plywood of various thicknesses and sizes for the spindle moulder cover, iron parts, etc.

To keep your materials organized, check out garden supplies for storage solutions that work indoors too.

Starting the Workbench Construction

Begin by cutting all MDF and plywood pieces to the listed dimensions. Precision is key—use a good circular saw and a guide rail. For lighting your workspace, browse lighting options to ensure you see every cut clearly.

The Worktop

The worktop (5) is the heart of the bench. Cut a precise slot for the router or saw blade, and reinforce it underneath with piece (6). Sand all edges smooth. If you need a comfortable place to sit while working, consider adding a quality office chair for your workshop desk area.

The Support Structure

Assemble the legs (1 and 2) and straps (3 and 4) to form a rigid frame. Use screws and wood glue for maximum stability. For additional storage, a storage bench can double as seating and keep tools handy.

The Accessories

Build the sliding guides (12) and supports (13) from beech. Mount the column supports (11) for the drill press or router. The sliding guard (7, 8, 9, 10) lets you safely use the router as a spindle moulder. To complete your workshop, add a desk or work surface for planning and design tasks.

Frequently Asked Questions

1. Can I use this workbench outdoors?

Yes, but protect it from moisture. For outdoor projects, browse outdoor patio furniture that matches your style.

2. What if I don't have a router?

You can still use the bench for drilling and sawing. A dining table might also serve as a temporary work surface for lighter tasks.

3. How do I keep the bench stable?

Fix it to the floor or add X-braces. For extra comfort while working, consider a comfortable sofa in your break area.

4. Can I mount a vise on this bench?

Absolutely—drill mounting holes in the worktop. A bed frame could be repurposed for clamping if needed.

5. What's the best finish for the worktop?

Apply a few coats of polyurethane or hard wax oil. For a coordinated look, add a rug to define your workshop zone.
