Drilling Round Rods with Precision: DIY Tips & Tools 2026

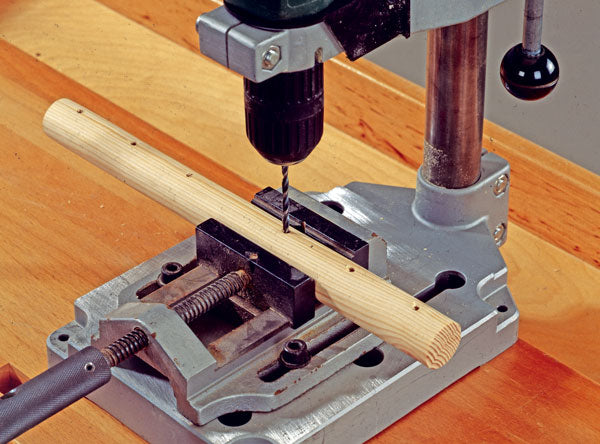

Drilling wooden or metal round rods is undoubtedly more challenging than working with square beams or flat pieces, which have flat surfaces for easy marking and clamping in any vise. Small vises used with drill press stands can at most hold a broom handle, and sometimes not even that. The opening may be sufficient, but the jaws lack the depth to clamp rods over 20 mm in diameter. The force concentrates on a single point of the circumference, which is why some vises feature a V-shaped longitudinal groove in the center of the jaw contact plate to help grip round pieces.

Some drill press stands have a similar groove in the center of the workpiece support table, which automatically centers the rod under the bit. The problem reappears when drilling larger diameter rods, perhaps needing to make a pair of holes exactly at 90°, as for table legs. In this case, the only solution is to build a custom support.

A Useful Support Jig

From a piece of lumber with a 70×80 mm section, at least 150 mm long, you can create a prism that helps hold rods up to 60 mm in diameter. By adjusting the depth of your table saw, make four longitudinal cuts in the center of each face, then finish the work to obtain 4 different V-grooves, which should be sanded smooth. This jig works perfectly with a table saw or a drill press, and you can pair it with a sturdy workbench for stability.

Drilling Table Legs with Precision

When drilling table legs, especially for dining tables, you often need two holes at a perfect 90° angle. This custom V-groove jig ensures the rod stays centered and doesn't rotate during drilling. For best results, clamp the jig securely to your work surface and use a drill press for vertical accuracy.

Essential Tools for Drilling Round Rods

• Drill press stand – For vertical drilling accuracy. Check out home improvement tools for reliable models.
• Vise with V-grooves – Improves grip on round stock. Many drill press accessories include these.
• Table saw – For cutting the V-grooves in your jig. Browse garden and workshop supplies for saws.
• Clamps – To hold the jig and workpiece steady. Find clamping tools online.
• Safety glasses – Always wear protection when drilling.

Step-by-Step Guide

1. Cut a 70×80 mm timber to at least 150 mm length.
2. Set your table saw depth to create a V-groove about 10 mm deep.
3. Make four cuts, one in the center of each face.
4. Sand the grooves smooth to prevent marring the rod.
5. Clamp the jig to your workbench.
6. Place the rod in the appropriate groove based on diameter.
7. Drill slowly with a sharp bit, using a drill press for best results.

Frequently Asked Questions

Can I drill round rods without a drill press?

Yes, but it's much harder to keep the hole straight. A drill guide or a homemade jig helps. For precision, a drill press is recommended.

What size V-groove do I need?

The groove should be slightly wider than the rod diameter. For rods up to 60 mm, a 10 mm deep V-groove works well. You can make multiple grooves for different sizes.

How do I drill a hole exactly at 90° through a rod?

Use a V-groove jig clamped to a flat work surface. Mark the entry point, then drill from both sides meeting in the middle for through holes.

What type of drill bit is best for metal rods?

For metal, use cobalt or titanium-coated bits. For wood, standard high-speed steel bits work fine. Always lubricate metal drilling with cutting oil.

Can I use this technique for furniture assembly?

Absolutely! This is perfect for drilling table legs, chair rungs, or any round component. Pair it with dowel centers for alignment.
