How to Build a DIY Iron Window Grille with Spear Tips 2026

We followed the creation of a series of window grilles at the workshop of artisan blacksmith Vito Mininno, choosing a DIY grille project that is easy to make and offers a great balance of feasibility and aesthetic appeal—something simpler builds often lack. The defining feature of this DIY window grille is the use of spear tips. This is a very popular solution, and for this occasion, we selected pre-forged tips that are commonly available at large DIY centers. Designed this way, these iron grilles require no specific blacksmithing skills or techniques other than arc welding. The real challenge lies in the care and precision needed to first position the spear tips when attaching them to the rods, and then to space and weld the entire spears parallel to each other: every small alignment error in such projects is immediately noticeable. For the rest, it involves creating a sort of frame that must fit within the window opening, leaving a gap of about 50 mm on all sides. The frame consists of four segments of flat bar (35×8 mm section), plus three segments of flat bar (25×5 mm section) oriented horizontally, positioned to cross and reinforce the spears; another three of these are overlaid at the end.

Creating the DIY Window Grille Frame

1. Stacked after construction, the grilles are ready for protective treatment, which should be done before assembly. Since there are hard-to-reach areas, brushing or spraying may be tricky; in this case, a galvanizing bath might be the best solution, but it must be done at specialized workshops. For your own project, consider using home improvement supplies for protective coatings and tools.
2. Cut the round rods in series to the predetermined length. To weld the spear tips to one end, you need to create a jig that allows you to perfectly center the two pieces (which have different diameters) and align them exactly. The blue arrows indicate the specially placed guides for this purpose. A sturdy work surface or bench is essential for this kind of precision metalwork.
3. Position the horizontal flat bars across the vertical spears. These bars stabilize the structure and create the classic grid pattern. Use clamps to hold everything in place before welding. For a professional finish, ensure your garden supplies area or workshop is well-organized with proper storage for your materials.

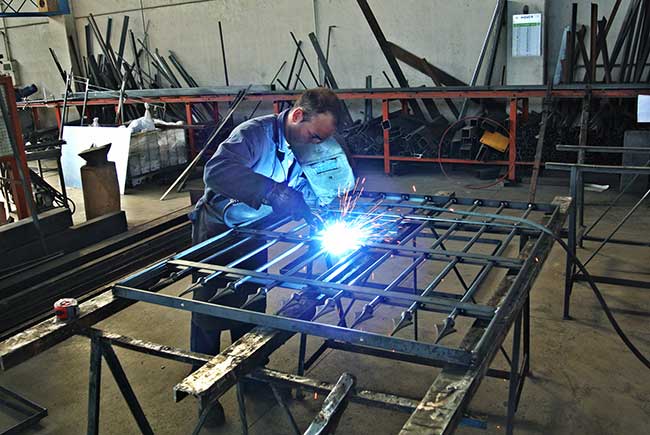

4. Weld all intersections carefully, starting with the frame corners and then moving to the spear-to-crossbar joints. A clean weld bead is both functional and decorative. If you're working on this project outdoors, having outdoor patio furniture nearby can provide a comfortable resting spot during breaks.

Finishing and Completing the DIY Window Grille

5. Grind down any rough welds using an angle grinder with a flap disc. This step is crucial for both safety and appearance. The smooth finish will also help the paint or protective coating adhere better. Good lighting in your workspace is vital to spot imperfections.
6. Apply a rust-inhibiting primer followed by two coats of metal paint. Black or dark gray are traditional choices for iron grilles, but you can match your home's trim. For the best results, use high-quality home improvement paints and brushes from our collection.
7. Mount the grille using heavy-duty masonry anchors and brackets. Make sure the grille is level and securely fastened. The gap of about 50 mm from the window frame allows for ventilation while maintaining security. Consider coordinating your new grille with wall decor elements for a cohesive look.

Frequently Asked Questions

What tools do I need to build a DIY iron window grille?

You will need an arc welder, angle grinder with cutting and grinding discs, tape measure, square, clamps, and safety equipment (welding helmet, gloves, goggles). A storage shed is great for keeping your tools organized when not in use.

Can I build this grille without welding experience?

While arc welding is required, this project is suitable for beginners with some practice. We recommend taking a short welding course or practicing on scrap metal first. For the rest of your home, kitchen islands and carts can be assembled with basic tools if you prefer no-weld projects.

What type of metal should I use?

Standard mild steel flat bars (35×8 mm for the frame, 25×5 mm for crossbars) and round rods (10-12 mm diameter for the spears) work perfectly. Pre-forged spear tips are available at most hardware stores. Consider complementing your space with mirrors to enhance natural light in your home.

How do I protect the grille from rust?

After welding, grind all surfaces smooth, apply a rust-inhibiting primer, and finish with two coats of exterior-grade metal paint. For maximum protection, hot-dip galvanizing is recommended but requires professional service. A greenhouse in your garden can benefit from similar protective treatments for its metal frame.

How long does this project take?

For a standard window grille (about 1m x 1.5m), expect to spend 4-6 hours spread over two days: one day for cutting and welding, another for grinding and painting. Plan your workspace with comfortable office chairs for planning and design work.

Tips for a Professional Result

• Always use a jig to ensure consistent alignment of spear tips on all rods.
• Weld in a well-ventilated area and wear proper PPE.
• Apply paint in thin, even coats to avoid drips.
• Measure your window opening twice before cutting any metal.
• Consider adding decorative scrolls or finials for a custom touch. Browse our outdoor decor collection for inspiration.

This DIY iron grille project is rewarding and adds both security and character to your home. With careful planning and attention to detail, even a beginner can achieve beautiful results. For more home improvement ideas, explore our complete range of home improvement products and garden supplies.
