How to Install Prefabricated Water Drainage Channels (DIY Guide) 2026

Heavy rain rushing down your garage ramp can be intercepted and diverted away from the entrance using prefabricated drainage channels. The same applies to an inclined or gravel driveway: installing one or more prefabricated channels with a traffic-rated grate — cutting longitudinally across the path and channeling water into a side drain — prevents rainwater from carving deep ruts and washing gravel downhill.

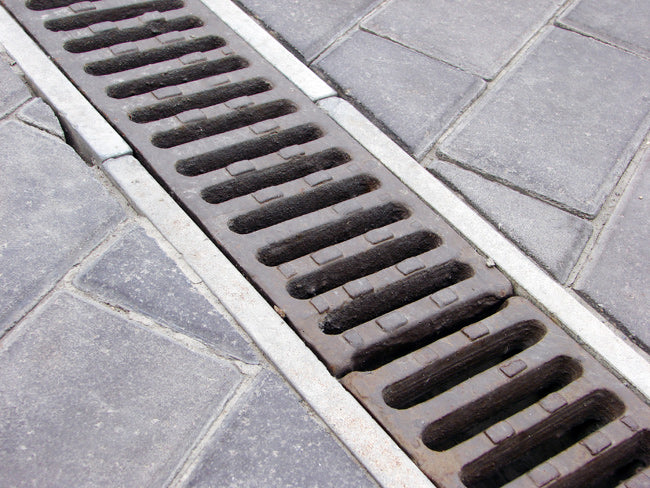

Prefabricated channels are installed in a trench, then concrete is poured along the sides to secure them.

Drainage Channels – What You Should Know

• The top edge of the water collection channels and sumps must remain level with the final surface of the courtyard or sidewalk. Therefore, it should protrude a few centimeters before the final covering and leveling.
• Prefabricated drainage channels act as “gutters” where the natural terrain does not allow rainwater to collect and disperse naturally. The upper face of these elements is concave in the center to collect and channel rainwater toward a discharge pipe through grille elements that are interspersed with flat ones.

Installing Prefabricated Drainage Channels

The number and spacing of prefabricated concrete channels depend largely on the slope and nature of the ground, which may have depressed areas where puddles form during rain.

Lay the concrete channels on a bed of compacted sand, giving them the slope needed to direct water sideways — either to a soakaway or into another channel.

To cut concrete channels to size, use an angle grinder with a stone cutting disc; plastic channels can be cut with a standard hacksaw.

Once all elements are placed in the trench and firmly connected to each other, compact the soil around the trench well, making sure the top edge remains level.

When You Need a Sump Pit

If the drainage channel run is long or connects to an underground pipe system, a sump pit (pozzetto) is required at the lowest point. This collects debris and allows easy cleaning. Install the sump at the end of the channel run, connecting it to the outlet pipe.

FAQ

1. Can I install drainage channels on my own?
Yes, with basic DIY skills and tools. The process involves digging a trench, laying a sand bed, positioning the channels, and backfilling with concrete.

2. What material is best for driveway channels?
Concrete channels with galvanized steel grates are ideal for driveways because they withstand vehicle weight. For lighter use, plastic channels work well.

3. How do I ensure proper water flow?
Maintain a minimum slope of 1-2% (1-2 cm per meter) toward the outlet. Use a spirit level during installation.

4. Do I need a sump pit?
Yes, if the channel connects to an underground drainage system or if the run exceeds 10 meters. It makes cleaning and maintenance easier.

5. Can I connect multiple channels together?
Absolutely. Most prefabricated channels have interlocking ends. Use PVC glue or rubber gaskets (depending on the system) to seal joints.
