How to Weld with Continuous Wire: A Complete DIY Guide 2026

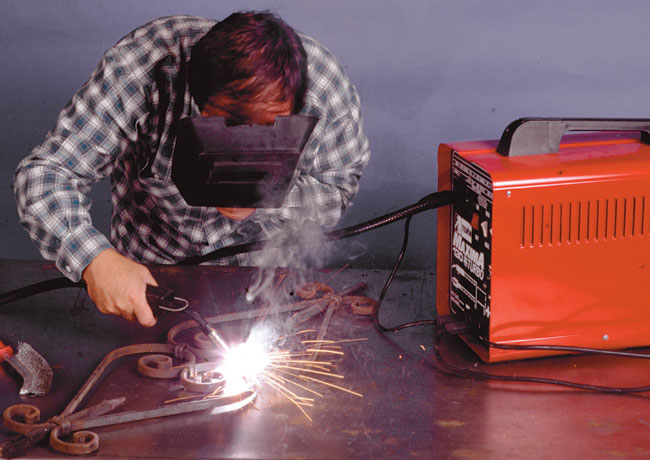

Continuous wire welding is performed using a dedicated wire welder: through a special "torch" traversed by a metal wire, by connecting the ground clamp to the metal to be welded, it is possible to create a continuous arc between the wire and the metals to be joined, melting the wire itself and the edges of the metals to form a thin weld bead. This technique is especially suitable for welding thin sheets, which would be irreparably pierced by the power of a normal welder's arc, but it also performs excellently on thick pieces. It is also very practical for prolonged welds with a gasless wire welder, as the spool contains many meters of wire and there is no need to interrupt the bead to insert a new electrode. Let's see how to weld with continuous wire.

Characteristics and Peculiarities of Continuous Wire Welding

Continuous wire welding is performed with a specific wire welder. The torch feeds a metal wire while the ground clamp connects to the workpiece. This creates a continuous arc that melts both the wire and the base metals, forming a solid weld joint. For any home improvement project requiring metal repairs or fabrication, mastering this technique is invaluable.

How Does a Wire Welder Work?

The wire welder automatically feeds the filler wire from a spool through the torch. The operator simply guides the torch along the joint. The machine controls wire speed and current intensity. Many modern wire welders can handle both gas-shielded (MIG) and gasless (flux-cored) processes. When setting up your workshop, consider complementing your welder with quality lighting to ensure good visibility of the weld puddle.

What You Need to Know About Continuous Wire Welding

With some wire welders, you can perform MIG welding in a gaseous environment and create joints between special metals. The filler wire can also be in different alloys to adapt to the type of metals to be joined. The weld pool forms in a protective inert gas atmosphere (MIG: Metal Inert Gas). The gas atmosphere is generated by a cylinder that delivers gas to the torch. The gases vary depending on the metals to be welded. However, there are continuous welding wires for iron and steel that do not require any gaseous atmosphere, so welding can normally take place even without the use of inert gas cylinders: in this case, the wire is called "flux-cored" because it incorporates a deoxidizing "core." For outdoor projects, a shed provides an ideal sheltered workspace for welding tasks.

Key Factors for Successful Welds

• Wire speed: Too fast causes poor penetration; too slow creates excessive buildup.
• Current setting: Match the material thickness – thin sheets need lower amperage.
• Travel speed: Move the torch at a consistent pace along the joint.
• Gun angle: Typically 10-15° push angle for MIG welding.
• Stick-out: Keep wire extension at about 10-15mm from the nozzle.

How to Perform Continuous Wire Welding

Flux-cored wire welders are similar to a normal arc welder, but they have a compartment for the wire spool. On the front, you'll find controls: the knob that regulates wire speed and the current intensity selector. To weld, first prepare the metal surfaces by cleaning them of rust, paint, and dirt. Secure the pieces with clamps or magnets. Set your machine according to the wire diameter and material thickness. Don a welding helmet and gloves. Strike the arc by touching the wire to the workpiece and pulling the trigger. Maintain a steady hand and consistent travel speed. For comfortable positioning during longer sessions, consider an office chair with good back support in your workshop.

Step-by-Step Welding Process

1. Clean the metal surfaces thoroughly.
2. Set up your workpiece with proper clamping.
3. Select the correct wire and gas (if using MIG).
4. Adjust wire speed and current on the machine.
5. Put on all safety gear (helmet, gloves, apron).
6. Position the torch at the starting point.
7. Pull the trigger to start the arc and begin moving.
8. Maintain a consistent travel speed and angle.
9. Release the trigger at the end of the weld.
10. Let the weld cool naturally – do not quench.

Frequently Asked Questions

What is the difference between MIG and flux-cored welding?

MIG welding uses a solid wire and requires an external shielding gas (usually argon/CO2 mix) to protect the weld pool from contamination. Flux-cored welding uses a tubular wire filled with flux that creates its own shielding gas when heated. Flux-cored is better for outdoor use because wind doesn't blow away the shielding gas. Both methods are continuous wire processes. For storing your welding equipment and gas cylinders, a sturdy storage bench helps keep your workspace organized.

Can I weld aluminum with continuous wire?

Yes, but aluminum requires a spool gun or push-pull system because the soft wire tends to bird-nest in standard feeders. You also need 100% argon shielding gas and a special aluminum wire. It's more challenging than welding steel, but achievable with practice. Make sure your workspace has adequate outdoor lighting if you're working in a garage or shed.

Why does my wire keep feeding improperly?

Common causes include: incorrect tension on the drive rolls, dirty or damaged liner, wrong size contact tip, or kinked wire. Check that the spool spins freely, the wire path is clean, and all components match your wire diameter. Regular maintenance of your welder is essential. A clean, well-organized work surface makes troubleshooting much easier.

Do I need gas for continuous wire welding?

Not necessarily. Flux-cored wire (self-shielded) does not require external gas, making it more portable and cost-effective for many DIY projects. However, MIG welding with gas produces cleaner welds with less spatter. For thin materials or visible welds, gas-shielded MIG is often preferred. If you're working on outdoor patio furniture repairs, flux-cored welding is usually sufficient and more convenient.

How do I choose the right wire diameter?

0.030" (0.8mm) is ideal for thin sheet metal up to 1/8". 0.035" (0.9mm) works well for general-purpose welding on 1/8" to 1/4" material. 0.045" (1.2mm) is for thicker plates. Match your wire to both material thickness and your machine's capabilities. For welding projects involving garden supplies like metal planters or trellises, 0.030" or 0.035" wire is typically perfect.

What safety precautions should I take?

Always wear a welding helmet with proper shade lens, flame-resistant gloves, and long sleeves. Work in a well-ventilated area to avoid inhaling fumes. Keep a fire extinguisher nearby. Remove flammable materials from the work area. Never weld on containers that held combustible materials. For comfortable seating during prep work, an nightstand can double as a small side table for your tools and safety gear.
