Splicing Wires: A Deep Dive for Safe DIY Electrical Connections 2026

Properly splicing wires is a fundamental skill for any DIY enthusiast, but it's one that demands respect. Getting it wrong can lead to overheating, short circuits, or even leaving fixtures live when the switch is off. This guide covers the essential rules and the best tools for the job, ensuring your next project is both safe and professional.

Essential Safety Rules Before You Start Splicing

Before you even touch a wire, you must cut the power. This means switching off the main breaker for the circuit you're working on or unplugging the device entirely. Always use tools with proper insulation, like those found in a quality home improvement kit. If your system is zoned, a voltage tester or phase detector is invaluable to confirm you've isolated the correct area.

When stripping the insulation from conductors, be extremely careful not to nick the copper wire underneath. Even a small cut reduces the wire's cross-section, which increases resistance. This resistance causes the wire to heat up under load, significantly raising the risk of a short circuit or fire.

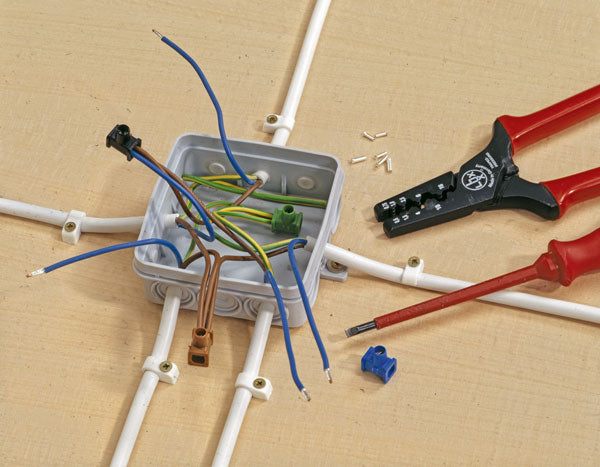

Why Use Wire Connectors (Cappellotti) for Joining Cables?

For joining multiple cables, modern wire connectors (often called 'cappellotti') are vastly superior to older 'mammut' blocks. They are safer, more compact, and provide a more secure connection. These connectors feature a brass terminal where a robust ring receives the twisted wires. A screw on the side of the ring compresses the bundle, creating a solid, unified connection. The entire assembly is encased in an insulating shell.

When using these connectors, ensure the conductors' own insulation extends right up to the brass ring, with only the bare copper inside the terminal. This prevents accidental contact. You can find a wide variety of these essential supplies in our home improvement collection.

Choosing the Right Size Connector

Wire connectors come in different sizes. Choosing the correct one is crucial. It should allow the wire bundle to fit snugly inside the brass ring without being too loose. A loose fit means the screw won't clamp down properly, leading to a poor connection that can arc and overheat.

Using Connectors with Removable Insulation

Some advanced wire connectors feature a removable insulating shell. This design is particularly user-friendly. First, you insert the twisted wire bundle into the brass terminal and tighten the screw securely. Then, you simply screw the plastic insulating shell over the top. This two-step process ensures a perfect connection every time and is a great option for complex wiring projects.

For organizing your workspace during such tasks, consider a sturdy work surface to keep your tools and components tidy.

Frequently Asked Questions (FAQ)

What is the difference between a wire connector and a terminal block?

Wire connectors (cappellotti) are generally more compact and provide a more secure, insulated connection for joining multiple wires. Terminal blocks (mammut) are bulkier and often used in junction boxes where connections might need to be changed more frequently. For permanent, safe splices, wire connectors are the preferred choice.

Can I use electrical tape instead of a wire connector?

No, electrical tape should never be used as the primary method for splicing wires. It can unravel over time, especially with temperature changes, leading to exposed conductors and a serious fire hazard. Always use a proper mechanical connector like a wire nut or a screw-type connector.

How do I know if my wire splice is secure?

A secure splice will feel solid. After tightening the screw on a wire connector, give the wires a gentle tug. They should not pull out. The insulation on the wires should also be visible right at the edge of the connector, with no bare copper showing outside the terminal.

What tools do I need for splicing wires?

You'll need a quality wire stripper, a voltage tester, and the appropriate wire connectors. A good set of insulated screwdrivers is also essential. You can find all of these and more in our home improvement section.

Is it safe to splice wires in a wall?

Yes, but all splices must be contained within an approved electrical junction box that remains accessible. You cannot bury a splice inside a wall without a box. The box must be covered with a blank faceplate. This is a critical safety and code requirement.
