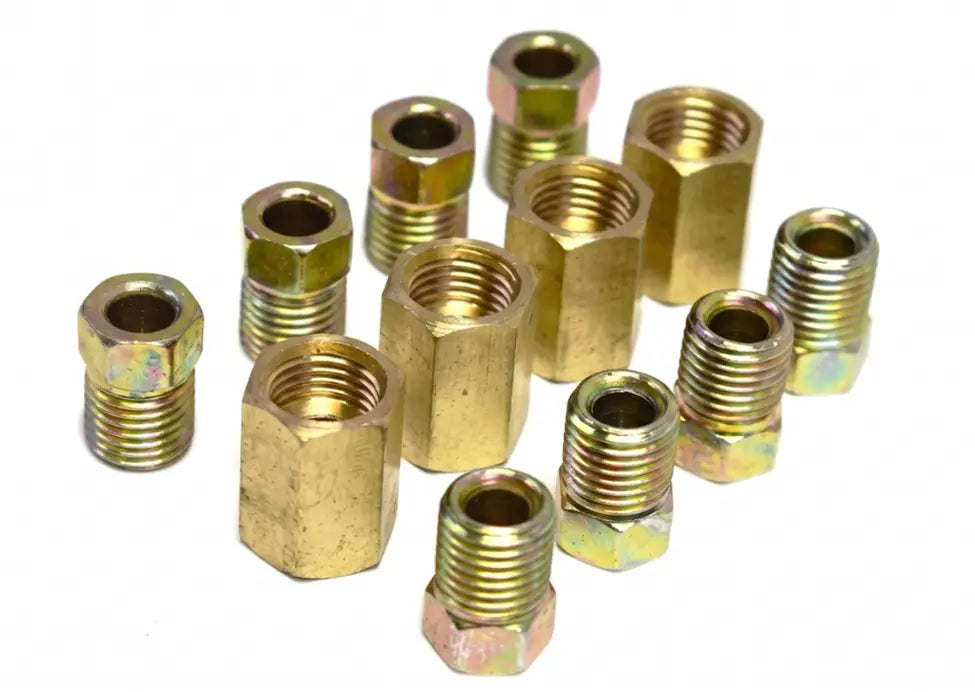

Brass Brake Line Fittings Standards Explained for 2026 Made Simple 2026

Brass brake line fittings standards explained in plain terms: this guide walks you through the dimensions, thread types, flare seats and connection rules that keep hydraulic brakes sealed and safe. Get these details wrong and you risk leaks, spongy pedals or a part that simply will not fit.

I break down the common standards you will meet, from SAE to DIN and ISO, and show why fittings that look alike are often not interchangeable. You will also find a practical checklist for identifying the right fitting before you order anything.

Whether you are replacing a corroded brass fitting or building a line from scratch, knowing the standard behind the part saves time, money and a dangerous guess.

Common Brake Line Fitting Standards

SAE Brake Line Fittings

SAE is an automotive tube fitting standard published by SAE International. It provides general and dimensional specifications for automotive tube fittings. It’s widely used in automotive hydraulic brake systems.

What does the SAE standard define?

Common characteristics

• Inch-based thread systems are commonly used.
• Commonly associated with 45° double (inverted) flare brake connections.
• Used with steel brake tubing in many North American vehicles.
• Intended for hydraulic brake line connections

 Typical applications

• Passenger vehicles
• Light trucks
• Automotive hydraulic brake systems
• Brake tube connections
• Replacement brake lines

 Matching the thread alone is not enough. Your flare seat and fitting dimensions must match. This applies to SAE brake line fittings and adapters, as mixing incompatible fittings may result in poor sealing and brake fluid leaks.

DIN is the German standards organization, and ISO is the international standards organization. Modern automotive brake systems commonly use ISO metric brake tube connections. Many DIN brake fitting designs are harmonized with ISO standards.

DIN and ISO are standards organizations that publish and maintain technical standards. They are often mentioned together because many DIN standards have been harmonized with corresponding ISO standards for international use.

Common Characteristics

Typical Applications

• European passenger vehicles
• Many modern imported vehicles
• Automotive hydraulic brake systems
• Replacement brake lines using metric fittings

 Key Differences Between SAE and DIN/ISO Brake Line Fittings

What I Check Before Trusting a Brass Fitting

When I buy brass fittings, I never trust the label alone. I keep a thread pitch gauge and a cheap caliper in the drawer, measure the male thread and the flare seat angle, then compare both against the standard the car maker lists. A fitting that threads in by hand but seats at the wrong angle will weep under pressure, and brass is soft enough that over-tightening hides the problem until it fails.

I also pressure-test every new joint before the car moves, and I log the standard and size in a notebook so the next repair is quick. That discipline matters as much as the planning behind how to plan a large wedding for 100 guests, where small details decide the outcome. My rule is simple: if the seat does not match, the fitting does not go on, no matter how close the threads look. I would rather spend ten minutes checking a Roborock Qrevo 2 Pro's must-have features for pet owners than guess at a brake joint, and the same care applies here.

For the wider picture, I also keep notes on Sleeping Minutes Less, Beet Salmorejo Recipe and Aquafaba Recipe; and Grieving Elephant Carrying and Bica Gallega Recipe.

Are SAE, DIN, and ISO Brake Line Fittings Interchangeable?

No. Brake line fittings manufactured to SAE, DIN, and ISO standards are not generally interchangeable. They should only be connected when the thread, flare seat, and fitting specifications are compatible. Matching the thread alone does not guarantee a proper seal.

For a leak-free connection depends on multiple factors,

When can different standards be used?

Not directly interchangeable. A system may contain different fitting standards only when each individual connection uses compatible mating components. Brake-system-compatible brake line adapter fittings and brake line union may be used where appropriate.

Common mistakes while interchanging, matching only the thread, ignoring the flare seat, assuming all metric fittings are identical, and using the wrong replacement fitting.

The flare seat creates the hydraulic seal. Incorrectly matched fittings can cause leakage and brake system failure. Always replace fittings with components that meet the required specifications.

How to Identify the Correct Brake Line Fitting

The correct brake line fitting cannot be identified using a single specification. You have to check several specifications before selecting a replacement fitting.

 Common identification mistakes

• Measuring only the thread diameter.
• Ignoring thread pitch.
• Confusing SAE double flare with ISO bubble flare.
• Measuring tube inside diameter instead of outside diameter.
• Assuming all metric fittings are identical.

Before Ordering

• Use a thread gauge and caliper when possible.
• Compare the replacement fitting with the original fitting.
• If the fitting cannot be identified confidently, refer to the vehicle service manual before ordering.

Brake Line Fitting Selection Checklist

Before replacing a brake line fitting, verify the following specifications to ensure compatibility with your brake system.

• Thread standard (SAE or Metric)
• Thread size
• Thread pitch
• Flare type (Double or ISO Bubble)
• Flare seat compatibility
• Tube outside diameter (OD)
• Fitting dimensions
• Vehicle specification or service manual
• Original fitting for comparison

Q1. Can metric and SAE brake fittings have the same thread size?

Yes, some metric and SAE brake fittings may appear similar in size, but they are not necessarily compatible. Always verify the thread standard, thread pitch, flare type, and flare seat before connecting brake fittings. Matching the thread alone does not ensure a proper seal.

Q2. Why does a brake fitting leak even when the thread fits?

A brake fitting may leak if the flare type, flare seat, thread pitch, and fitting dimensions do not match. Brake line fittings seal at the flare seat, not at the threads, so a fitting with matching threads can still leak if the sealing surfaces are incompatible.

Q3. Is ISO bubble flare the same as DIN flare?

In automotive brake systems, the terms ISO bubble flare and DIN flare are commonly used to describe the same style of brake line flare. Modern metric brake systems generally use the ISO bubble flare design, while the term “DIN flare” remains common because of its historical use.

Q4: Can I replace a DIN fitting with an SAE fitting?

Not directly. A DIN brake fitting should only be replaced with an SAE fitting if the thread, flare type, flare seat, and all mating components are compatible. In some applications, a brake-system-compatible adapter may be used, but the complete connection must meet the required specifications for safe sealing.
