DIY Awning: Build a Lightweight Plexiglass Canopy for Your Balcony 2026

Sometimes roofs just don't offer enough protection for your home's windows and doors. In this case, a small balcony made building a DIY awning especially useful to keep wind-driven rain at bay. With these goals in mind, you can design and build a DIY awning that meets three specific needs: it should be slender so it doesn't overwhelm the small balcony space, yet sturdy enough to handle snow loads; it must not reduce the already limited natural light indoors; and it should blend with the building's aesthetic style.

For the last point, the choice fell on a wooden structure that echoes the main roof's beams. For brightness, a plexiglass panel was selected, which also keeps weight down, making it more than sufficient to support a framework of small-section joists.

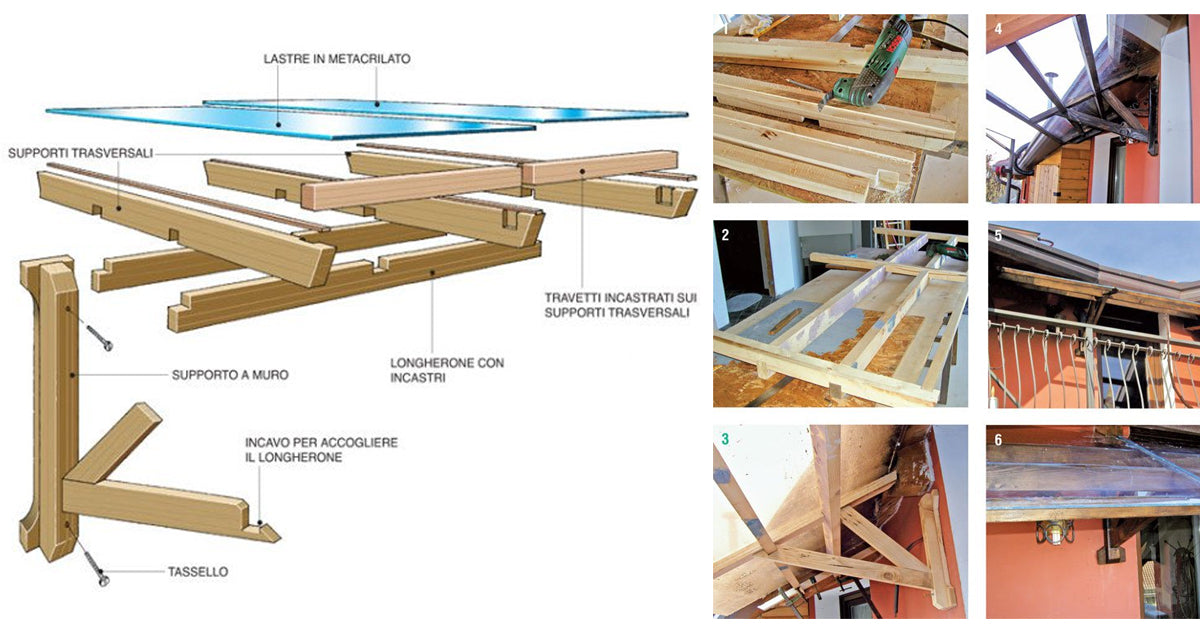

DIY Awning – The Project

The joists—many reclaimed from dismantled pallets—are planed, cut, and then prepared for joinery using a highly effective oscillating saw. The part of the awning that forms the sloped roof should be built first; assembly is easier and more precise if done on a flat work surface.

The sloped roof is supported by struts that fit into a vertical support fixed to the wall with window frame anchors. The structure is clamped at the sides with bar clamps to check alignment, and then permanently fastened to the side beams with self-tapping screws, after drilling and countersinking.

DIY Awning – The Construction

To match the exposed beams of the main roof, the small awning's joists are darkened with two coats of dark walnut wood stain, with a light pass of fine sandpaper in between—applied only to the struts and the main beams.

Materials & Tools Needed

• Wood beams (reclaimed pallets or new lumber)
• Plexiglass panels for the roof covering
• Self-tapping screws and wall anchors
• Wood stain (dark walnut)
• Oscillating saw for precise cuts
• Bar clamps for alignment
• Drill with countersink bit

Step-by-Step Guide

1. Plan and cut all wood beams to size. Reclaim pallet wood if desired for a rustic look.
2. Assemble the sloped roof frame on a flat surface. Use an oscillating saw for clean joints.
3. Fix the vertical support to the wall using heavy-duty anchors.
4. Attach struts to the vertical support and the roof frame.
5. Clamp the structure at the sides, check alignment, then secure with self-tapping screws.
6. Apply two coats of dark walnut stain to the visible wood, sanding lightly between coats.
7. Install plexiglass panels on the roof frame, ensuring proper sealing against rain.

Frequently Asked Questions

Can I build this awning without power tools?

Yes, but it will take longer and require more effort. A hand saw and manual clamps can work, though power tools like an oscillating saw make the job much easier and more precise.

How do I ensure the awning is waterproof?

Use a high-quality sealant around the plexiglass edges and where the frame meets the wall. Overlap the panels slightly to direct water runoff.

What size should the awning be?

Measure your balcony or window area. A typical DIY awning extends 3–5 feet from the wall and spans the width of the opening. Adjust based on your specific needs and local snow loads.

Can I use recycled materials?

Absolutely! This project uses reclaimed pallet wood for the joists. You can also source used plexiglass or other recycled materials to keep costs low.

Do I need a permit to build this?

Check with your local building authority. Small awnings often don't require permits, but it's best to verify, especially if your balcony is part of a shared building or historic district.

Enhance Your Outdoor Space

Once your DIY awning is complete, consider adding comfortable patio furniture underneath to create a cozy seating area. String lights or lanterns can make the space inviting in the evening. For extra protection from the elements, a patio heater extends usability into cooler months. Don't forget decorative accents like planters or outdoor rugs to personalize the space.
