Hyper-NA is the name ASML and its optical partner Zeiss have given to the next generation of extreme ultraviolet (EUV) lithography, a technology that could eventually succeed the High-NA EUV machines now reaching chip factories. The development was detailed in a peer-reviewed scientific study reported by Reuters on October 8, and it signals that the industry is already looking beyond the tools that are only beginning to be deployed.
For chipmakers, the announcement is less about a product launch and more about a research direction. ASML has started development work, but the company has not committed to building commercial Hyper-NA systems. Analysts expect the technology could be ready in roughly ten years, a timeline that reflects the enormous technical and financial challenges involved.
What Hyper-NA Means for EUV Lithography
NA stands for numerical aperture, a measure of how much light an optical system can collect and focus. Higher NA allows a lithography machine to print smaller features, which translates into more transistors per chip and better performance. High-NA EUV, with an NA of 0.55, is the current frontier; Hyper-NA would push the number even higher.
The exact target has not been publicly confirmed, but the goal is clear: extend Moore's Law by enabling chip patterns that are finer than what High-NA can produce. That would help manufacturers continue shrinking logic chips and memory beyond the current roadmap.
Why High-NA Is Only the Beginning

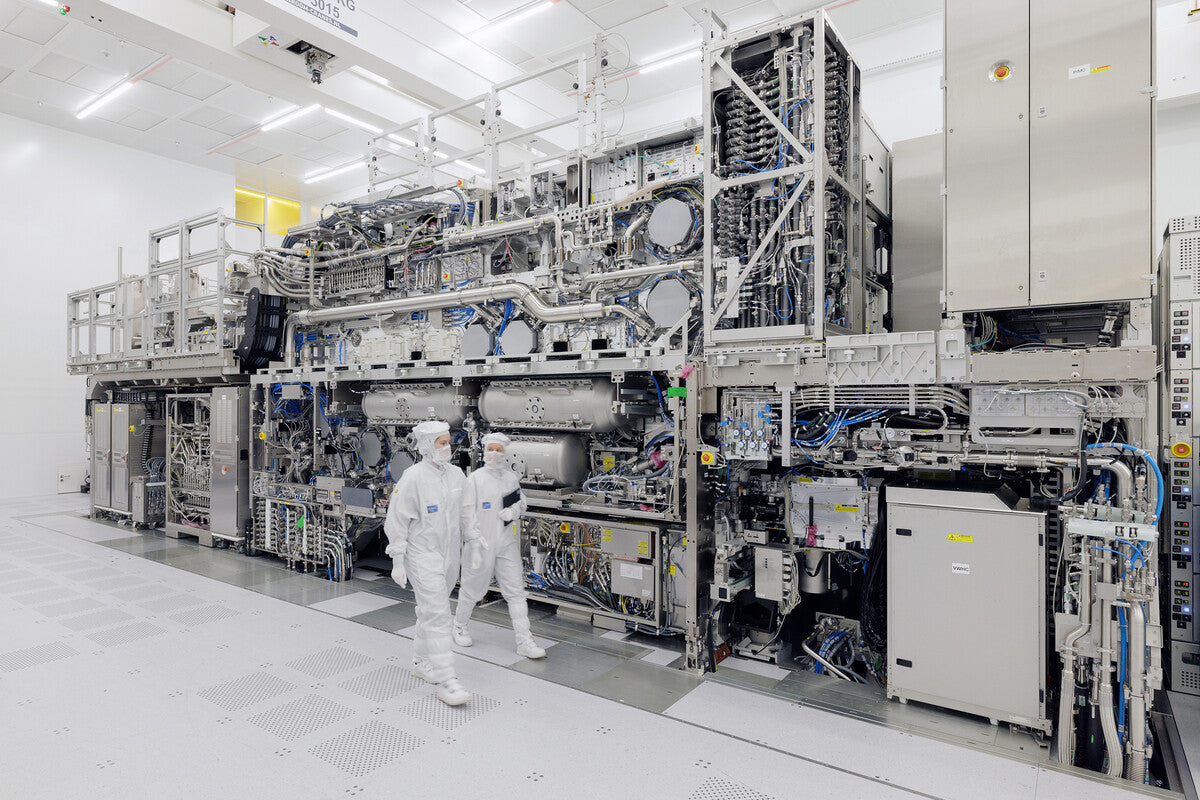

High-NA EUV machines are just now arriving at factories. They are massive, complex, and expensive, and chipmakers are still learning how to integrate them into high-volume manufacturing. The transition from development to production is slow and capital-intensive.
Even as High-NA matures, researchers must look ahead. The semiconductor industry operates on long horizons: a new lithography generation can take a decade or more to develop. Starting Hyper-NA research now ensures that when High-NA reaches its limits, a successor will be ready.
- Hyper-NA is the proposed next step after High-NA EUV, aiming for even finer chip features.
- ASML and Zeiss are researching the technology, but no commercial product has been announced.
- The timeline is roughly ten years, reflecting the complexity of EUV systems.
- High-NA EUV is still in early deployment, so Hyper-NA is a long-term bet.
- Success depends on advances in optics, light sources, and manufacturing economics.
Technical Hurdles on the Road to Hyper-NA
Increasing numerical aperture is not simply a matter of scaling up existing designs. It requires new optical materials, precision manufacturing at atomic levels, and possibly new light sources. Zeiss, which makes the mirrors for EUV systems, would need to produce optics with unprecedented accuracy.
Another challenge is the mask and resist infrastructure. Every change in lithography wavelength or NA demands corresponding advances in photoresists and mask technology. The entire ecosystem must evolve together, which is why timelines are measured in years, not months.
What This Means for Chipmakers and Investors
For chipmakers like TSMC, Samsung, and Intel, Hyper-NA represents the next capital investment cycle. The companies that adopt it early could gain a manufacturing edge, but the costs will be staggering. ASML's monopoly on EUV lithography gives it significant pricing power, and Hyper-NA would likely reinforce that position. The background to this story is set out in Science: latest articles. A closer look at the same subject appears in ASML and Zeiss Name Hyper-NA as Next EUV Lithography Step.
Investors should watch for ASML's official commitments and any updates on High-NA adoption rates. The pace of High-NA rollout will inform how quickly Hyper-NA becomes necessary. If High-NA hits technical or economic roadblocks, the timeline for Hyper-NA could shift. A related thread runs through Amazon's Foldable Prefab House: Bedroom, Kitchen, Bath for €6,299. Earlier coverage in The 24-Hour Day Is a Lie: Why Earth's Rotation Isn't Exactly 24 Hours shows how the argument developed.
| Technology | Numerical Aperture | Status | Expected Timeline |
|---|---|---|---|
| EUV (standard) | 0.33 | In high-volume manufacturing | Current |
| High-NA EUV | 0.55 | Early deployment | 2025–2030 |
| Hyper-NA EUV | Higher than 0.55 (target TBD) | Research and development | ~10 years |
FAQ
What is Hyper-NA?
Hyper-NA is a proposed next-generation EUV lithography technology with a higher numerical aperture than High-NA. It aims to print smaller features for advanced semiconductors. ASML and Zeiss are researching it, but no commercial product exists yet.
When will Hyper-NA be available?
According to the reported study, Hyper-NA could be ready in about ten years. However, ASML has not committed to commercial manufacturing, so the timeline remains uncertain and depends on technical progress and market demand.
How does Hyper-NA differ from High-NA?
High-NA EUV has a numerical aperture of 0.55 and is currently being deployed. Hyper-NA would increase the NA further, enabling finer resolution. The exact target NA has not been disclosed, but it would require new optics and possibly new light sources.
Why is ASML developing Hyper-NA now?
The semiconductor industry requires long lead times for new lithography technologies. By starting research now, ASML and Zeiss aim to have a successor ready when High-NA reaches its limits. This ensures continuous progress in chip miniaturization.
