DIY Marking Gauge: How to Build Your Own Woodworking Tool 2026

Also known as a scratch gauge or truschino fai da te, this essential woodworking tool precisely transfers a measurement onto a board along its full length or in part. While commercial versions come complete with a graduated rod, there's a unique pleasure in building and customizing your own in terms of shape and construction details. Whether you are crafting tenons, mortises, half-lap joints, rebates, or markings far from the edges, a DIY marking gauge is indispensable.

The tool consists of a wooden block, tightened by one or more bolts, through which a strip fitted with a marking point slides. In commercial versions, this strip often features a millimeter scale for immediate reading of the measurement to be marked. With a DIY marking gauge, you first need to measure the distance on the workpiece using a ruler and square, then lock the marking point at that same measurement.

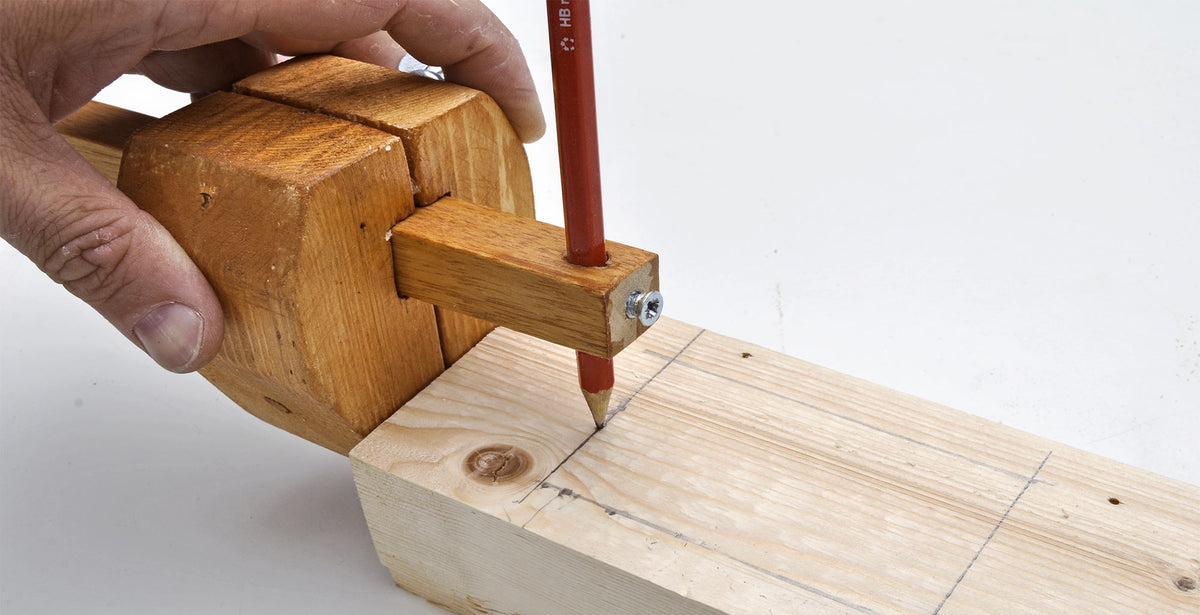

Using a wood marking gauge is simple and intuitive: lock the marking point at the desired measurement, grip the wooden block firmly in your hand, and slide the tool's body against the workpiece—moving it back and forth if needed for a clearer line.

What a Carpenter's Marking Gauge Looks Like

In some models, the scratching point is replaced by a disc blade or a writing point inserted into a mechanical pencil. In mechanical workshops, a special marking gauge is used for height marking, consisting of a flat base with a graduated vertical rod equipped with a marking point. The base acts as a reference surface, and the sliding rod transfers the marking to the desired height. There are also gauges made with a block holding two sliding strips placed at 90° for complex markings.

To get started on your own project, you'll need some basic home improvement tools and materials to ensure precision.

Step-by-Step DIY Marking Gauge

To build a carpenter's scratch gauge, you need a block of hardwood with a compact, elastic fiber. Its faces must be precisely squared and well-sanded. You'll also need a threaded rod cut to size in two pieces, some threaded inserts, and wing nuts.

1. Prepare the block: Mark the center on the block of wood and drill a hole through its length for the sliding rod. Then, drill a perpendicular hole for the locking bolt.
2. Install the hardware: Insert the threaded inserts into the perpendicular hole. Cut the threaded rod into two pieces—one for the sliding rod and one for the locking mechanism.
3. Add the marking point: Insert a sharp nail or a piece of hardened steel wire into one end of the sliding rod. Secure it with a set screw or epoxy.
4. Assemble and test: Slide the rod through the block, lock it with the wing nut, and test it on a scrap piece of wood. Adjust the fit as needed for smooth but firm movement.

For the hardwood block and other supplies, check out our selection of garden supplies—many of the same woods and tools work perfectly for both projects.

Tips for Customizing Your Marking Gauge

• Shape the block: Carve the block to fit your hand comfortably. An ergonomic grip reduces fatigue during long marking sessions.
• Add a scale: Glue a small ruler or printed paper scale onto the sliding rod for quicker measurements.
• Use brass hardware: Brass won't rust and adds a beautiful contrast to the wood. You can find brass rods and fittings in our home improvement collection.
• Make a double gauge: Add a second sliding rod at a 90° angle for marking both sides of a joint simultaneously.

Frequently Asked Questions

What is the difference between a marking gauge and a cutting gauge?

A marking gauge uses a sharp point to scratch a line, while a cutting gauge uses a small knife blade to cut the wood fibers for a cleaner line, especially when working across the grain.

Can I use a marking gauge on plywood or MDF?

Yes, but the point may leave a rough edge on softer materials. For plywood and MDF, a cutting gauge or a fine pencil line is often preferred.

What type of wood is best for a DIY marking gauge?

Hardwoods like beech, oak, maple, or walnut are ideal because they are dense, stable, and wear-resistant. You can find suitable wood pieces in our sheds collection for storing your lumber.

How do I sharpen the marking point?

Use a fine file or sharpening stone to maintain a sharp, conical point. A dull point will tear the wood fibers instead of cutting them cleanly.

Can I buy a commercial marking gauge instead?

Absolutely! While building your own is rewarding, commercial gauges offer convenience and precision. Browse our desks and work surfaces for a sturdy workspace, and consider adding a quality marking gauge to your home improvement toolkit.

Conclusion

Building your own DIY marking gauge is a satisfying project that enhances your woodworking precision and creativity. With just a few materials and some basic home improvement tools, you can create a custom tool that fits your hand and workflow perfectly. Whether you're a seasoned carpenter or a weekend hobbyist, this project is a great way to improve your craft.
