XLAM Panel System: Build Energy-Efficient Homes with Cross-Laminated Timber 2026

The physical and biological properties of wood, combined with the latest prefabrication technologies, are paving the way for constructing buildings that meet the highest energy classes with fixed costs, superior comfort, and extensive customization options. Let's explore the XLAM panel system.

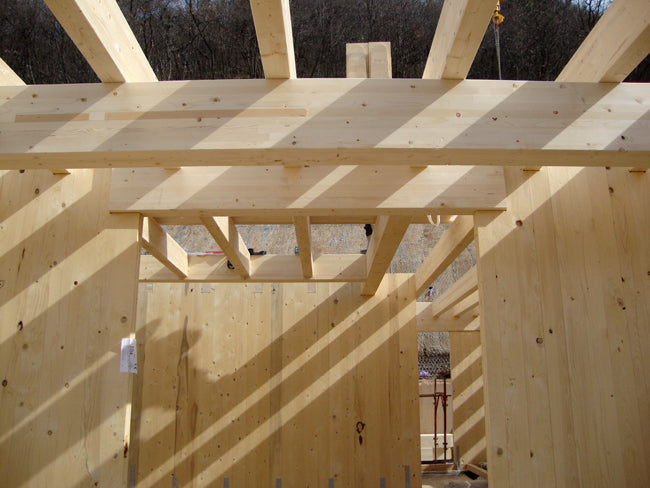

What is the XLAM Panel System?

The term XLAM refers to the nature of the panels, which are made from solid wood boards crossed both longitudinally and transversely. The wood can be fir, larch, or pine, and the boards are bonded with a special formaldehyde-free polyurethane adhesive, ensuring high dimensional stability and excellent load distribution properties. With a specific weight of 500 kg/m³ (compared to 2,500 for reinforced concrete and 7,850 for steel), it is a valid solution for extensions and vertical additions.

Construction and Sustainability

XLAM panels are made from wood sourced from certified, responsibly managed forests. They consist of at least three layers of boards glued and crossed together. The highly engineered production process ensures rapid and precise assembly, completely dry, using mechanical connections. The link between the wooden structure and the reinforced concrete foundations is achieved through special plates and threaded steel bars or similar systems. For your own building projects, explore our home improvement collection for essential tools and materials.

Key Benefits of XLAM Panels

• Thinner Walls, More Space: Reduced thickness provides a significant benefit in terms of usable floor area.
• Superior Insulation: Thermal insulation is six times higher than solid brick and fifteen times higher than cement conglomerates.
• Large Panel Sizes: Maximum panel dimensions are 13.5 x 3.5 meters.
• Varied Thicknesses: Overall thickness varies by layer count: 57–120 mm (3 layers), 85–200 mm (5 layers), 189–252 mm (7 layers), and 297 mm (9 layers). The number of layers is always odd to counterbalance wood movement; as the number of layers increases, so does the panel's load capacity and stability.

Perfect for Modern Interiors

The clean, natural aesthetic of XLAM panels makes them ideal for open-plan living. Pair this structural choice with stylish sofas and a functional kitchen island to create a warm, contemporary home. For the dining area, consider our range of dining tables that complement the wood's natural tones.

Design Flexibility and Customization

Because the walls are pre-prepared, you have immense freedom in designing interiors. The panels can be left exposed for a rustic look or finished with plasterboard. To enhance your rooms, browse our selection of wall decor and lighting fixtures that highlight the wood grain. Complete the look with rugs and curtains to add texture and warmth.

Outdoor Living with XLAM

XLAM is also excellent for extensions like garden rooms or studios. Extend your living space outdoors with a pergola or gazebo, and furnish the area with outdoor patio furniture. Don't forget outdoor lighting to create ambiance for evening gatherings.

Frequently Asked Questions (FAQ)

1. Is XLAM suitable for multi-story buildings?

Yes, XLAM panels are engineered for multi-story construction. Their high load-bearing capacity and stability make them suitable for buildings up to several stories high.

2. How does XLAM compare to traditional brick and concrete?

XLAM is significantly lighter, offers superior thermal insulation, and allows for faster, drier construction. It also has a much lower carbon footprint when sourced from sustainable forests.

3. Can XLAM panels be used for renovations and extensions?

Absolutely. The light weight of XLAM (500 kg/m³) makes it ideal for adding extra floors or extending existing structures without overloading the foundations.

4. What is the fire resistance of XLAM panels?

Massive timber like XLAM chars on the outside when exposed to fire, which protects the inner core and maintains structural integrity for a predictable period, often meeting strict fire codes.

5. How do I maintain an XLAM structure?

Maintenance is minimal. If left exposed, the wood may require periodic oiling or sealing. For interior walls, simple dusting and occasional cleaning are sufficient. For your maintenance needs, check our garden supplies for outdoor care products.
