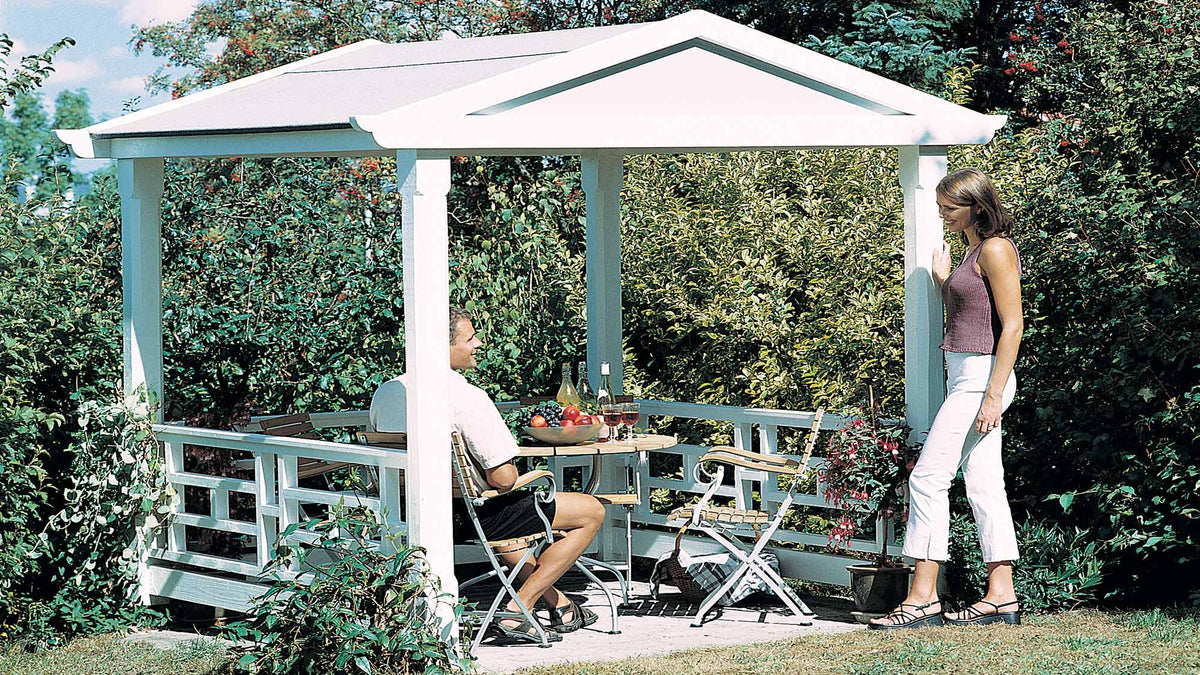

DIY Wooden Gazebo: Step-by-Step Construction Guide 2026

Building this DIY wooden gazebo doesn’t require complex joinery, just precision: it’s remarkably sturdy thanks to the generous cross-section of the load-bearing elements. A touch of classical Greek style in the pediments, some Chinese-inspired geometry in the railings, and rock-solid construction define this project. In a sheltered spot, its own weight keeps it stable; otherwise, anchor it to well-buried concrete plinths. Built in sections that screw together—directly or with galvanized hardware—you can prep everything in the workshop and assemble it in half a day.

The four pillars, made from vacuum-pressure-treated wood (125×125 mm), are visually lightened by chamfered edges that leave the base and capital intact. To match the roof slope, the top of each capital is cut at an angle, dropping 40 mm from the inner to the outer edge.

Let’s dive into the details of building your own wooden gazebo.

Materials & Tools

For the structure: First-choice spruce or pine, pressure-treated: 4 pillars (A) 125x125x2020 mm; 2 pediment bases (B) 43x120x2700 mm; 3 crossbeams (D) 34x120x1950 mm; 4 pediment rafters (C) 43x91x1320 mm; 2 crossbeams (E) 21x120x2200 mm.

For the railings: Battens 38×57 mm: 12 pieces (F) 669 mm; 18 (G) 460 mm; 15 (H) 128 mm; 6 (J) 1950 mm; 3 handrails (O) 15x68x1950 mm.

For the roof: 4 battens (K) 38x57x1050 mm; 6 battens (L) 38x57x2094 mm; 2 battens (M) 15x43x2200 mm; 3 battens (N) triangular section 21x21x1270 mm. 15 mm marine plywood: pediment panels (P) 420×1950 mm; 2 roof panels (Q) 1220×2200 mm. About 7 m² of waterproof felt (R) or similar; 6 U-brackets with 43 mm wings; exterior glue; nails; screws; saturating oil; protective wood stain; paint or varnish; foundation plinths (S).

Step-by-Step Construction

Building the Sides

For a stable, uniform railing, each joint needs two 5×80 mm screws. Start each railing with the two horizontal H pieces, closing one end with a vertical F piece (drill pilot holes for the screws). Add the second vertical F at the other end, then fill the middle with the remaining F pieces, spacing them evenly. Attach the G pieces vertically between the H pieces at each F joint, and secure the J pieces along the top and bottom edges. Finish with the handrail O on top.

Repeat for the other two sides. For a cohesive look, consider coordinating your outdoor decor with the gazebo’s style.

The Pediments

Cut the top ends of the two pillars that will support the pediment at a 10° angle. On a flat surface, lay out the pediment base B and the two rafters C, forming a triangle. Secure the rafters to the base with U-brackets and screws. Attach the pediment panel P to the back of the triangle using glue and nails. Install the crossbeams D and E horizontally between the pillars at the desired height.

To enhance the space, you might add outdoor lighting for evening ambiance.

Solid Assembly

Stand the two side railings upright and connect them with the front and back railings using crossbeams and screws. Lift the pediment assembly onto the pillars and secure it with brackets. Make sure everything is level and square before tightening fully. For a comfortable seating area inside, browse outdoor patio furniture to furnish your new gazebo.

The Roof

Attach the K battens across the top of the pediment as roof supports. Lay the L battens perpendicular to the K battens, spacing them evenly. Fix the M battens along the roof edges. Use the triangular N battens at the ridge for a clean finish. Cover the entire roof structure with the marine plywood panels Q, overlapping the edges. Staple or nail the waterproof felt R over the plywood, starting from the bottom and working up. Trim any excess felt.

To complete the look, consider adding curtains for privacy or rugs to define the floor area.

FAQ

How long does it take to build this gazebo?

Preparing the sections in a workshop takes a weekend; final assembly on-site takes about half a day with two people.

Do I need a building permit?

Check with your local municipality. Many small, non-permanent structures under a certain size don’t require a permit, but regulations vary.

What wood is best for a DIY gazebo?

Pressure-treated pine or spruce is durable and affordable. For a premium option, consider cedar or redwood. You can find home improvement supplies to treat and maintain the wood.

How do I anchor the gazebo to the ground?

Use concrete plinths buried at least 12 inches deep, with metal brackets embedded to bolt the pillars. Alternatively, use heavy-duty ground screws.

Can I customize the size?

Yes, scale the dimensions proportionally. Adjust the number of railing balusters and roof battens accordingly. For larger projects, you might need sheds or greenhouses for storing tools.

Finishing Touches

Sand all exposed wood and apply a protective stain or paint. Use a saturating oil for a natural look, or a solid-color stain for more coverage. Reapply every 2–3 years to maintain protection. To make the space truly inviting, add outdoor heating for cooler evenings and a BBQ grill for outdoor cooking.

For a complete outdoor living area, consider pergolas or gazebos as complementary structures. Don’t forget garden supplies to landscape around your new gazebo.

Enjoy your handcrafted wooden gazebo—a perfect spot for relaxation and entertaining.
