How to Build a Wrought Iron Log Rack: DIY Fireplace Carrier 2026

Building a beautiful wrought iron log rack is a fairly simple DIY activity that doesn't require special metalworking skills. This elegant firewood holder solves two common problems: carrying logs from the woodshed into the house and keeping your floors clean from bark, splinters, and dust. With this DIY wrought iron log rack, you can transport about 10-15 kg of logs up to 30 cm long. If your firewood is shorter or longer, it's easy to adapt the sling and tray.

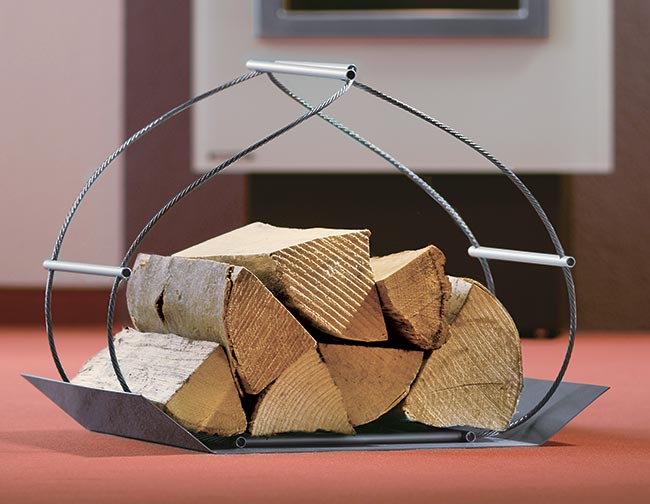

While pellet stoves and fireplaces are becoming more popular, traditional wood-burning models remain the most common—they not only radiate warmth but also delight the eye. Eco-friendly fuel, wood comes with two annoyances: having to bring enough inside for at least half a day, and the mess of bark chips and dust that fall from the logs. Both problems are solved by this original DIY wrought iron log rack, made of two separate parts: a steel (or copper or other metal) tray that stays indoors—simple to build and easy to clean—and a sling for carrying logs from the woodshed into the house.

The tray is a rectangular sheet mounted on self-adhesive felt pads or rubber bumpers. The sling is a flexible structure of steel cable stiffened by a base frame and crossbars made of aluminum tubing, two of which serve as handles.

What You Need to Build a Wrought Iron Log Rack

• Metal sheet: 1.5 × 350 × 500 mm
• Approximately 1800 mm of metal tubing Ø 10 mm
• About 3 meters of steel cable Ø 5 mm
• 4 self-adhesive felt pads or rubber bumpers

How to Build a Wrought Iron Log Rack

Step 1: Prepare the Metal Tray

If you don't have a sheet metal bender, cut two pieces of plywood as wide as the tray and half a palm shorter. From both, cut a 90 mm wide strip—one with a 90° cut and the other with a 20° cut. Clamp the metal sheet between the plywood pieces and bend it over the edge of a workbench to form the tray's sides. For a cleaner finish, consider using home improvement tools like a metal brake or sturdy clamps.

Step 2: Create the Sling Frame

Cut the metal tubing into four pieces: two for the base frame (about 450 mm each) and two for the handles (about 600 mm each). Using a pipe bender or a jig, curve the handle pieces into a U-shape. Drill small holes at the ends of each tube to thread the steel cable through. For precise drilling, a quality drill and metal bits will make the job easier.

Step 3: Assemble the Steel Cable Structure

Thread the steel cable through the holes in the tubing, forming a flexible loop. The cable should pass through the base frame tubes and the handle tubes, creating a sling that can hold logs securely. Use cable clamps or crimps to fasten the ends. If you need extra cable or hardware, check out the home improvement collection for supplies.

Step 4: Attach the Felt Pads

Stick the self-adhesive felt pads or rubber bumpers to the bottom corners of the metal tray. This protects your floor from scratches and keeps the tray stable. For a more finished look, you might also add a small rug under the tray to catch any stray debris.

Using Your DIY Log Rack

In the woodshed, lay the sling flat on the ground or a table, pile the logs onto it, then close the sling by inserting the long handle between the cables of the short handle. Lift the handles to carry the logs indoors. Place the loaded sling onto the metal tray, then simply pull the handles to release the logs onto the tray. The tray catches any falling bark or dust, keeping your floor clean. Pair your log rack with outdoor patio furniture for a cozy firewood storage area near your fireplace or stove.

Tips for Customizing Your Log Rack

• Size: Adjust the dimensions of the tray and sling to fit your typical log length.
• Material: Use copper or brass for a more decorative tray—these metals patina beautifully over time.
• Handles: Wrap the handle tubes with leather or paracord for a better grip.
• Storage: When not in use, hang the sling on a hook and store the tray upright against the wall.

Frequently Asked Questions

Can I use this log rack for a fireplace or a wood stove?

Yes, this rack works perfectly for both fireplaces and wood stoves. The metal tray is heat-resistant and safe for indoor use. For additional firewood storage, consider a shed or garden supplies to keep your logs dry.

How much weight can the sling hold?

The steel cable and aluminum tubing design can comfortably support 10-15 kg of logs. For heavier loads, use thicker cable or reinforce the frame.

What if I don't have a metal bender?

You can use the plywood sandwich method described above, or take the metal sheet to a local workshop. For other DIY projects, a home improvement toolkit might include a simple bending brake.

Can I paint or finish the metal?

Absolutely. Use high-temperature spray paint for a durable finish, or apply a clear coat to preserve the natural metal look. For a rustic style, try a matte black finish that matches wall decor or lighting fixtures in your home.

Where should I place the tray?

Place the tray on a non-flammable surface near your fireplace or stove, at least 3 feet away from the heat source. It also makes a great accent piece next to sofas or rugs in a living room setup.
