Measuring and Marking: Essential DIY Techniques for Precision 2026

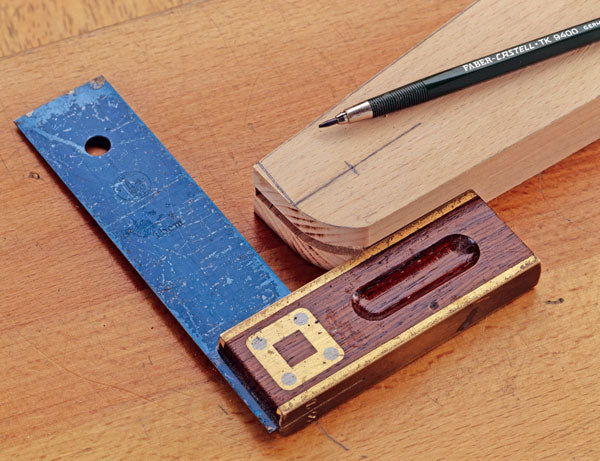

Before any cut, it's crucial to have a precise line to follow, especially when the piece needs to align with others in a construction. Simple yet appropriate tools are required for marking lines, perpendicularity, and angles. Measuring and marking are fundamental preliminary DIY operations. A folding rule and tape measure are very useful for linear measurement, but for marking, you need a straightedge; a fixed 90° square is indispensable for guaranteeing perfect squareness. For angles other than right angles, use a bevel square, a tool made of two segments joined at one end so they can assume and 'copy' any angle and be locked in that position, to transfer it identically to the work surface.

You also need a marking gauge to draw lines at a fixed distance from the edge of the surface, but that's not all: for a complete set, you'll need a compass to draw arcs and circles, a curved ruler for more complex curved shapes, and a good caliper to accurately measure thicknesses and external diameters with the large tips, internal diameters with the smaller tips, and the depth of holes or seats via the rod that protrudes from one end.

Using the Marking Gauge

This tool is very useful when you need to accurately measure a thickness or distance to transfer to another piece. It's fairly easy to make yourself: you need a wooden block with one or two holes, each of which you insert a graduated rod that has a needle or a hole for inserting a pencil at one end. A screw that passes through the block allows the rod to be locked.

Essential Tools for Precision Work

• Tape Measure & Folding Rule: For quick and accurate linear measurements on any project.
• Combination Square: Ensures perfect 90° angles and can also be used as a depth gauge.
• Bevel Square: Copies and transfers any angle, essential for complex joinery.
• Marking Gauge: Locks in a distance for repeatable, parallel lines along a workpiece.
• Compass & Caliper: For drawing circles and measuring precise internal/external dimensions.

For your next DIY project, consider upgrading your workspace with proper task lighting to see your marks clearly, or add a sturdy work surface for all your measuring and cutting tasks.

Similar DIY Projects

A DIY Iron Bench for Two That Can Also Be Placed Indoors

Outdoors - Bricoportale Staff - January 19, 2023. There are cuts, sharp bends, and wide-radius curves to make, but everything is simplified by the very small sections of the steel bars. This... Enhance your outdoor space with patio furniture or outdoor decor after your build.

DIY Pruning: Tips for Choosing the Chainsaw

Techniques - Bricoportale Staff - October 26, 2021. Autumn is the month... Keep your garden in top shape with garden supplies and storage sheds for your tools.

Frequently Asked Questions (FAQ)

What is the best tool for measuring a long distance?

A tape measure or a folding rule is best for long distances. For very precise work, a laser distance measurer can also be used.

How do I transfer an odd angle to my workpiece?

Use a bevel square. Loosen the lock, set the tool against the existing angle, tighten it, and then transfer that exact angle to your material.

What is a marking gauge used for?

A marking gauge is used to scribe a line parallel to a reference edge at a set distance. It's essential for joinery and ensuring consistent thicknesses.

Can I use a combination square for depth measurements?

Yes, many combination squares have a built-in depth gauge. Simply extend the ruler into the hole or recess and read the measurement at the edge of the head.
