Build a Plastic Bottle Raft: Eco-Friendly DIY Fun 2026

For healthy, eco-sustainable fun, let's build a plastic bottle raft. Long live recycling! Reuse and not just recycling: here's how to exploit the lightness and watertightness of a significant number of bottles destined, at best, to be shredded and melted down for a healthy dose of fun.

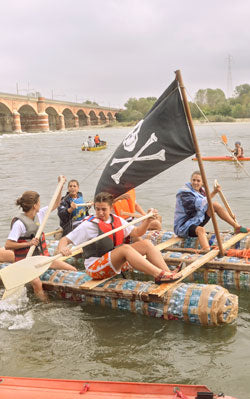

A randonnée on the Po River organized by the Agesci of Valenza and the Soms of Mugarone provided the occasion to gather about 120 enthusiasts on thirty-five boats, dinghies, canoes, and pirogues, three of which were made from mineral water bottles. The scouts of the Valenza 1 unit, coordinated by Ettore Scaglione, dedicated themselves to the DIY construction of these latter vessels, light and handmade, but also solid and capable of holding water without problems for all 10 kilometers of the river descent from Valenza to Mugarone.

To ensure the inflatable boats are safe, it is necessary to use only watertight and robust floats, preferably multiple ones: recycled mineral water bottles are ideal since the polyester they are made of is very resistant and the caps withstand pressures over 8 bar without issues. Then, the high number of elements—almost 600 for each raft—guarantees buoyancy even in case of impacts or damage. Grouped in clusters of 19 with packing tape, the bottles are inserted on three slats to maintain good alignment, but the solidity is entrusted to a fencing net covering that maintains cohesion between the individual elements. The support structure, which allows the crew to board, consists of long wooden beams and cross planks.

Bottles, Net, and Tape

Each basic element used to build the floats is made up of 19 mineral water bottles of 1.5 liters, tied in a hexagonal matrix with a cable tie. The bottles must be in good condition and with the cap tightly closed. Using packing tape, wrap the bottles at both ends of the element, pulling hard and layering generously. The elements are all identical except for the stern one, lined with a plastic bag to "close" the float, and the bow one, in which the bottles are staggered on two levels to form a point that can better cut through the water. The floats are formed by threading ten elements onto three wooden slats.

Assembly and Final Touches

Once the floats are ready, they are connected using a sturdy garden net or similar material to keep everything cohesive. The wooden frame is built from long beams and cross planks, creating a stable platform. For added comfort, consider adding a cushion or a simple seat to your raft. Don't forget to equip your raft with proper lighting for evening adventures, and maybe a small flag or decoration to personalize it.

Materials List

• Approximately 600 plastic bottles (1.5L, with caps)
• Packing tape
• Cable ties
• Fencing net or garden net
• Wooden slats (3 long pieces)
• Wooden beams and cross planks for the platform
• Plastic bag (for stern element)
• Optional: cushions, lights, decorations

Step-by-Step Guide

Step 1: Prepare the Bottles

Ensure all bottles are clean, dry, and in good condition. Tightly screw on the caps.

Step 2: Create the Hexagonal Elements

Group 19 bottles into a hexagonal shape. Use cable ties to secure them together. Then wrap packing tape tightly around both ends of the bundle.

Step 3: Build the Bow and Stern

For the stern element, line one bundle with a plastic bag. For the bow, stagger the bottles on two levels to create a pointed shape.

Step 4: Assemble the Floats

Thread ten elements onto three long wooden slats to form each float. Repeat to create multiple floats as needed.

Step 5: Connect the Floats

Use a garden net or fencing net to wrap and secure all floats together, ensuring cohesion.

Step 6: Build the Platform

Construct a wooden frame using long beams and cross planks. Place it on top of the floats and secure it firmly.

Step 7: Add Finishing Touches

Add seating, lights, and decorations as desired. Test the raft in shallow water before any long trips.

Safety Tips

• Always wear life jackets.
• Test the raft in calm, shallow water first.
• Check all bottles and connections for leaks or damage.
• Never exceed the recommended capacity.
• Bring a repair kit with extra tape and cable ties.

Frequently Asked Questions

How many bottles do I need for a raft?

For a small raft that can carry one or two people, you'll need approximately 600 bottles (1.5L each). Adjust the number based on the size and weight capacity you need.

What type of tape should I use?

Use a strong, waterproof packing tape. Duct tape can also work, but packing tape is often more resistant to water.

Can I use different bottle sizes?

Yes, but using uniform 1.5L bottles makes construction easier and more predictable. Mixing sizes may affect buoyancy and stability.

How long will the raft last?

With proper care, a plastic bottle raft can last for several seasons. Store it in a dry place away from direct sunlight when not in use.

Is it safe for children?

Yes, but always supervise children closely and ensure they wear life jackets. The raft should be tested by adults first.
