DIY Sheet Metal Bending: Step-by-Step Construction Guide 2026

If you enjoy building your own accessories, tools, or metal projects—like custom lighting for indoors and outdoors—you’ve likely faced the challenge of shaping sheet metal. Whether you need boxes, housings, guards, or shields, bending sheet metal accurately and repeatably is essential. This DIY sheet metal bender, built from sturdy angle profiles, square tubing, thick flat bars, pipe sections, and hinge pins, mounts on a vise or bolts to your workbench for clean, professional results every time.

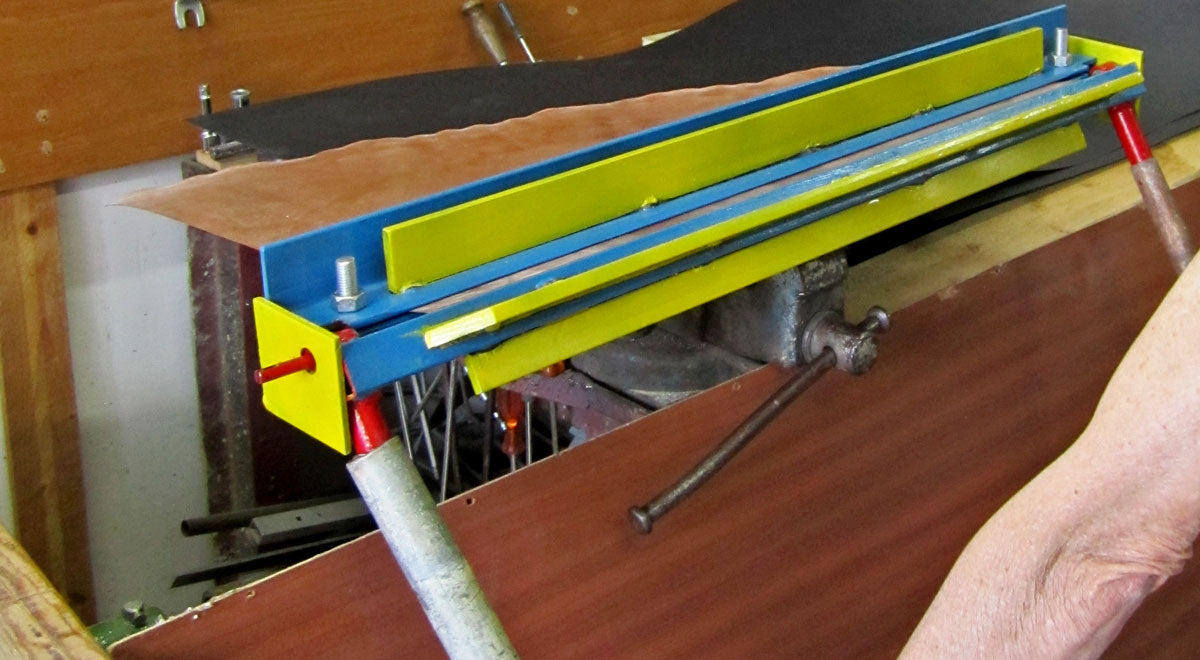

DIY Sheet Metal Bender Overview

We designed this tool to solve the common problem of bending sheet metal at home. The device has a fixed part (the vise) that clamps the metal sheet firmly in place, ensuring the bend occurs exactly where you want it. The moving part hinges smoothly, using a flat face to guide the metal into a uniform new angle. The key to its effectiveness is the robust hinge design—strong, well-aligned pins and thick steel components prevent wobble and deliver crisp bends.

Building the Manual Bender

The base of the machine (the vise) must be securely locked to your work surface. For a sturdy setup, consider pairing this project with a heavy-duty work surface or a sturdy workbench. The fixed jaw uses two angle profiles bolted together, leaving a precise gap for the sheet metal. The moving arm is built from square tubing and flat bars, with pipe sections acting as hinge points. Two hardened steel pins create the pivot—these must fit snugly to avoid play.

Step-by-Step Construction

Materials Needed

• Angle profiles (steel, 4–5 mm thick)
• Square tubing (40x40 mm recommended)
• Flat bars (10 mm thick)
• Two short pipe sections (for hinge bushings)
• Two steel pins (diameter matching pipe inner diameter)
• Bolts, nuts, and washers

Assembly Instructions

1. Cut the fixed jaw: Cut two equal lengths of angle profile. Drill holes for clamping bolts and for the hinge pins.
2. Weld or bolt the jaw together: Leave a gap between the profiles equal to the thickness of your sheet metal plus 1–2 mm.
3. Build the moving arm: Weld square tubing to a flat bar that will press the metal. Attach pipe sections at the hinge end.
4. Insert hinge pins: Slide the pins through the pipe sections and into the fixed jaw holes. Secure with cotter pins or washers.
5. Mount the bender: Clamp the fixed jaw in a heavy-duty vise or bolt it directly to your workbench.

Using the Bender

Slide your sheet metal into the gap of the fixed jaw, align the bend line with the edge of the jaw, then pull the moving arm upward. The flat face of the arm pushes the metal into a clean 90° bend. For multiple bends (like forming a box), reposition the metal and repeat. This tool works best with steel up to 2 mm thick and aluminum up to 3 mm. For larger projects, consider a sturdy garden shed or storage shed to house your workshop.

Tips for Perfect Bends

• Deburr the edges of your sheet metal before bending.
• Apply a light oil to the hinge pins for smooth operation.
• Use a mallet to tap the moving arm if extra force is needed.
• Always wear gloves—sharp metal edges can cause injury.

Frequently Asked Questions

Can I bend stainless steel with this bender?

Yes, but stainless steel requires more force. Keep the metal thickness under 1.5 mm and consider using a longer handle for leverage.

What if my bends are not straight?

Check that the fixed jaw gap is uniform and that the hinge pins are not worn. Also, ensure the sheet metal is fully seated against the back of the jaw before bending.

How do I make bends other than 90°?

You can limit the rotation of the moving arm by inserting a stop block. For precise angles, use a protractor or angle gauge.

Can this bender handle aluminum?

Absolutely. Aluminum up to 3 mm thick bends easily. For softer alloys, you may need to reduce the clamping pressure to avoid marring the surface.
