DIY Wall Vent with Hole Saw: Fight Dampness & Mold 2026

No matter how carefully you design a building, anticipating every possible flaw that could cause future problems, you only truly know if your measures are effective after some time has passed. Dampness is one of the most frequent issues you’ll have to fight, precisely because so many factors can cause it; finding a definitive solution afterward is a serious and expensive problem, but it’s within the reach of a DIY enthusiast.

The cause is almost always insufficient air circulation in an area subject to a large temperature difference: warm air meets a cold surface and, finding no escape, forms condensation. In no time, this leads to damp patches, mold spores, saltpeter, and efflorescence. The solution is to reduce the temperature difference or give the condensation a way out. Drilling a few holes in the perimeter walls and connecting the damp-prone zone to the outdoors can be a drastic solution, but it’s certainly effective.

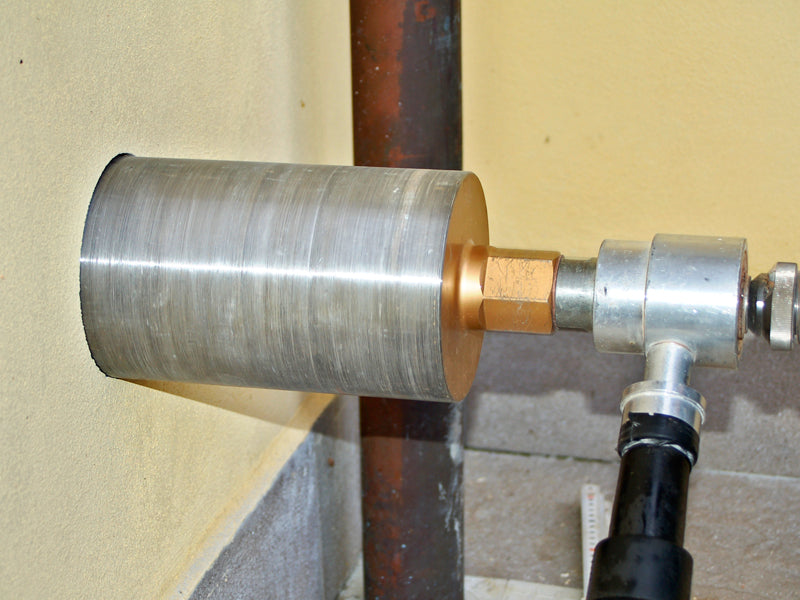

Core-drilling a wall isn’t a complex job, especially since you can rent the necessary equipment at home improvement centers. With large hole saws, you get precise openings that can be masked and protected with a grille. Naturally, you’ll need to drill at least one hole in the opposite wall as well.

How to Core-Drill a Wall

Time required: 2 hours

Step 1: Set the Guide

Fix the guide for the hole saw at the drilling point. The guide helps you start the hole without the tool slipping and should be removed after cutting a few centimeters into the wall.

Step 2: Tunnel Through the Brick

As you advance, stop occasionally to remove the plug that forms inside the saw with a chisel and hammer. This plug prevents suction and slows the saw’s progress. For stubborn walls, consider upgrading your drill and accessories.

Step 3: Install the Protection Grille

Once the hole is complete and cleaned out, insert a short piece of pipe and secure it with a bit of mortar. This keeps it stable and allows the wings of the protection grille to adhere to the wall. The grille ensures good airflow while keeping animals out. For a polished look, pair it with wall decor that complements your interior.

Importance of Correct Hole Placement

Position the vent where moisture is most visible, typically on an exterior wall at the source of the temperature shift. Avoid drilling near electrical outlets or plumbing. A well-placed vent can dramatically improve home ventilation.

Aesthetic Considerations

Choose a grille that blends with your wall color or style. Many modern designs look like intentional architectural features. If the vent is in a living area, coordinate it with your curtains or wall decor for a seamless finish.

Periodic Maintenance

Check the grille every few months for dust or debris buildup. A quick vacuum or wipe-down keeps airflow optimal. For outdoor vents, inspect them after storms and clean as needed. You can store cleaning supplies in a storage bench near the entrance.

Post-Intervention Moisture Monitoring

After installing the vent, monitor the area for a few weeks. If dampness persists, you may need additional vents or a dehumidifier. A hygrometer can help track humidity levels. In severe cases, consult a professional.

When to Consult an Expert

If the dampness is extensive or you suspect structural issues (like rising damp or a leaking pipe), call a specialist. DIY vents work best for localized condensation problems.

Frequently Asked Questions

How many vents do I need?

Usually one vent on each affected wall. For large rooms, two opposite vents create cross-ventilation. Check your home improvement guide for room size recommendations.

Can I install a vent in a load-bearing wall?

Yes, but avoid drilling through structural beams. If unsure, consult a builder. For non-load-bearing walls, it’s straightforward with a hole saw kit.

What size hole should I drill?

4 to 6 inches (100–150 mm) is standard for most wall vents. Match the hole size to your grille. Browse ventilation grilles for options.

Will this work for bathroom moisture?

Yes, but an exhaust fan is usually more effective for bathrooms. For small powder rooms, a wall vent can supplement bathroom ventilation.

How do I prevent drafts?

Use a vent with a built-in damper or install a removable plug for winter. Insulate the pipe with foam if needed. Check insulation supplies for options.
