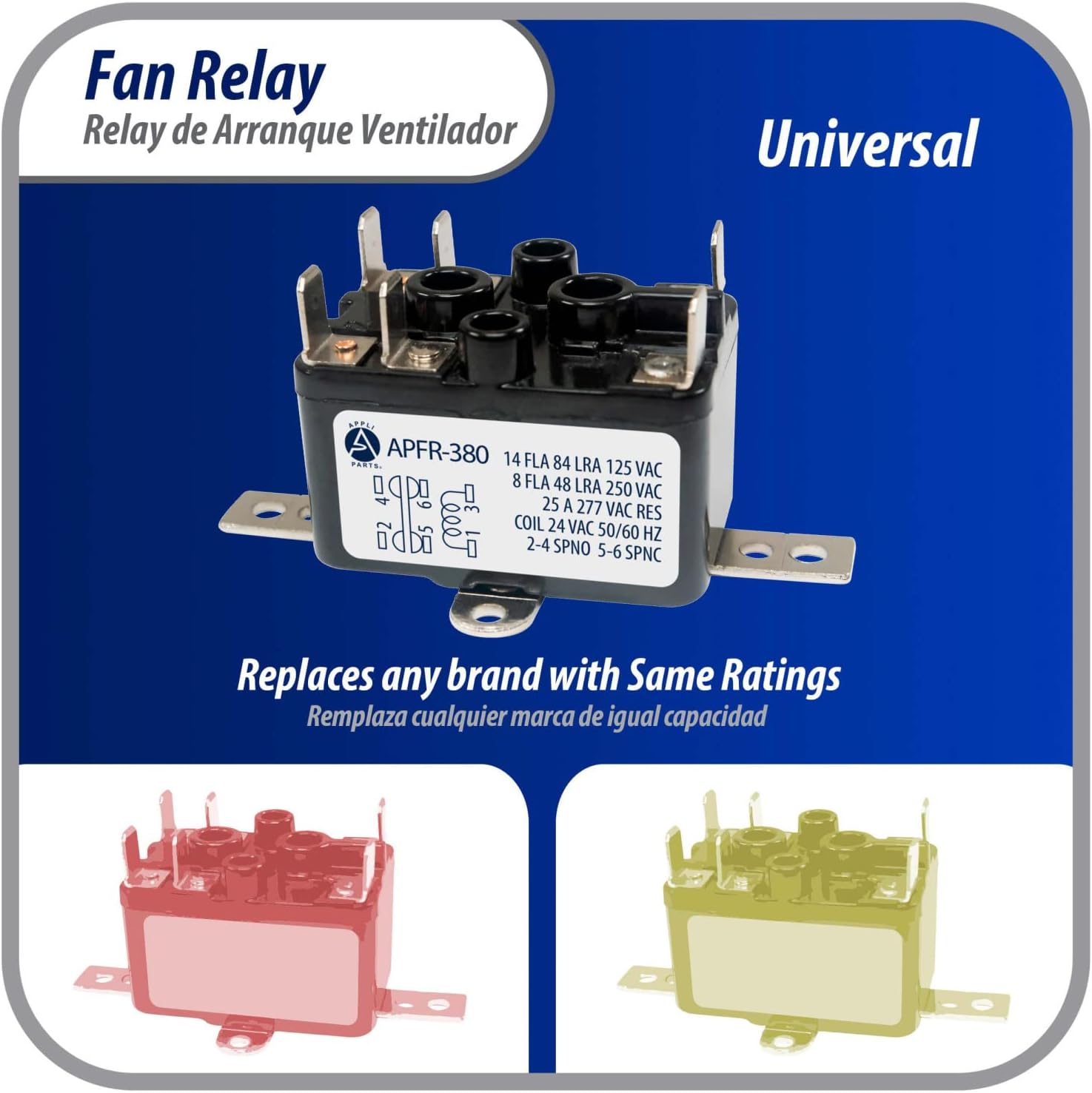

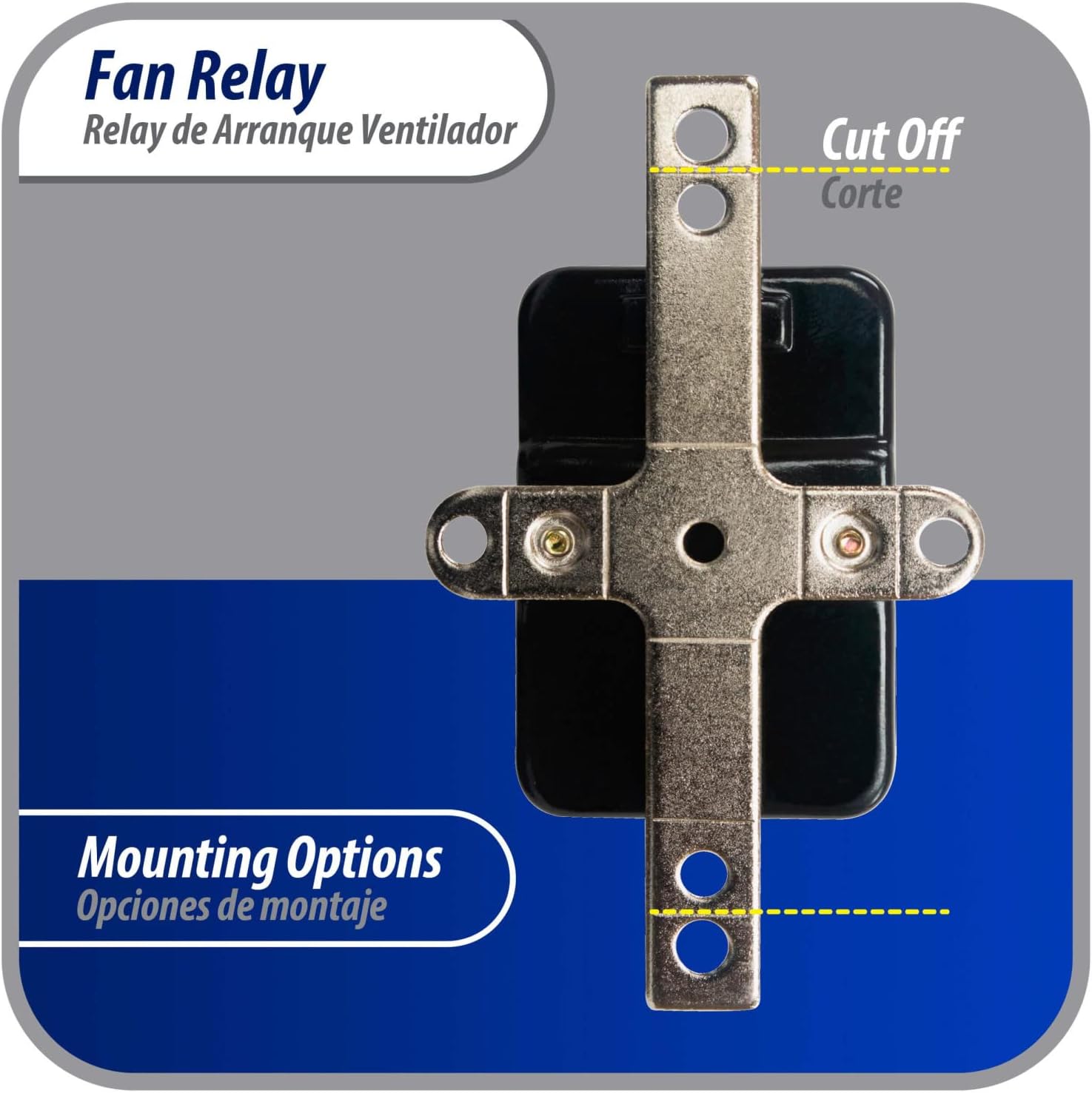

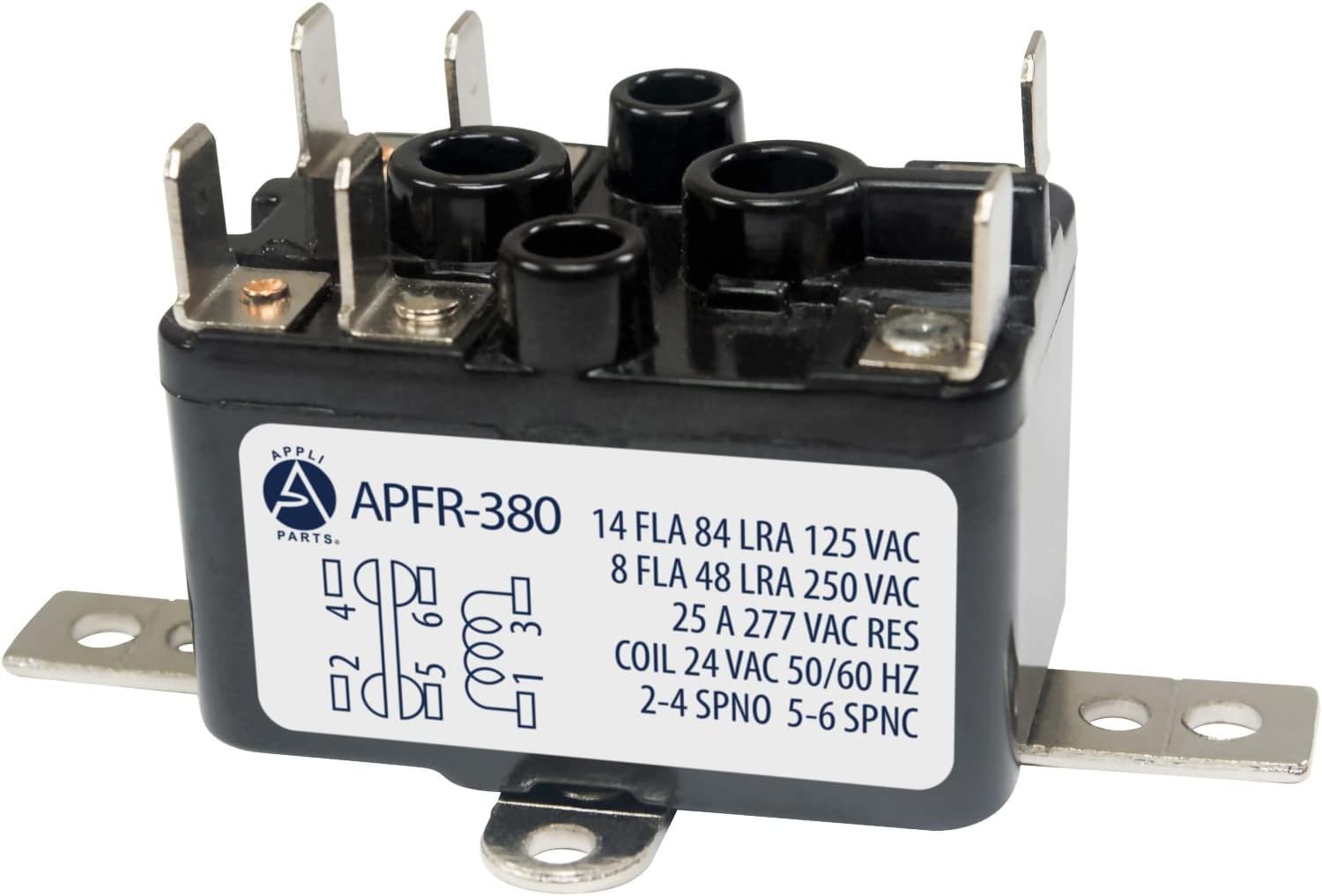

Appli Parts APFR-380 90-380, 24 VAC Coil, Heavy Duty Switching Fan Relay, SP Normally Open, SP Normally Closed, AC and heating Furnace blower relay Universal fit multi position bracket
Your payment information is processed securely. We do not store credit card details nor have access to your data.
Description
Product Features
- Use: Designed for use in Heating, Air Conditioning, Refrigeration and Ventilation Applications. Universal design for other application that meet electrical specs

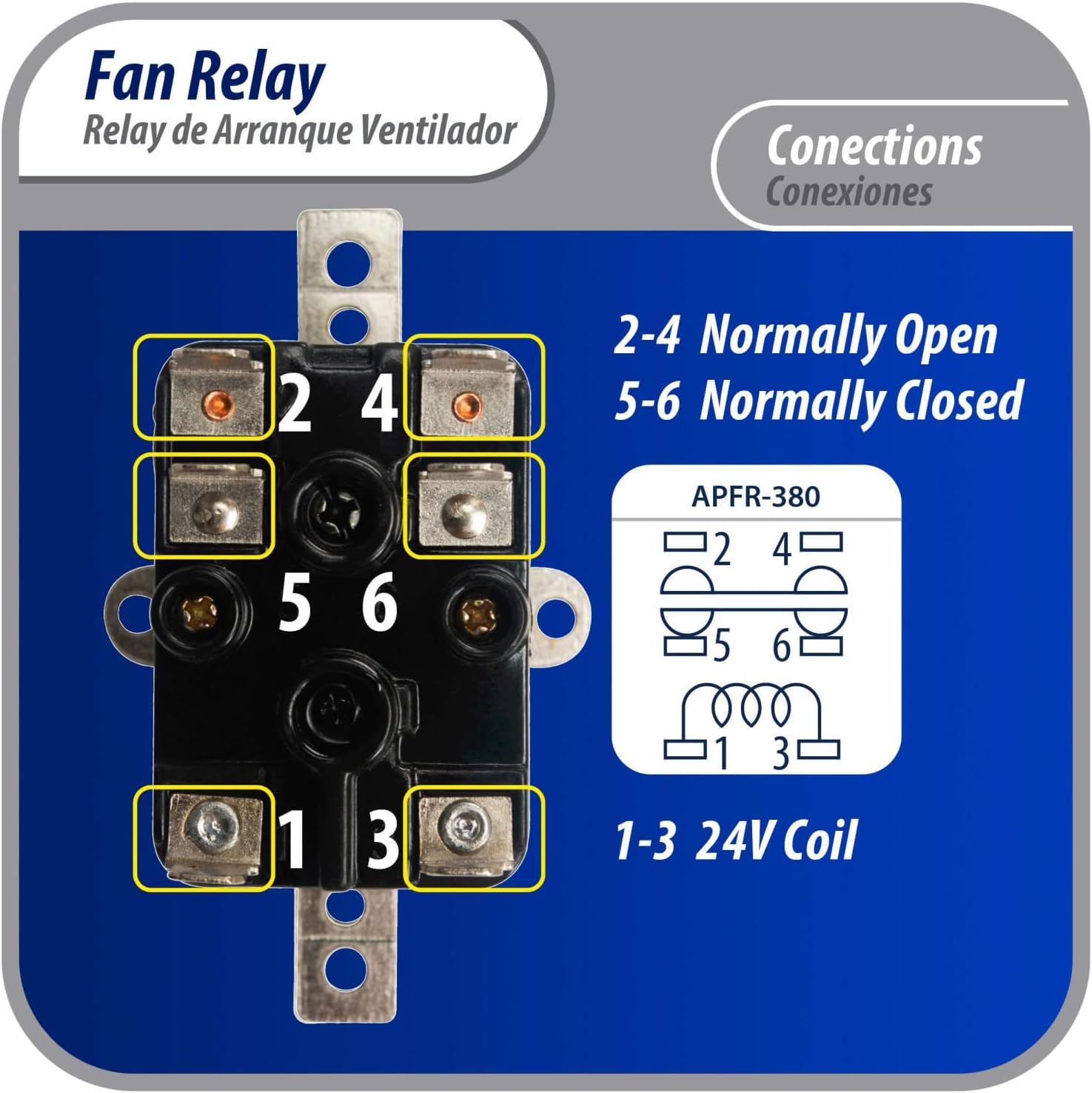

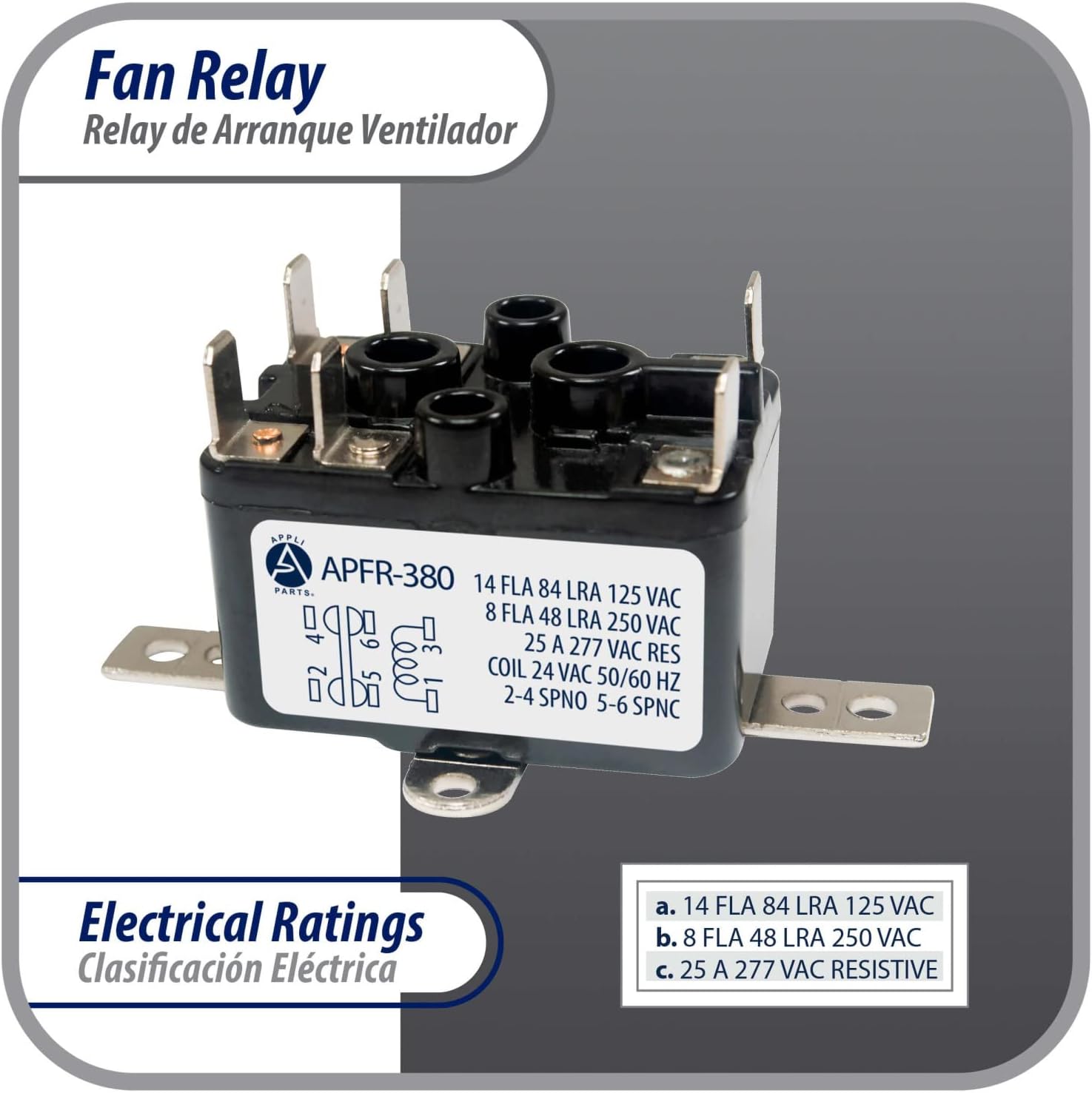

- Specs: 24V AC Coil, Terminals 2-4 NO ,5-6 NC Power, 1-3 Coil for input Signal, 14 FLA 84 LRA 125 VAC, 8 FLA 48 LRA 250 VAC, 25A 277 VAC Resistive, 50/60 Hz
- Universal: This Switching relay also known as fan relay hvac will work with any unit where the electrical requirements are met by the products specifications
- Replaces: Direct replacement for Jard 92380, Mars 90380, Packard PR380, RBM 90-380, Zettler 2900-1AB-24A, Zettler AZ 2900-1AB-24A, Smart Electric SE90380
- Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Product Overview
- Connector Type: Screw
- Contact Type: Normally Closed, Normally Open
- Current Rating: 25 Amps
- Mounting Type: DIN Rail Mount
- Brand: AP APPLI PARTS
Product Information
| Connector Type | Screw |
| Contact Type | Normally Closed, Normally Open |
| Current Rating | 25 Amps |
| Mounting Type | DIN Rail Mount |
| Brand | AP APPLI PARTS |
| Operation Mode | Electrical |
| Wattage | 6E+2 |
| Coil Voltage | 24 Volts |
| Contact Current Rating | 25 Amps |
| Maximum Switching Current | 25 Amps |
| Maximum Switching Voltage | 24 Volts |
| Minimum Switching Voltage | 24 Volts |
| Specification Met | OEM |
| UPC | 814245027827 |
| Manufacturer | AP APPLI PARTS |
| Part Number | APFR-380 |
| Item Weight | 2.89 ounces |

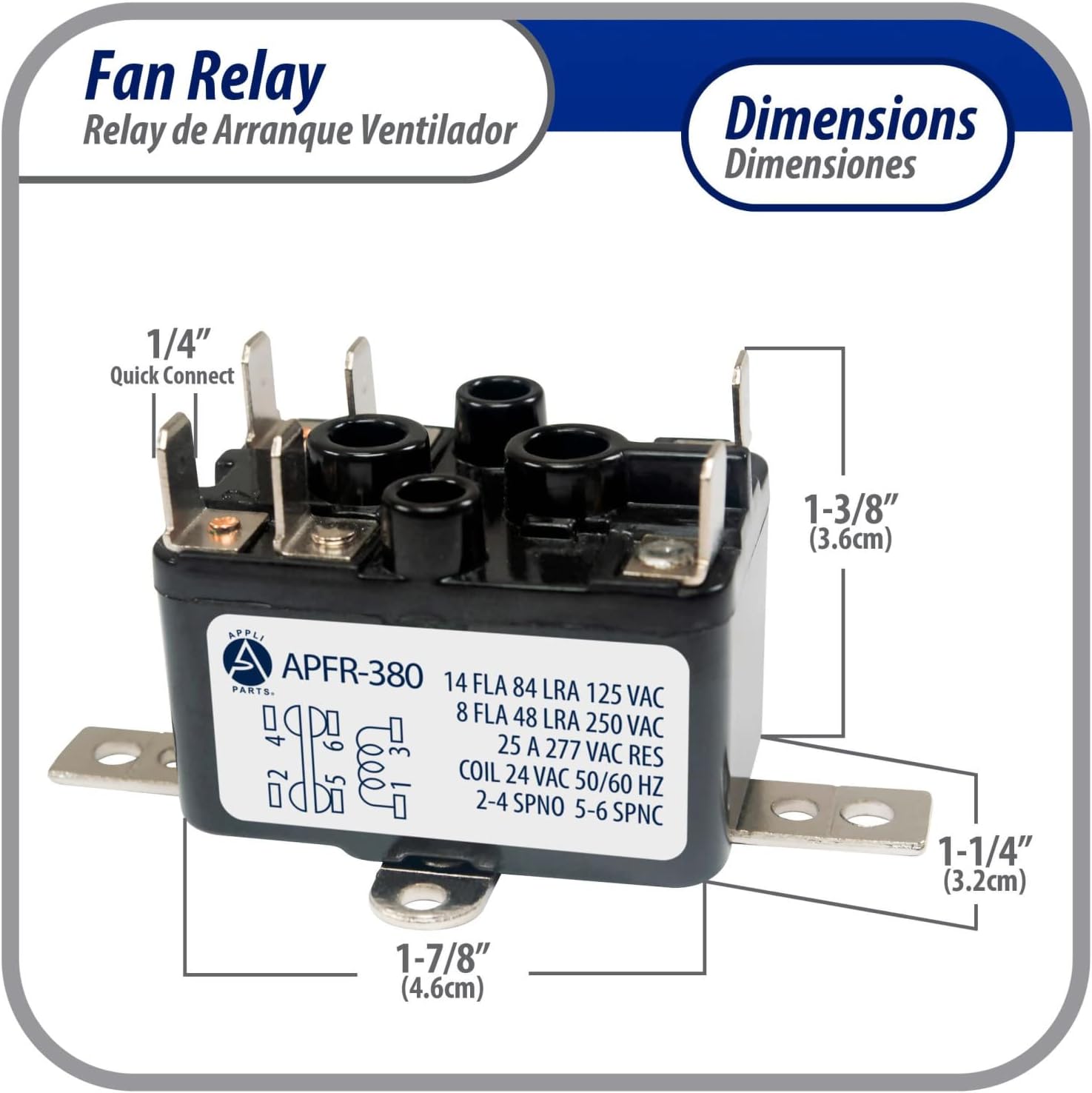

| Product Dimensions | 3 x 1.8 x 2.5 inches |
| Item model number | APFR-380 |
| Measurement System | Imperial |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B01N2M4GNI |
| Customer Reviews | |
| Best Sellers Rank | |
| Date First Available | November 23, 2016 |
