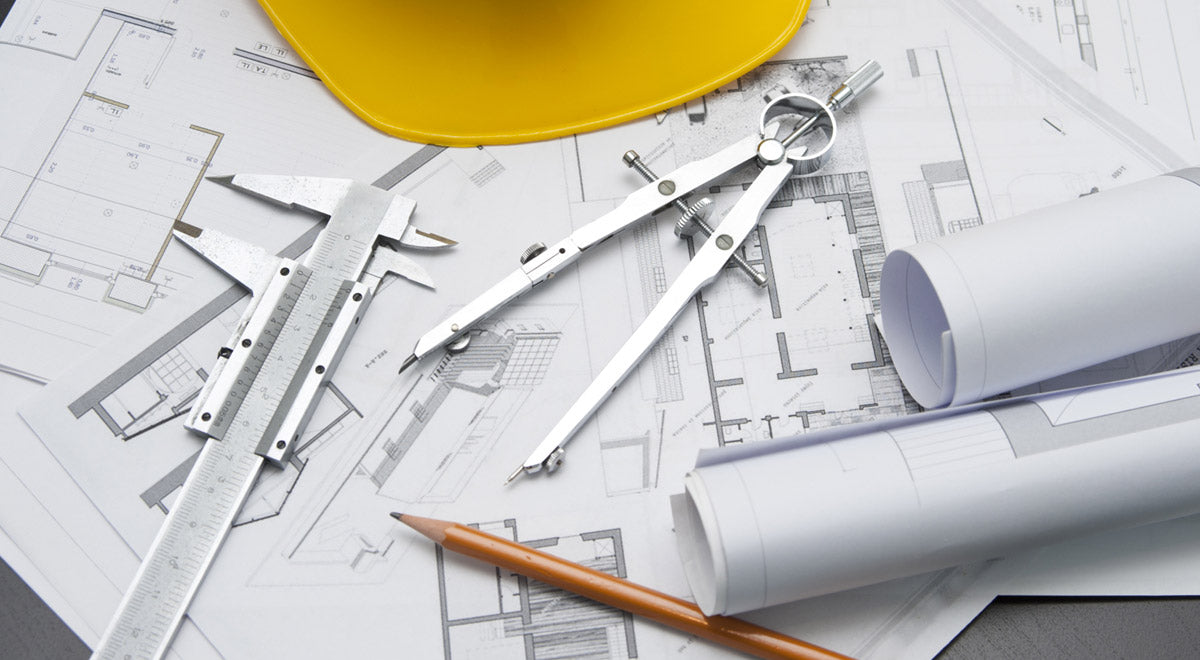

DIY Caliper and Compass: How to Use Them for Precision 2026

In woodworking, metalworking, and other material crafts, it's often necessary to perform precise marking to enable the necessary cutting operations for preparing pieces. It's also essential to measure diameters, depths, and thicknesses accurately. For many of these tasks, we can use the compass and the caliper. The first has two fixed points, usually in soft iron, but can also come with a pencil holder: we use it to mark circles and arcs, or to take measurements and transfer them quickly. The second is a high-precision measuring tool for diameters and thicknesses.

How Calipers and Compasses Are Made

The vernier scale is the most important part of the caliper as it allows measurements with approximations of less than a millimeter. It consists of a graduated scale on the caliper's slider: depending on the number of divisions, it can be decimal (ten divisions), twentieth (twenty divisions), or fiftieth (fifty divisions). The operation is identical for all types of vernier scales. For your next project, consider upgrading your home improvement tools with a quality set.

The Compass

Circles and Arcs on Wood

We use the compass with a pencil holder exactly like a drawing compass. Very large compasses are available commercially with an opening radius of over 30 cm. When working on larger pieces, a sturdy work surface can make all the difference.

Circles and Arcs on Metal

For metal, use a compass with steel points. The marking point leaves a clearly visible mark on the metal. A curved slot with a screw allows you to lock the opening for taking measurements. A well-organized shed or workshop is ideal for storing these precision tools.

The Center Finder

With this tool, we can locate the center of a circular object for other markings. Place it on the circumference and draw two diameters. The intersection of these is the center. This technique pairs perfectly with garden supplies projects like building planters or custom pots.

The Caliper

Precise measurements: the caliper is generally made of steel and consists of a fixed part (the beam), graduated in centimeters and inches, and a movable part (the slider), connected to a point and a rod that protrudes from the end of the tool. With the caliper, you can measure thicknesses and diameters with great accuracy. For detailed work, ensure you have proper lighting in your workspace to read those fine vernier markings.

The Micrometer (Palmer Caliper)

For even greater precision, the micrometer, also known as a Palmer caliper, is used. It measures dimensions to within a hundredth of a millimeter. It works with a threaded spindle that moves the anvil closer to the object being measured. This level of precision is crucial for tasks like fitting bathroom vanities or installing custom shelving.

Practical Applications for DIY Enthusiasts

• Measuring internal diameters: Use the smaller upper jaws of the caliper to measure the inside of a hole or tube.
• Measuring depths: Use the depth rod protruding from the end of the caliper to measure the depth of a hole or recess.
• Transferring measurements: Use the compass to pick up an external dimension and transfer it directly to your workpiece for marking.
• Checking thickness: Use the main jaws of the caliper to check the thickness of materials like wood or metal sheets.

FAQ

What is the difference between a caliper and a compass?

A caliper is a measuring tool used to obtain precise dimensions (diameters, thicknesses, depths). A compass is primarily a marking tool used to draw circles, arcs, or transfer measurements from one piece to another. Both are essential for a well-stocked home improvement toolkit.

How do I read a vernier caliper?

First, read the main scale on the beam where the zero of the vernier scale falls. Then, find the line on the vernier scale that perfectly aligns with a line on the main scale. Add that value (in tenths, twentieths, or fiftieths of a millimeter) to the main reading. For a comfortable reading experience, consider adding a rug to your workshop to reduce fatigue from standing.

Can I use a compass on metal?

Yes, but you need a compass with hardened steel points, not a pencil holder. The steel point will scratch a visible line into the metal surface. A sturdy workbench is essential for holding the metal steady while you mark it.

What is a center finder used for?

A center finder is used to locate the exact center of a cylindrical or circular object. This is critical for drilling a centered hole or for mounting the object on a lathe. This technique is useful for custom outdoor decor projects like making your own birdhouses or wind spinners.

How do I maintain my caliper and compass?

Keep them clean and lightly oiled to prevent rust, especially after use on metal. Store them in a protective case or pouch. Avoid dropping them, as this can bend the points or damage the vernier scale. Organize your tools neatly in shelving units to keep them safe and accessible.
