DIY Concrete Mixer for €15: Build Your Own with Scrap Parts 2026

Building your own DIY concrete mixer doesn't have to break the bank. With just €15 and some reclaimed materials, you can create a functional mixer perfect for small cement jobs. Our reader Achille Ninimosi proves that a little creativity and resourcefulness go a long way. Whether you're tackling a patio project or mixing mortar for repairs, this homemade solution is both budget-friendly and effective. For more home improvement essentials, check out our curated collection.

How to Build a DIY Concrete Mixer

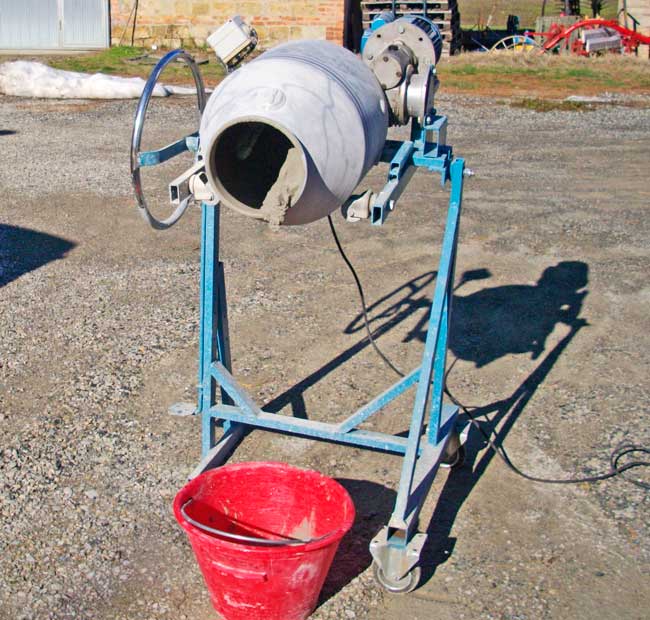

The frame and gears of this DIY concrete mixer are built from 40×40 mm square tubing, cut to size and welded into an inverted V-leg structure with cross braces. One leg rests on two sturdy fixed wheels. The support platform consists of three 20×40 mm tube sections welded together. At the ends, two bolts are welded to act as pivot points on the frame. The motor is paired with two reducers to drop from 2800 to 14 rpm, coupled to a shaft with a plate bolted to the bucket. The entire structure is secured to the platform with a strong tubular support. The bucket lock uses a toothed disc controlled by a pedal. A reclaimed steering wheel is welded to the disc and platform pivot. The front of the bucket rests on two swivel wheels. Inside the bucket, shaped flat bar mixers are bolted in place. For additional garden supplies to complement your projects, explore our range.

Materials You'll Need

• Single-phase electric motor 0.25 kW
• 1 reducer 1:10
• 1 reducer 1:20
• 1 milking bucket
• Square iron tubing 40x40x2 mm
• Various tube sections
• 2 fixed wheels Ø 100 mm
• 2 swivel wheels Ø 45 mm
• 1 reclaimed steering wheel
• 1 outdoor switch
• Sheet metal disc 4 mm thick Ø 100 mm
• Sheet metal disc 2 mm thick Ø 220 mm
• 2 bolts M20x200 mm
• 1 bolt M16x60 mm
• 8 bolts M6x4 mm
• Iron rod Ø 8 mm
• Electrical cable 1.5 mm²

If you're looking to upgrade your workspace, consider adding a desk or work surface from our selection to keep your tools organized.

Mechanisms from Recycled Parts

The toothed wheel system with an 8 mm pinion on one side of the frame keeps the bucket locked in various positions. It's operated by a pedal that slides through two holes in 20×20 mm angle brackets, 30 mm long, welded to the frame. A spring holds it in place and stretches when the pedal is pressed. This clever recycling approach saves money and reduces waste. For outdoor projects, don't forget to browse our outdoor patio furniture to create a comfortable work zone.

Step-by-Step Assembly Tips

• Weld the frame securely with cross braces for stability.
• Attach the motor and reducers to achieve the correct speed.
• Mount the bucket on the pivot platform with bolts.
• Install the pedal-operated locking mechanism for safety.
• Add mixers inside the bucket for efficient blending.

Proper lighting is crucial for any DIY workspace—check out our options to brighten your garage or shed.

Buy Now: Get Your DIY Project Started

While this project uses reclaimed materials, you may need a few new items to complete it. From sheds for storage to BBQ grills and outdoor cooking supplies for post-project relaxation, GrandGoldman.com has you covered. Also, consider a greenhouse if you're expanding your garden alongside your DIY efforts.

Frequently Asked Questions

Can I use this mixer for large batches of concrete?

This DIY mixer is best for small batches (up to 20-30 liters). For larger projects, consider a commercial mixer or multiple batches.

What type of motor is best?

A single-phase 0.25 kW motor works well. Ensure it's paired with reducers to lower the RPM to around 14 for safe mixing.

How do I ensure safety while using the mixer?

Always use an outdoor-rated switch, securely lock the bucket with the pedal mechanism, and wear protective gear like gloves and goggles.

Can I modify the design for different bucket sizes?

Yes, adjust the frame dimensions and pivot points to accommodate larger or smaller buckets. Ensure the motor power matches the load.

Where can I find replacement parts?

Check our home improvement collection for tools and hardware. For outdoor setups, explore pergolas and gazebos to enhance your workspace.
