DIY Modular Table: Build a Versatile 7-Piece Set for Home & Garden 2026

Looking for a furniture project that's as practical as it is adaptable? A modular table offers the ultimate flexibility—use it as a compact side table for daily tasks, then expand it into a massive 3750mm x 1500mm gathering surface for parties or family dinners. This DIY build features seven interlocking pieces that work beautifully indoors or out. Whether you're furnishing a patio or upgrading your dining area, this project pairs perfectly with outdoor patio furniture and dining tables for a cohesive look.

Materials & Tools You'll Need

Before diving in, gather your supplies. The core structure uses 15mm plywood for the tabletop and reinforcement strips. For a professional finish, consider pairing this project with home improvement essentials from our shop.

Key Components

• 7 tabletop elements: 4 quarter-circle pieces (A), 1 rectangular base (B), 2 rectangular tops (C)
• Reinforcement strips: 43mm wide, two layers per edge for a 45mm total thickness
• Legs: cut to fit 23x45mm notches
• Swivel brackets (L) for fold-out supports
• Bolts, dowels, wood glue, and brad nails

Step-by-Step Building Guide

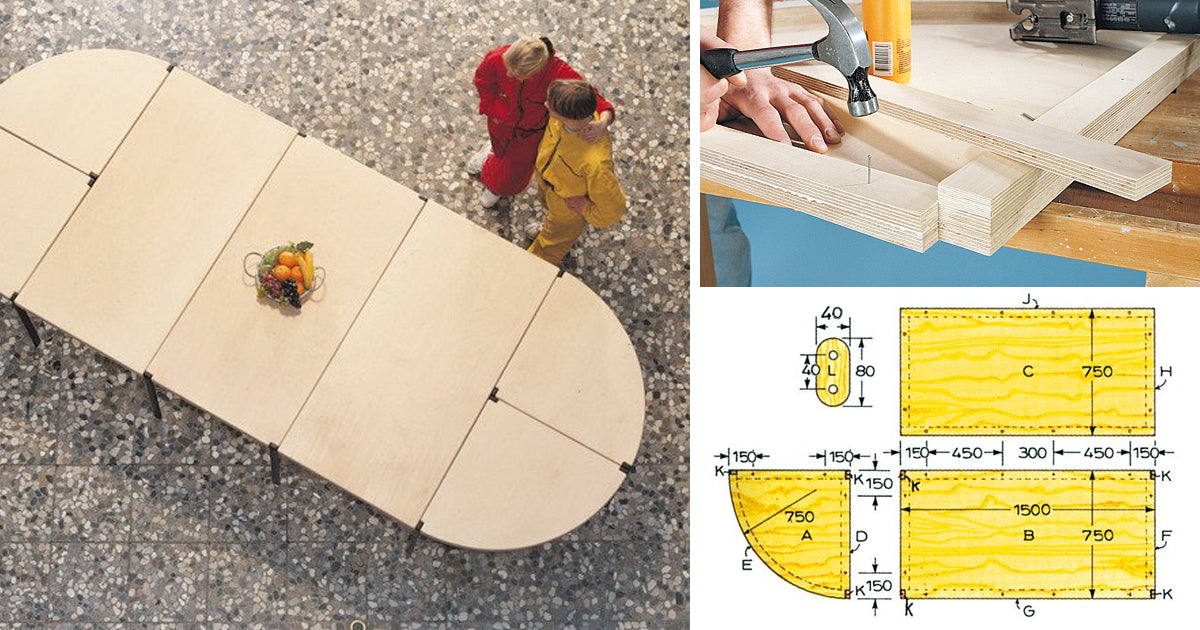

1. Cutting the Tabletop Pieces

Rectangular cuts are straightforward, but for the quarter-circles, improvise a compass with a pencil and string. Use a jigsaw for curved cuts, then smooth edges with a router or sandpaper. After cutting, reinforce the underside with two layers of strips—stagger joints between layers to avoid weak points. Secure with glue and brad nails. Garden supplies like clamps can help hold pieces steady during assembly.

2. Cutting Notches for the Legs

On pieces A and B, cut 23x45mm notches at corners so legs sit flush within the table footprint. This is critical for seamless side-by-side arrangement. Use a jigsaw or handsaw for precision. For a sturdy build, check out desks and work surfaces for inspiration on durable joinery.

3. Attaching the Legs

Insert legs into notches and secure with one bolt and four dry dowels per leg. Drill five 6mm holes in a dice-five pattern for optimal hold. For added stability, consider storage benches that double as seating around your new table.

4. Installing Swivel Brackets

Under the reinforcement strips on leg-equipped elements, attach swivel brackets (L) with a bolt acting as a pivot. These allow support arms to swing out for extra surface area and fold back when not in use. This mechanism is ideal for kitchen islands and carts that maximize space.

Assembly & Configuration Ideas

Combine the seven pieces in multiple layouts: a long banquet table, a clustered group for conversation, or separate small tables for flexible seating. The quarter-circles can form a round centerpiece or be used as standalone side tables. Complete the look with rugs to define zones or curtains for indoor-outdoor flow.

FAQ

Can this table be used outdoors?

Yes! With weather-resistant plywood and outdoor-grade sealant, it's perfect for patios. Pair with outdoor lighting and outdoor heating for year-round entertaining.

What's the best wood for this project?

Marine-grade or exterior plywood is recommended for durability. For indoor use, standard birch plywood works well. Browse bookcases and shelving units for matching wood tones.

How do I make the quarter-circles perfectly round?

Use a string compass: tie a pencil to a string at 750mm radius, pin the string's end at the corner, and draw the arc. Cut slowly with a jigsaw.

Can I modify the size?

Absolutely! Adjust the radius and rectangle dimensions to fit your space. For smaller rooms, consider nightstands or mirrors to complement the scale.

What finish should I use?

Sand thoroughly and apply a polyurethane varnish or outdoor paint. For a natural look, try a clear sealant. Match with wall decor for a unified aesthetic.

Final Tips

Test the swivel mechanism before final assembly. Use a level to ensure all pieces sit flat. This modular table is a conversation starter and a workhorse—perfect for BBQ grills and outdoor cooking setups or as a centerpiece in your greenhouse. Happy building!
