How to Build a DIY Iron BBQ: Step-by-Step Guide 2026

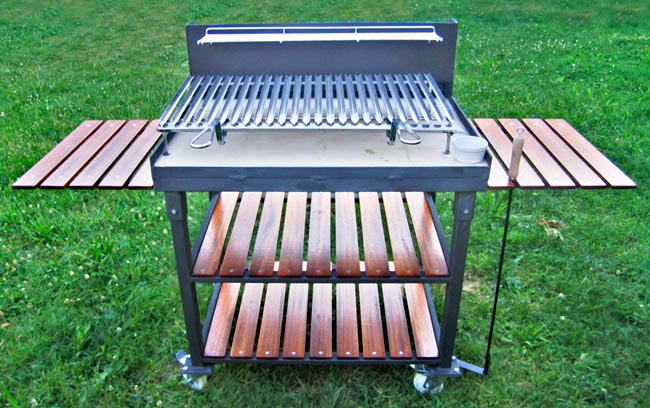

If you love the smoky flavor of charcoal-grilled food and enjoy hands-on projects, building your own iron BBQ is a rewarding weekend endeavor. This spacious, versatile barbecue features a tubular steel frame, a refractory tile cooking surface, and wooden slatted shelves. The grills themselves are purchased ready-made, so you can focus on crafting a sturdy, custom base.

Before you start, decide whether you want a charcoal or gas BBQ. A charcoal DIY grill is simpler to build and delivers unbeatable flavor, though it requires more attention during cooking. For the grilling grate, skip standard round-wire stainless steel (which lets fat drip and smoke) and choose a V-bar grate that channels grease into a collection channel.

Materials & Tools You'll Need

• Square steel tubes (for frame)
• Metal sheet (for firebox and drip tray)
• Refractory tiles (20 pieces for cooking surface)
• Wooden slats (for shelves)
• Rust-inhibiting primer and gunmetal-colored anti-rust spray paint
• Angle grinder with metal cutting disc
• Welding machine
• Drill, bolts, and screws
• Purchased V-bar grill grate

You can find many of these supplies and tools at GrandGoldman's Home Improvement collection, including metal primers, spray paints, and cutting accessories.

Step 1: Build the Frame

Cut the square tubes to size using a metal chop saw. For the top frame, cut ends at 45° angles so they fit together cleanly. Weld the frame pieces first to create the support for the metal plate that will hold the refractory tiles. Then weld side walls onto this plate to contain the tiles and coals. Next, cut and weld the legs and lower shelf supports. Separately, assemble the metal hopper side structure that lets you load charcoal onto the cooking surface. Finally, cut and shape the wooden slats for the two lower shelves and two side shelves.

For all your metalworking and welding needs, browse Garden Supplies for heavy-duty gloves and safety gear.

Step 2: Paint Before Assembly

Paint all metal parts before assembling. Apply two coats of rust-inhibiting primer, then spray on a gunmetal-colored anti-rust finish (the same type used on railings and gates) in an open, well-ventilated area. This gives your BBQ a durable, attractive look.

Step 3: Assemble the BBQ

Once the paint is dry, begin assembly. Fix the cooking surface by inserting the four larger-diameter feet into the frame tubes and locking them with bolts through pre-drilled holes (this makes the unit easy to disassemble for storage). Attach the side shelf supports and wooden slats. Finally, place the V-bar grill grate on top of the refractory tiles.

To make your outdoor cooking area even more inviting, consider adding Outdoor Patio Furniture for seating and a BBQ Grills & Outdoor Cooking Supplies station nearby.

Step 4: Finishing Touches

Your iron BBQ is now ready for its first fire! Season the refractory tiles by burning a small fire for 30 minutes, then let it cool. This cures the tiles and removes any residual manufacturing oils. For ambient lighting during evening cookouts, check out Outdoor Lighting options. And to keep your tools organized, add a Storage Bench nearby.

FAQ: Building an Iron BBQ

1. Can I use this BBQ for gas grilling?

This design is specifically for charcoal. If you prefer gas, you would need to modify the base to hold a gas burner system and use a different cooking surface.

2. How do I clean the refractory tile cooking surface?

Let the tiles cool completely, then brush off ash and debris with a stiff wire brush. For stubborn residue, scrub with a damp cloth and mild soap, then rinse and dry thoroughly.

3. What size should the BBQ be?

The example uses 20 refractory tiles (about 24x24 inches total). Adjust the frame dimensions to fit your available space. For a larger cooking area, consider a Pergola to provide shade while you cook.

4. Do I need to weld the frame?

Yes, welding provides the strongest joint for a heavy BBQ. If you don't have a welder, you can use heavy-duty angle brackets and bolts, but the frame may be less stable over time.

5. How do I protect the wooden shelves from heat?

Keep the wooden shelves at least 12 inches away from the firebox. You can also treat the wood with a high-temperature sealant. For extra protection, place a Outdoor Decor heat shield between the firebox and shelves.
