How to Thread Metal and Wood: Complete Step-by-Step Guide 2026

Threading—creating the helical profile that allows elements to be joined by screwing—requires specific cutting tools and precise techniques. Whether you're working on home improvement projects or tackling garden supplies repairs, mastering threading opens up a world of durable connections. This guide covers internal and external threading on metal and wood, with practical tips for success.

What Is Threading?

Threading means shaping a cylindrical element or a hole to accommodate nuts, bolts, screws, or other mechanical fasteners. You can thread the inside of a tube or the outside of a rod. For internal threads, use taps (with a square shank for a tap wrench); for external threads, use dies mounted in a die holder. A classic thread has a triangular cross-section, with pitch and diameter as key measurements. Proper drilling is crucial—the threaded hole must be perpendicular to the surface and the right diameter for the screw it will host.

How to Thread Internally

Choosing the Right Drill Bit

For internal threading, the drill bit diameter must match the thread's core diameter. Use these tables as a guide:

ISO Thread Table (Metric)

• M3: drill 2.5 mm
• M4: drill 3.3 mm
• M5: drill 4.2 mm
• M6: drill 5.0 mm
• M8: drill 6.8 mm
• M10: drill 8.5 mm
• M12: drill 10.2 mm

Whitworth Thread Table (Imperial)

• 1/4" BSW: drill 5.1 mm
• 5/16" BSW: drill 6.5 mm
• 3/8" BSW: drill 8.0 mm
• 1/2" BSW: drill 10.5 mm
• 5/8" BSW: drill 13.5 mm
• 3/4" BSW: drill 16.5 mm

Step-by-Step Internal Threading

1. Drill the hole perpendicular to the surface. Clean out chips thoroughly.
2. Lubricate the hole with cutting oil or suitable lubricant.
3. Start with the taper tap (first tap), turning it gently with a tap wrench. After every half turn, reverse slightly to break chips.
4. Clean the hole again, then use the intermediate tap (second tap).
5. Finish with the bottoming tap (third tap) to complete the thread.

For consistent results, consider using quality tap and die sets from GrandGoldman's home improvement collection.

Using a Thread Gauge to Determine Pitch

A thread gauge (contagocce) helps identify the pitch of existing threads. Simply match the gauge teeth to the thread profile until they fit perfectly. This is essential when repairing or matching fasteners.

Effective Lubrication

Always lubricate before and during threading to reduce friction, prevent tool breakage, and achieve cleaner threads. Use cutting oil for steel, kerosene for aluminum, or specialized lubricants for other materials.

Types of Taps and Tap Wrenches

Taps come in sets of three: taper (starting), intermediate (plug), and bottoming (finishing). Tap wrenches (giramaschi) hold the square shank and allow controlled rotation. Choose adjustable wrenches for versatility or fixed-size wrenches for specific tap sizes.

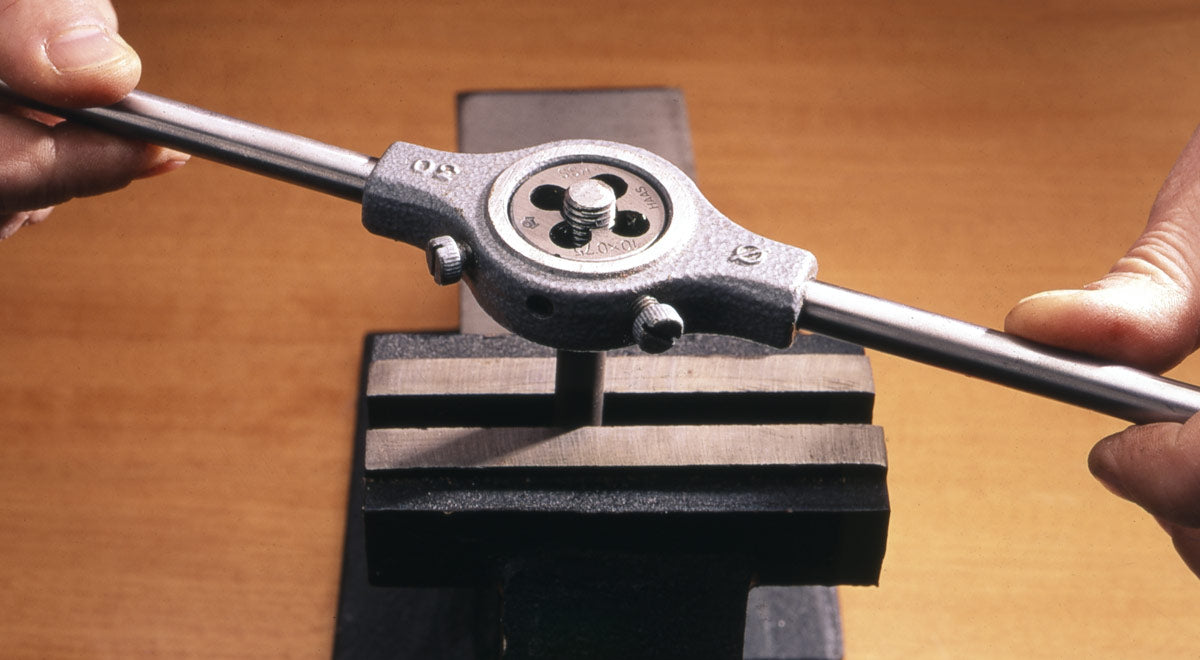

How to Thread Externally

External threading uses dies mounted in a die holder (girafiliere). The die's cutting edges are separated by wide gaps that expel chips. Here's the process:

1. Clamp the rod securely in a vise.
2. Chamfer the end of the rod slightly to guide the die.
3. Lubricate the rod and die.
4. Place the die on the rod and turn the die holder clockwise, applying steady pressure. Reverse occasionally to clear chips.
5. Continue until the desired thread length is achieved.

For outdoor projects like assembling pergolas or gazebos, external threading is often used on bolts and rods.

Threading Plumbing Elements

Plumbing threads (often tapered like NPT or BSP) require special taps and dies. Always use thread sealant tape or compound on plumbing threads to prevent leaks. For bathroom or kitchen upgrades, check out bathroom vanities and kitchen islands and carts at GrandGoldman.

How to Thread Wood and Plexiglass

Wood and plexiglass can also be threaded, but with different tools:

• Wood: Use wood thread taps or simply drive a screw directly into a pre-drilled pilot hole. For larger threads, use a specialized wood tap.
• Plexiglass: Drill a hole slightly larger than the tap's core diameter. Lubricate with water or soap to prevent cracking. Use sharp, new taps and go slowly.

For delicate materials, always practice on scrap first. Enhance your workspace with desks and work surfaces from GrandGoldman.

Frequently Asked Questions

1. What's the difference between a taper tap and a bottoming tap?

A taper tap has a long, tapered lead that starts threads easily. A bottoming tap has a flat end and cuts threads all the way to the bottom of a blind hole. Use all three taps in sequence for best results.

2. Can I thread aluminum the same way as steel?

Aluminum is softer, so use sharp tools, lighter pressure, and kerosene or specialized aluminum cutting fluid. Avoid forcing the tap to prevent stripping.

3. How do I fix a stripped thread?

Use a thread repair insert (helicoil) or oversize tap. Drill out the old thread, tap the new size, and insert a coil or use a larger bolt.

4. Do I need to lubricate when threading wood?

Lubrication isn't usually necessary for wood, but wax or soap can reduce friction when driving screws. For threaded inserts, a little wax helps.

5. What safety precautions should I take?

Wear safety glasses to protect from metal chips. Secure workpieces firmly. Use sharp tools to avoid excessive force. Keep hands clear of rotating tools.
