Pivot Hinges for Doors and Windows: Installation & Maintenance Guide 2026

Pivot hinges are a robust and versatile solution for installing heavy door and window shutters, offering a smooth 180° opening range. Whether you're upgrading your home's functionality or tackling a DIY renovation, understanding how to properly install and maintain these hinges is essential for long-lasting performance. For all your home improvement needs, from hardware to finishing touches, we've got you covered.

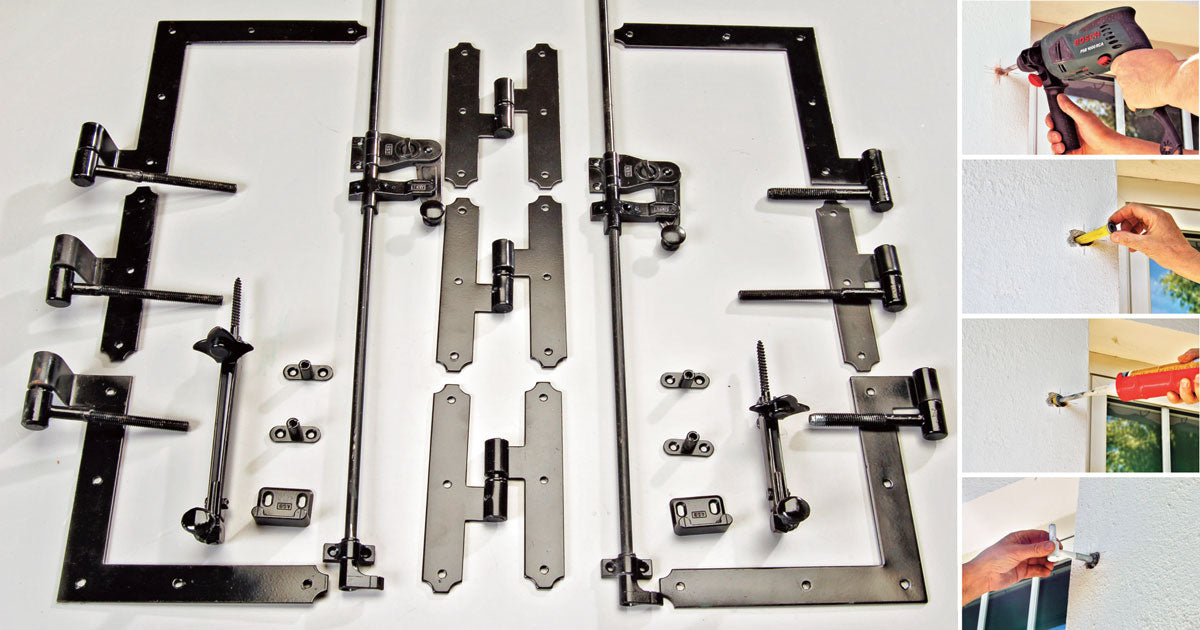

What Are Pivot Hinges?

Pivot hinges allow you to mount even very heavy shutters or doors while ensuring a full 180° opening. They are commonly used for multi-leaf shutters and large entry doors. For a complete installation, you'll need quality hardware — explore our selection of home improvement essentials to get started.

Key Features of Pivot Hinges

• Support for heavy doors and shutters
• Full 180° opening capability
• Long hinge arms for corner stability
• Flush fit with the wall when closed

How to Install Pivot Hinges

Proper installation ensures your doors or shutters operate smoothly for years. Follow these steps carefully.

Tools and Materials Needed

• Pivot hinges (9 for a three-leaf shutter system)
• Chemical anchor
• Drill with masonry bit
• Measuring tape and level
• Safety glasses

Step-by-Step Installation Guide

1. Mark and drill holes: Drill holes at a slight inward angle to avoid weakening the wall. Holes should be at least 12 cm deep. Clean out all dust.
2. Insert the anchor sleeve: Place the mesh sleeve into the hole to hold the chemical anchor.
3. Inject chemical anchor: Use a two-component chemical anchor with an extended nozzle to fill the hole completely.
4. Insert the hinge pin: Rotate the threaded part of the hinge as you insert it to ensure full contact with the resin.
5. Attach hinges to the door/shutter: Position the door at the correct distance and square it, aligning with the hinge pins set in the wall.

For a sturdy and stylish result, pair your installation with complementary dining tables or sofas to complete your room's look.

Pivot Hinge Maintenance Tips

Regular maintenance keeps your doors and shutters operating like new. Here's how to address common issues.

How to Remove a Door from Hinges

Place a wedge-shaped piece of wood on a thin strip, then press down on the wedge with your foot to gently lift the door off its hinges without damaging the wood.

Fixing a Door That Scrapes the Floor

If your door drags on the floor, slide a thin brass washer onto each hinge pin. This small lift can solve the problem instantly. Find quality home improvement supplies for this repair.

Replacing Loose Screws

1. Remove the hinge.
2. Enlarge the stripped holes.
3. Insert beech dowels tightly, then cut them flush with the recess.
4. Drill new pilot holes and drive in new screws.

Repairing Damaged Wood Around Hinges

If the wood is too damaged for oversized holes, glue a thin strip of wood over the old recess, then fill, sand, and stain to match. For a fresh start, consider updating your space with new wall decor or rugs.

Frequently Asked Questions (FAQ)

1. Can I install pivot hinges on any door?

Yes, pivot hinges work on most wooden doors and shutters. For heavier doors, ensure you use enough hinges and proper chemical anchors. Browse our home improvement collection for all the hardware you need.

2. How many pivot hinges do I need for a three-leaf shutter?

A standard three-leaf shutter system requires nine pivot hinges — four at the corners with long arms for stability, and five along the edges.

3. What should I do if the hinge screws keep loosening?

Follow the repair steps above: remove the hinge, enlarge the holes, insert beech dowels, and install new screws. For a complete room refresh, check out our beds and mattresses for your bedroom.

4. How do I prevent a door from scraping the floor?

Add thin brass washers to the hinge pins. This lifts the door slightly without altering the frame. You can find these supplies in our home improvement section.

5. Can I install pivot hinges on exterior shutters?

Absolutely. Use corrosion-resistant hinges and outdoor-grade chemical anchors. For outdoor projects, explore our garden supplies and outdoor patio furniture to complete your exterior design.
