Water Meter Types and Reading: A Complete DIY Guide 2026

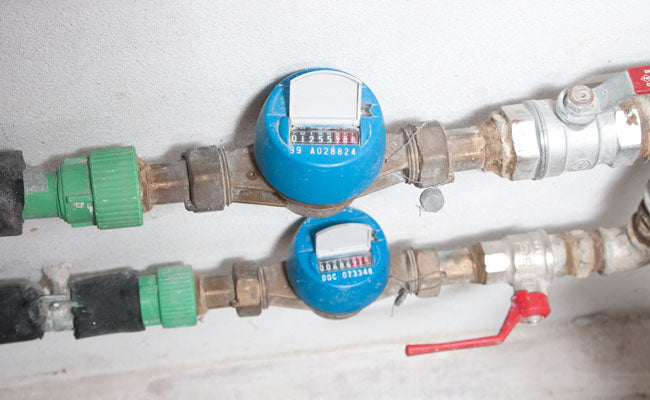

Water meters, like other devices for calculating private utility consumption, are installed by the service provider at the point where the domestic supply line begins. Shut-off valves are installed upstream and downstream of the meter to allow you to stop the water flow for maintenance or system modifications. As water passes through the meter body, it moves a system of shafts and gears connected to indicators that measure consumption with high precision. Users are not allowed to tamper with the main meter—it is sealed—but you can install additional meters along your home's plumbing line to measure and control consumption on different branches. This way, you can check how much water is used for watering the garden or washing the car, and more easily monitor for leaks. To install one of these devices, you need to shut off the flow on the relevant branch, cut a piece of pipe, and install the proper fittings at the meter's inlet and outlet. The straight sections of pipe at the inlet and outlet must be at least five times the nominal diameter of the meter. Now let's look at how to correctly read a water meter.

Types of Water Meters

Some older types of meters have both number wheels and dials. When reading, you should only consider the boxes with numbers or a black background. If the last box on the right has a red number or background, it indicates decimals and should be ignored. Start reading from the thousands of cubic meters dial and proceed to the next ones; the hands indicating hectoliters, decaliters, and liters should not be counted.

Modern direct-reading meters have a digital display that shows the total consumption clearly. These are much easier to read—just note the numbers from left to right, ignoring any red digits or the last digit if it is marked differently.

How to Install an Additional Water Meter

If you want to monitor water usage for specific areas like your garden irrigation system or an outdoor spigot, you can install a secondary meter. Here’s a step-by-step guide:

• Turn off the main water supply at the shut-off valve.
• Identify the branch line where you want to add the meter.
• Cut the pipe at the desired location, ensuring you have enough straight pipe on both sides (at least 5 times the meter's diameter).
• Install the appropriate fittings (e.g., compression fittings or threaded adapters) on both ends of the cut pipe.
• Attach the water meter to the fittings, making sure the flow direction arrow on the meter matches the water flow.
• Turn the water back on slowly and check for leaks.

For this project, you might need some home improvement tools like a pipe cutter, wrenches, and Teflon tape. If you're working outdoors, consider using garden supplies like a hose bib adapter.

Pressure Regulator

A pressure regulator is often installed after the main water meter to reduce high incoming water pressure to a safe level for your home's plumbing. This helps prevent damage to pipes, fixtures, and appliances. If you notice fluctuating water pressure or hear banging pipes, you may need to install or adjust a pressure regulator. It’s a straightforward home improvement task that can save you from costly repairs later.

Pulse Meter for Remote Reading

For those who want to monitor water usage remotely or integrate it with a smart home system, a pulse meter is an excellent choice. These meters generate an electrical pulse for each unit of water flow, which can be read by a data logger or home automation controller. They are especially useful for tracking consumption in real time and detecting leaks early. You can install a pulse meter on a dedicated branch line, such as for your garden watering system, and connect it to a display unit or your smartphone.

Frequently Asked Questions

1. Can I install a water meter myself?

Yes, you can install an additional water meter on your private plumbing line, but you must not tamper with the main utility meter. For most DIYers, it's a manageable project with basic plumbing skills and the right tools. Always check local regulations before starting.

2. How do I read a water meter with dials?

For analog meters, read the numbers on the dials from left to right, ignoring any red numbers or the last digit if it is highlighted. The dials with hands show smaller units (liters, etc.) and are typically used for testing or leak detection, not for billing.

3. What tools do I need to install a secondary water meter?

You'll need a pipe cutter, adjustable wrenches, Teflon tape, and possibly compression fittings or threaded adapters. If you're working with copper pipes, a tubing cutter and soldering equipment may be required. Browse our home improvement collection for all the necessary tools.

4. How can I detect a water leak using the meter?

Turn off all water-using appliances and fixtures in your home, then check the meter. If the dial or digital display continues to move, you likely have a leak. A secondary meter on a specific branch can help pinpoint the location, such as in the garden or outdoor spigot.

5. Do I need a permit to install an extra water meter?

In most areas, adding a secondary meter on your private plumbing does not require a permit, but it's always best to consult your local building department. For the main meter, only the utility company can make changes.
