DIY Bottle Washer: Craft an Efficient Homemade Bottle Rinser 2026

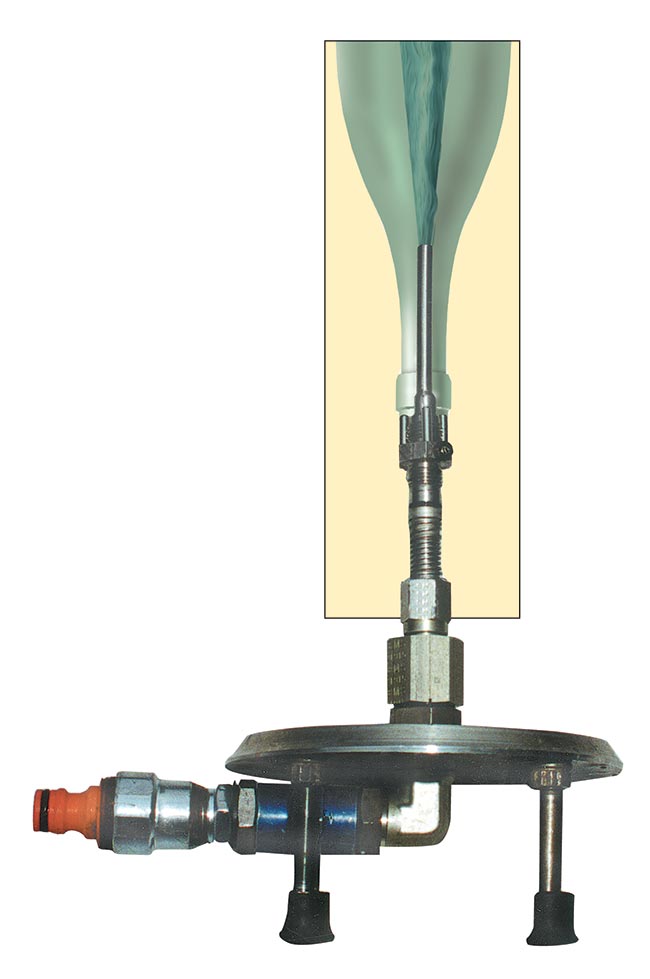

Anyone who has rinsed bottles at home or in a cellar knows it is less trivial than it seems. Some sinks are uncomfortable, making it hard to position a bottle properly under the stream. The stream is either too weak to clean crusty residue or too strong, splashing everywhere. The idea of a dedicated tool is smart, and our reader Giovanni Calvetto, likely inspired by bar glass washers, built an efficient DIY bottle washer using hardware, fittings, and gaskets he had at home. A metal plate with support feet keeps the system stable. It consists of a series of fittings that receive water from a hose and spray it upward through progressively narrower tubes, the last one perforated. The bottle is placed upside down, and pressing down releases a concentrated, pressurized jet for superior cleaning. The exact number of fittings is not fixed; what matters is the ingenious design, which can be replicated with different parts.

How to Build Your Own DIY Bottle Washer

Materials and Tools Needed

• Metal base plate with feet for stability
• Brass or galvanized pipe fittings (nipples, reducers, couplings)
• O-rings and springs for water seal and pressure
• Small diameter tubing (perforated at the top)
• Set screws (grub screws) and bolts
• Drill with bits (3mm, 4mm)
• Soldering iron and solder
• Rubber hose and hose clamp to connect to water supply

You can find many of these home improvement supplies at GrandGoldman to start your project.

Step-by-Step Assembly

1. Prepare the base: Secure a metal plate on small feet. This will hold the entire spray system. Browse durable home improvement gear for a sturdy base.
2. Build the bottle support: On a main fitting (3), insert three set screws (1) into non-through 4mm holes, soldering them in place. Add a lateral screw (2) through a threaded 3mm hole.
3. Assemble the spray tube stack: Insert a small tube (8) through two nipples (4,6) separated by an O-ring (5) and a spring (7). Solder one end of the tube to a fitting (9) with a 3.5x10mm slot. The nipples/O-ring ensure a water seal and guide the spring.
4. Attach the lower tube: Tighten a nut (10) at the bottom of the second tube, then insert another tube (11) with a 4x20mm slot for water passage.
5. Connect the water supply: Attach a rubber hose to the bottom fitting and secure it with a clamp.
6. Test and adjust: Turn on the water, place a bottle upside down over the top tube, and press down to activate the spray.

Why This DIY Bottle Washer Works So Well

The genius of this design lies in the pressure amplification. As water flows through progressively narrower tubes, its velocity and pressure increase. The perforated top tube directs a focused jet upward. When you press a bottle down, the spring-loaded mechanism opens the flow, delivering a powerful rinse that reaches every corner. This is far more effective than holding a bottle under a faucet. For your workshop or cellar, consider pairing this with a well-organized shed to keep all your DIY projects tidy.

Tips for Customizing Your Bottle Washer

• Use brass fittings for corrosion resistance in wet environments.
• Adjust the spring tension to match your water pressure.
• Add a quick-connect hose adapter for easy setup and storage.
• Mount the base on a work surface or bench for extra stability.

Frequently Asked Questions

Can I use this bottle washer for wine bottles?

Yes, it works perfectly for standard wine bottles, beer bottles, and even narrow-neck jars. The adjustable pressure makes it gentle enough for glass but strong enough to remove sediment.

What if my water pressure is low?

If your home water pressure is low, you can still build this washer. Use a shorter spring and ensure all seals (O-rings) are tight. Alternatively, connect it to a garden hose with a nozzle for added pressure.

How do I clean the washer itself?

Periodically run a mixture of warm water and vinegar through the system to dissolve mineral deposits. Disassemble the tubes and soak them in a mild cleaning solution for deeper cleaning.

Can I buy a pre-made bottle washer instead?

While commercial options exist, this DIY version is cost-effective and customizable. If you prefer ready-made solutions, check out kitchen carts and islands that often include built-in rinsing stations.

Is this project safe for someone with basic DIY skills?

Absolutely. The project requires basic drilling, soldering, and assembly. If you can handle simple home improvement tasks, you can build this washer in an afternoon.

Final Thoughts

This DIY bottle washer is a brilliant solution for home brewers, wine enthusiasts, and anyone who regularly cleans bottles. With just a few home improvement supplies and some creativity, you can build a tool that saves time and water. For more inspiration, explore garden supplies and sheds to organize your projects. Happy building!
