DIY Car Battery Charger in a Tool Case 2026

Starting from an old recovered transformer, you can build a DIY car battery charger inside a plastic tool case with adjustable voltage, capable of charging batteries from 6 to 24 volts. This guide will walk you through the process, from gathering materials to final assembly.

What You Need

To build this DIY car battery charger in a tool case, you'll need a mix of salvaged materials and a few purchased components. For the case itself, any sturdy home improvement plastic tool box will work. You’ll also need a 220-26 VAC transformer, a piece of plywood, two fuse holders, a switch, a power plug and cable, battery cables with clamps, internal wiring, and screws. Purchased items include a 5-34 VAC to 7-50 VDC rectifier module (around €18.99) and a voltage display module.

Building the Charger

Once you have all the parts, construction is mostly assembly. Start by cutting the plywood to fit inside the case. Drill holes in both the plywood and the plastic case for mounting components and for the display, fuse holders, and switch. Secure everything in place, then make the electrical connections. The result is a portable, powerful charger that rivals commercial models at a fraction of the cost.

Step 1: Prepare the Case

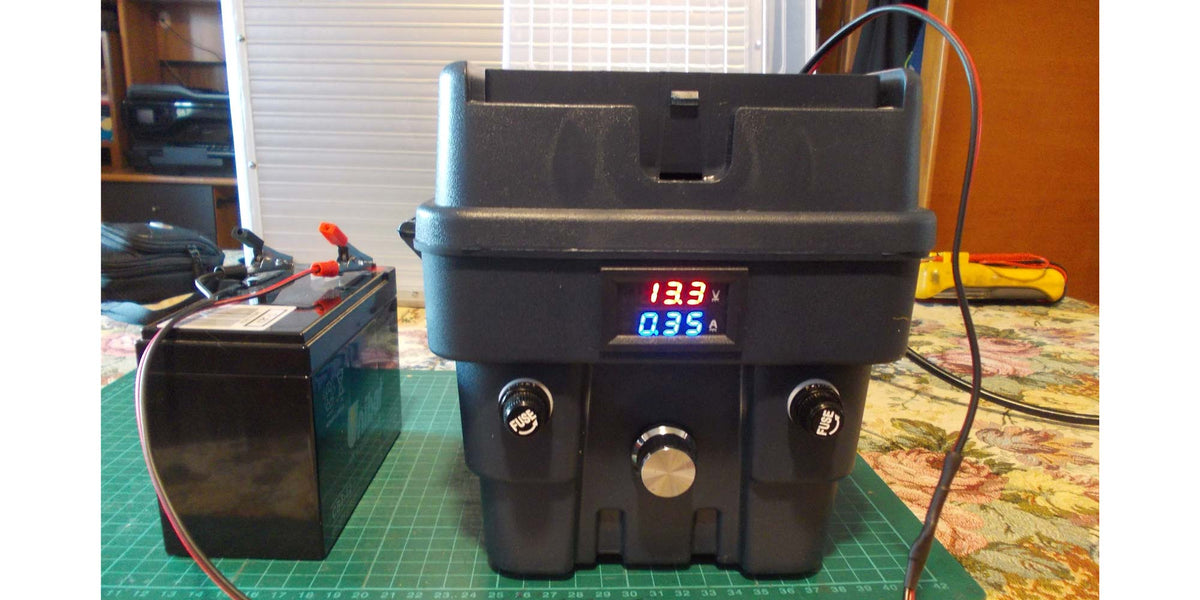

Choose a plastic tool case with a handle for easy transport. Drill a square window in the lid for the voltage display. The lid’s compartments can store the battery cables and power cord when not in use. For extra organization, consider adding storage benches or small bins inside your workshop.

Step 2: Mount the Transformer and Rectifier

Fix the transformer and rectifier module to the plywood base using screws. Ensure proper ventilation around the transformer to avoid overheating. If you’re working in a garage or outdoor area, garden supplies like work gloves and safety glasses are handy.

Step 3: Wire the Components

Connect the transformer output to the rectifier input, then wire the rectifier output to the battery clamps through a fuse holder. Install the switch on the input side for safety. Use home improvement wire connectors and heat shrink tubing for reliable connections.

Step 4: Test and Use

Before closing the case, test the charger with a multimeter. Adjust the voltage using the rectifier’s potentiometer to match your battery (6V, 12V, or 24V). Once tested, close the case and secure the lid. This charger is perfect for maintaining batteries in your sheds or workshop.

FAQ

Can I use this charger for lithium batteries?

No, this charger is designed for lead-acid batteries only. Lithium batteries require specific charging profiles to avoid damage.

What gauge wire should I use for internal connections?

Use at least 14 AWG wire for the main power circuits to handle up to 10 amps safely. Thinner wire may overheat.

How do I adjust the output voltage?

The rectifier module has a trim pot. Turn it while monitoring the output with a voltmeter to set the desired voltage (e.g., 13.8V for a 12V battery).

Can I add a cooling fan?

Yes, if your transformer runs hot, you can install a small 12V fan. Power it from the rectifier output or a separate supply.

Where can I find the rectifier module?

The module is widely available online. While you wait for delivery, browse lighting options to brighten your workspace.

Tips for Best Results

• Use a high-quality transformer from an old appliance for reliability.
• Label the fuse holders with their amp ratings for safety.
• Store the charger in a dry place; consider a greenhouse or shed for protection.
• Pair this project with a desk or work surface for a dedicated charging station.
• For outdoor use, add outdoor lighting to see connections clearly at night.

This DIY charger is a rewarding project that saves money and gives you a custom tool. With home improvement basics and a bit of patience, you’ll have a reliable charger for years to come.
