How to Replace a Roller Shutter Step by Step 2026

When the problem isn't just the cord, you may need to replace the entire roller shutter. Here's how to do it.

Step-by-Step Roller Shutter Replacement

Removing the Old Shutter

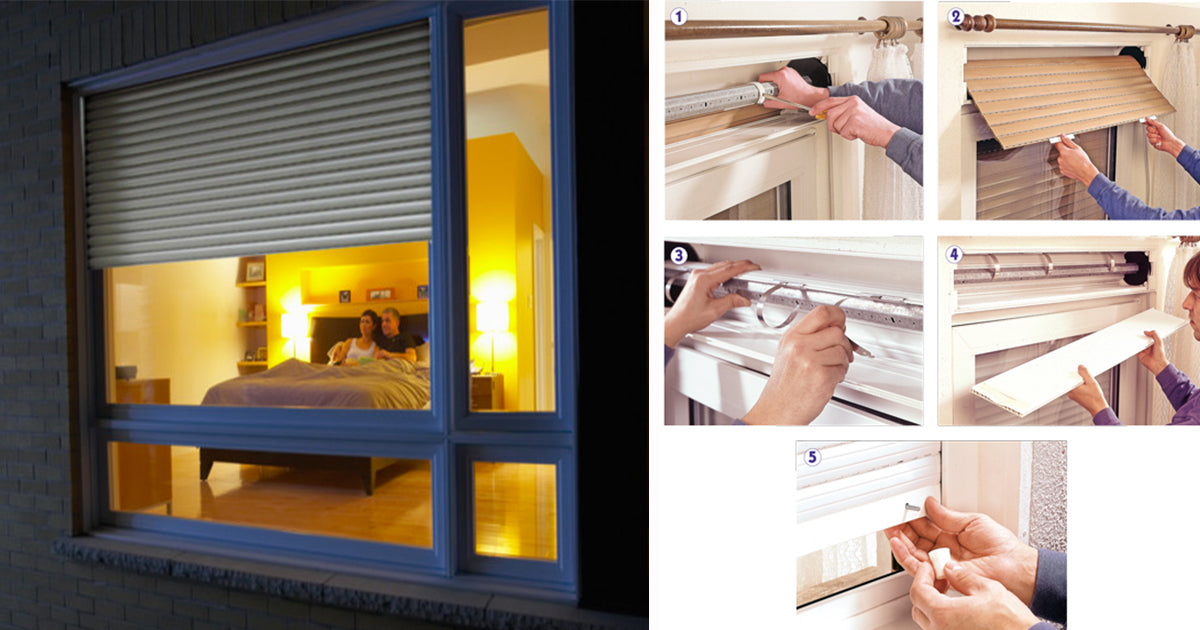

To access the roller, remove the cover of the housing compartment, which is snap-fitted into two horizontal grooves. Push the roller upward about one centimeter, alternating pressure on the side ends, then pull it outward from the lower side and slide it out. When reassembling, don't confuse the upper side with the lower side, as the grooves have different sizes: the upper one is deeper.

Insulated Slats

The best slats today are those filled with insulating material: they offer excellent thermal insulation and are less prone to moisture. For a complete upgrade, consider pairing your new shutter with home improvement essentials to boost energy efficiency.

Replacing the Cord

The cord replacement must be done with the shutter raised. If the cord broke accidentally, the upper piece is likely fully wound on the roller. To raise the shutter, retrieve the end, pass it through the slot in the housing, and pull. Similarly, extract the other piece from the lower return spring by unscrewing the two screws that hold the winder device to the wall. Insert the new cord through the slot at the bottom of the roller housing, then into the pulley groove, and secure it with a double knot. Lower the shutter; before securing the cord to the return roller at the bottom, rotate it clockwise to tension the spring. Use a screwdriver inserted sideways to hold it while you adjust the cord.

Replacing the Old Shutter with a New One

If the dark color clashes with your exterior wall, the movement has become stiff, or the shutter no longer aligns when lowered, it's time for a replacement. The straps connecting the shutter are fixed to the roller with self-tapping screws. Unscrew them, slide the shutter out, and remove it from the roller housing. When connecting the three straps, adjust their length to distribute the load evenly. To position the closing cover, identify the upper side and push it upward into the groove.

Tips for a Smooth Installation

• Always measure the width and height of the existing shutter before buying a replacement.
• Use a sturdy ladder and have a helper for heavy or long shutters.
• Lubricate the side tracks with silicone spray to ensure smooth operation.
• Check the condition of the roller and brackets; replace them if worn.

Frequently Asked Questions

How do I know if I need to replace the whole shutter or just the cord?

If the shutter is crooked, stuck, or the slats are damaged, replacement is usually needed. If only the cord is broken and the shutter is otherwise fine, just replace the cord.

Can I replace a roller shutter myself?

Yes, with basic tools and careful measurement, it's a manageable DIY project. However, for very large or motorized shutters, professional help is recommended.

What tools do I need for the job?

You'll typically need a screwdriver, measuring tape, ladder, and possibly a drill. For garden supplies and outdoor projects, a good tool kit is invaluable.

How do I measure my old shutter for a replacement?

Measure the width across the slats and the height from the top of the roller to the bottom of the bottom bar. Also note the diameter of the roller and the type of end fittings.

Should I choose insulated slats?

Yes, insulated slats provide better thermal and acoustic insulation, reduce condensation, and improve overall comfort. They are especially recommended for bedrooms and living areas where you might also shop for curtains to complement the look.
