DIY Log Lifter: Build a Heavy-Duty Flag-Style Hoist for Your Tractor 2026

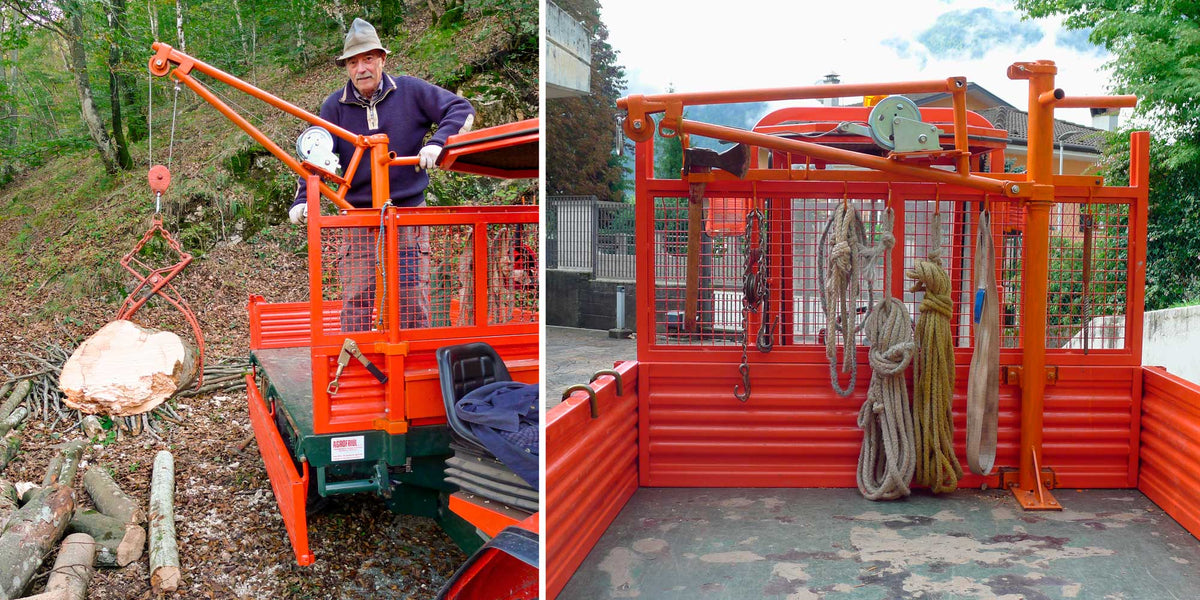

Living in mountainous or hilly areas often means relying on wood-burning heating systems, and many people take care of felling trees and cutting logs themselves in their spare time. After trimming and cutting logs to length on-site, you still need to load them onto a tractor to bring them home and finish the job with a hydraulic log splitter. But when you're moving pieces weighing several tens of kilos, the effort is considerable, even with two people. That's why we're building a DIY flag-style log lifter with a winch, to be securely mounted on the front of the flatbed (just behind the cab), making loading and unloading logs much less strenuous.

All the materials used for this DIY log lifter—mainly iron tubing and thick plate steel—are salvaged. Only the manual winch was purchased from a hardware store. The swiveling arm slides easily onto the upright post, which is securely and safely fixed to the bed and side panel but can be disassembled when needed. The lower part of the arm has a stop that limits the working angle, and rotation is controlled by this stop acting on a cam welded to the post. This solution is very useful when loading on slopes, as the arm stays in place without needing to be held manually. Once loading is complete, you can lift it enough to position it at the end of its travel, then remove the top bolt (secured with a wing nut) and fold the flag into the latch that locks it for the return trip.

The flag of the lifter can be detached from the post so it can be lowered and secured to the over-side frame, ensuring it doesn't protrude past the cab and allows for safe travel.

Turning, Shaping, and Welding

Start by cutting the iron tubing and plate to size according to your tractor's bed dimensions. The upright post should be welded to a sturdy base plate that bolts securely to the bed. The swiveling arm needs a bushing or bearing surface to rotate smoothly on the post. Weld the cam and stop mechanism precisely to ensure controlled rotation. For the winch mount, reinforce the area with extra plate steel. If you're working on your home improvement projects, having the right tools and hardware is essential. Consider browsing garden supplies for durable ropes or straps to complement your winch setup.

Key Components and Assembly Tips

• Upright Post: Use thick-walled steel tubing. Weld a heavy base plate and reinforce with gussets. Bolt it securely to the tractor bed.
• Swiveling Arm (Flag): Cut to length based on your typical log size. Weld a pivot sleeve that fits snugly over the post.
• Winch Mount: Position the manual winch near the base of the arm for leverage. Weld a strong bracket.
• Stop and Cam Mechanism: This is critical for safety. Weld the cam to the post and the stop to the arm so rotation is limited and the arm stays put on slopes.
• Folding Hinge: Add a hinge near the post so the flag can be folded down for transport. Use a bolt and wing nut for quick release.

Once assembled, test the lifter with lighter loads before tackling heavy logs. For additional comfort during long days outdoors, consider outdoor patio furniture for a well-deserved break. Good lighting around your work area can also make evening repairs safer and easier.

Frequently Asked Questions

Can I use this lifter on any tractor?

Yes, with modifications to the base plate and mounting points. Measure your tractor bed and cab clearance carefully. The design is adaptable for most utility tractors.

What type of winch should I use?

A manual worm-gear winch with a minimum 1,000 lb (450 kg) capacity is recommended. Make sure it has a brake or locking mechanism for safety.

How do I ensure the lifter doesn't tip over when lifting heavy logs?

Secure the base plate with high-strength bolts through the tractor bed. The weight of the tractor itself provides stability. Always lift with the log close to the pivot point.

Can I add a hydraulic system instead of a manual winch?

Absolutely. If you have hydraulic remotes on your tractor, you can replace the manual winch with a hydraulic cylinder for easier operation. This would require additional welding and plumbing.

Where can I find replacement parts or accessories for my DIY project?

Check out home improvement and garden supplies for durable hardware, straps, and safety gear. For organizing your tools, a shed or storage bench can keep everything tidy.

This DIY log lifter is a game-changer for anyone processing firewood. By using salvaged materials and a few purchased components, you save money and effort. Pair it with a good BBQ grill for an outdoor cooking setup after a hard day's work, or relax under a pergola once the wood is stacked. For keeping your workspace organized, consider desks and work surfaces or bookcases and shelving units for your garage or shed. After a long day, a comfortable mattress ensures you wake up ready for the next project.
