How to Safely Insulate an Outdoor Electrical Outlet 2026

Installing an electrical outlet outdoors is undeniably convenient, but it's crucial to ensure it is properly insulated against weather and dust. Here's a complete guide to doing it safely.

Why Insulate an Outdoor Electrical Outlet?

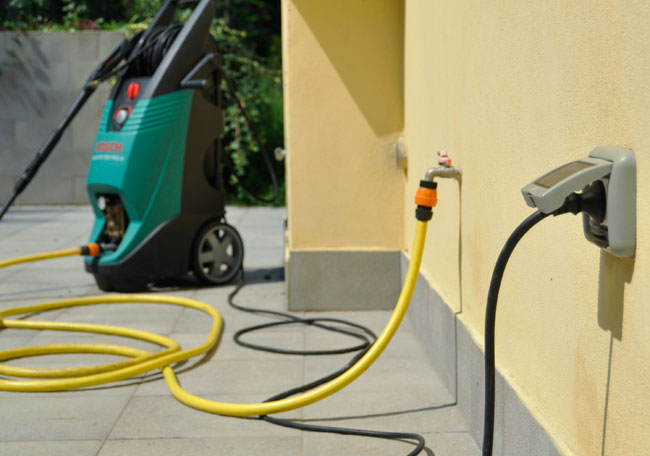

If you want peace of mind about the correct functionality of an outdoor electrical outlet, insulation is key. Outdoors, all electrical controls (switches, sockets, etc.) must be watertight (at least IP44) to prevent rain from causing dangerous short circuits or electrocution. Watertight electrical controls are completely safe, featuring special sealing gaskets and a spring-loaded cover made of transparent rubber. The electrical wires are brought to the installation point via a conduit (either surface-mounted or recessed).

How to Insulate an Electrical Outlet: Step-by-Step Guide

Before starting, ensure you have the right home improvement tools on hand, including a voltage tester, screwdrivers, and wire strippers.

Step 1: Disconnect the Power

Turn off the power at the main electrical panel. Use a voltage tester to confirm the circuit is dead before touching any wires.

Step 2: Remove the Old Outlet

Using a screwdriver, remove the faceplate and unscrew the old outlet from the electrical box. Carefully pull it out and disconnect the wires.

Step 3: Install New Watertight Components

Insert new weatherproof outlets into the faceplate. It's a good idea to install both a bivalent outlet (which accepts both 10A and 16A plugs) and a Schuko outlet, which is ideal for high-power appliances. For a complete upgrade, consider browsing lighting and electrical accessories to match your setup.

Step 4: Create Jumper Wires

Between the two outlets, create power jumpers using short pieces of insulated electrical wire (ground, live, neutral). This ensures both sockets receive power.

Step 5: Connect the Main Wires

Connect the live, neutral, and ground wires from your home's electrical system to one of the two outlets. The jumpers you made will feed power to the second outlet.

Step 6: Reassemble and Seal

Reposition the faceplate and tighten the screws on the protective cover. The cover will shield the outlet from rain, dust, and debris. For extra protection, consider adding outdoor decor elements like a small awning or weatherproof box.

Essential Safety Tips

• Always cut power at the main breaker before working on any electrical system.
• Use only IP44 or higher rated outdoor outlets and covers.
• Ensure all connections are tight and properly insulated with electrical tape.
• If you're unsure, consult a licensed electrician.

Frequently Asked Questions (FAQ)

1. What does IP44 mean for outdoor outlets?

IP44 means the outlet is protected against solid objects larger than 1mm (like tools and small wires) and splashing water from any direction. This is the minimum rating for outdoor use.

2. Can I use a standard indoor outlet outside?

No. Standard indoor outlets lack weatherproofing and can cause short circuits or electrocution when exposed to moisture. Always use a watertight outlet with a spring-loaded cover.

3. Do I need a special box for outdoor outlets?

Yes. Outdoor outlets require a weatherproof electrical box and a cover that seals when not in use. Some covers are designed to allow cords to exit while still protecting the outlet.

4. What tools do I need for this project?

You'll need a voltage tester, screwdrivers, wire strippers, electrical tape, and possibly a drill for mounting. Check out the home improvement collection for quality tools.

5. How do I test the outlet after installation?

Restore power and use a plug-in tester or multimeter to verify that the outlet is wired correctly and providing power. For more advanced diagnostics, a multimeter from our store can help you check voltage and continuity.
