DIY Chipper Shredder: Build It with a Washing Machine Motor 2026

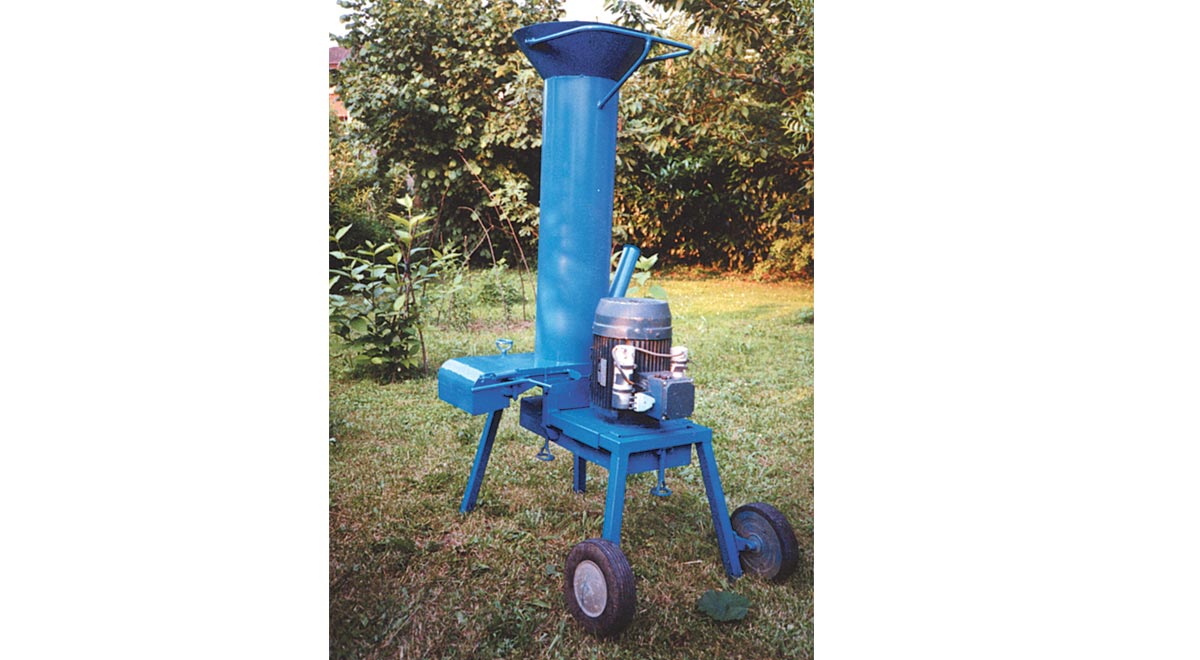

This powerful DIY chipper shredder, also known as a homemade branch shredder, turns brush and weeds into excellent fertilizing material. It is dismountable, very manageable, and consists of 4 main parts: the motor group, the base, the cutting group, and the feed hopper.

How to Design a DIY Chipper Shredder

What You Need to Build a DIY Chipper Shredder

• A washing machine electric motor of at least 1.5 kW
• A transmission system to achieve at least 2500 rpm
• 6 m of 30x30x2 mm iron tube
• 5 mm sheet metal: 1 piece 300x300 mm and 1 piece 300x450 mm
• 6 mm sheet metal: 1 piece Ø 200 mm
• 1.5 mm sheet metal: 1 piece 850x600 mm and 1 piece 300x200 mm
• 1 sheet of 2.5 mm sheet metal for the hopper
• Leaf spring pieces for pre-cutting knives
• 2 tempered steel knives
• 2 shaped knife holders from 5 mm sheet metal
• 50 mm of hexagonal tube Ø 20 mm
• 1 flange with 4 holes Ø 45/50 mm
• 40 mm of hexagonal bar Ø 17 mm
• 1 washing machine drum support with flange attachment
• 2 m of iron Ø 10 mm
• 1 m of iron Ø 14 mm
• 2 M8 threaded rods
• 1 M6 threaded rod
• M6 and M8 hexagon socket screws and hex head screws
• 500 mm of iron tube with Ø 8 mm inner diameter for bushings
• Flat bar pieces for plates
• 1 spring
• 1 Ø 6 wing nut
• 2 fuses
• 1 indicator lamp
• 1 16 A 2P+T plug
• 1 bipolar switch
• 3x2.5 mm² electrical cable
• 2 rubber wheels Ø 200/250 mm
• Rust primer
• Enamel paint

Which Motor to Choose for Building a DIY Chipper Shredder

The garden shredder motor must have at least 1.5 kW and 1500 rpm; since we need higher speed, we build a transmission using two pulleys: the drive pulley has Ø 190 mm and is keyed onto the motor shaft, the driven pulley has Ø 100 mm and is screwed to the cutting group; the speed is 2850 rpm.

For all your home improvement needs, including power tools and electrical components, check out our selection.

The Motor Support of the Homemade Chipper

The motor is mounted on a sturdy base made from iron tube and sheet metal. Ensure the base is vibration-resistant and allows easy belt tension adjustment. You can find durable sheds and workshop storage solutions to keep your tools organized.

How to Prepare the Cutting Group of the DIY Branch Shredder

The cutting group consists of a steel disc with two tempered steel knives and pre-cutting knives made from leaf spring pieces. The disc is mounted on a shaft supported by bearings. For safety, always use proper protective equipment. Browse our garden supplies for gloves, safety glasses, and more.

The Hopper

The hopper is made from 2.5 mm sheet metal and should be angled to safely feed branches into the cutting chamber. A wide opening makes it easy to insert material. Pair your shredder with a sturdy storage bench for convenient outdoor tool storage.

Tips for Buying a Chipper Shredder

If building your own seems too complex, consider purchasing a ready-made chipper shredder. Look for models with at least 2.5 kW power, a reliable cutting system, and easy mobility. You can also explore our outdoor patio furniture to create a comfortable garden workspace.

Frequently Asked Questions

Can I use any washing machine motor for this project?

Yes, but it must be at least 1.5 kW and 1500 rpm. Older washing machines often have suitable motors. Check our home improvement collection for electrical supplies and connectors.

How do I maintain the homemade shredder?

Regularly sharpen the knives, check belt tension, and lubricate bearings. Apply rust primer and enamel to prevent corrosion. For garden maintenance, consider our garden supplies.

What safety precautions should I take?

Always wear safety glasses, gloves, and hearing protection. Keep hands away from the hopper and use a push stick for small branches. Our outdoor decor collection includes practical items like garden signs and safety gear.

Can I shred wet branches?

It is best to shred dry branches to avoid clogging. Wet material can also dull knives faster. A greenhouse can help you dry and store plant material before shredding.

Where can I find replacement knives?

Tempered steel knives can be sourced from hardware stores or online. You can also check our home improvement section for cutting tools and accessories.
