DIY Modular Wooden Bench: Step-by-Step Building Guide 2026

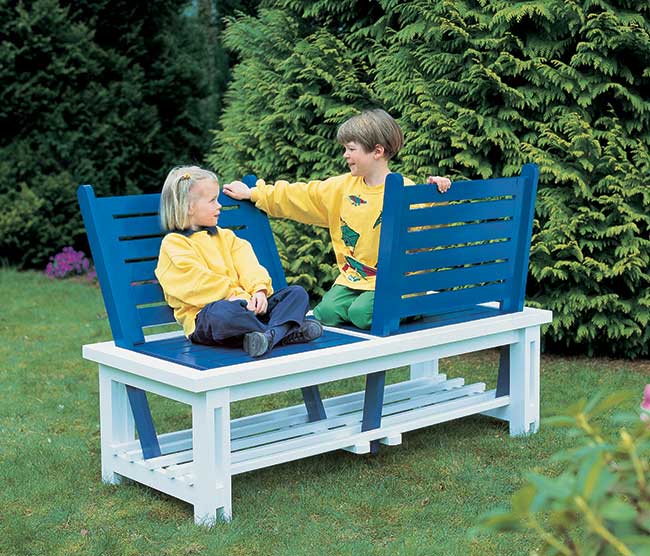

This DIY wooden bench is designed for two people, featuring a perfectly flat horizontal seat and separate backrests that, with a simple push, can be folded down on one side or the other, allowing both to sit facing one direction, the opposite direction, or vis-à-vis. Moreover, for maximum comfort, this DIY wooden bench also lets you adjust the inclination like a deck chair: just lift the backrest slightly and guide the base of its uprights into another pre-set slot in the lower rack.

What You Need to Build a DIY Wooden Bench

• Pine section 40×70 mm: 2 seat planks stringers 1472 mm, 2 seat planks crosspieces + 4 seat frame crosspieces 450 mm
• Pine section 26×70 mm: 8 half legs 420 mm
• Pine section 26×58 mm: 8 leg crosspieces 420 mm, 2 under-plan stringers 1222 mm, 4 backrest uprights 900 mm, 2 rack crosspieces 460 mm
• Pine section 26×26 mm: 5 rack slats 1408 mm
• Pine section 18×58 mm: 4 backrest frame elements 470 mm, 12+12 seat and backrest slats 484 mm
• Pine section 18×40 mm: 4 lower seat crosspieces 450 mm, 1 central seat plan crosspiece 450 mm
• Pine thickness 28 mm: 8 leg frame spacers 58×70 mm. Dowels: 76 Ø 8×35 mm
• Screws: 48 of 3×30 mm, 34 of 4×45 mm, 48 or 68 of 4×75 mm
• Nails: 20 of 50 mm
• Exterior glue
• Finishing materials

Design of the Modular Wooden Bench

The Structure of the DIY Wooden Bench

The DIY wooden bench is made from boards and slats of various sections. The seat is built as a frame with two separate seats and features, on each side, a sliding and interlocking system that allows the backrests to be reversed and set at different inclinations. For a comfortable outdoor seating area, consider complementing your bench with outdoor patio furniture from GrandGoldman.

Building the Frame

• Start by assembling the leg frames using the half legs, leg crosspieces, and spacers. Use dowels and screws for sturdy joints.
• Attach the under-plan stringers to the leg frames to create the base structure.
• Build the seat frame with the planks stringers and crosspieces, ensuring it's perfectly horizontal.

Creating the Rack System

The rack is made from the rack crosspieces and slats. This component allows the backrests to slide and lock at different angles. For additional home improvement projects, explore GrandGoldman's collection for tools and materials.

Assembling the Backrests

• Construct the backrest frames using the backrest frame elements and backrest uprights.
• Attach the seat and backrest slats to the frames, spacing them evenly for comfort and aesthetics.

Step-by-Step Construction Sequence

1. Cut all wood pieces to the specified dimensions.
2. Assemble the leg frames and attach the under-plan stringers.
3. Build the seat frame and secure it to the leg assembly.
4. Construct the rack system and install it beneath the seat.
5. Assemble the backrest frames and attach the slats.
6. Install the backrests into the rack, ensuring smooth sliding and locking.

How to Build a Wooden Bench

Follow these key steps for a successful build. Use exterior glue and stainless steel screws to withstand weather conditions. Sand all edges smooth and apply a protective finish. To enhance your outdoor space, browse garden supplies for planters and decorations.

Construction Tips for the DIY Wooden Bench

• Pre-drill all screw holes to prevent wood splitting.
• Use a level to ensure the seat is perfectly horizontal.
• Test the backrest sliding mechanism before final assembly.
• Apply a weather-resistant finish for longevity.

Frequently Asked Questions

Can I customize the bench dimensions?

Yes, you can adjust the lengths of the stringers and slats to fit your space. For a matching dining set, consider dining tables from GrandGoldman.

What type of wood is best for outdoor use?

Pine is a good choice if treated with exterior finish. For more durability, consider cedar or teak. Check out outdoor decor for complementary items.

How do I maintain the bench?

Reapply a protective finish annually and store cushions indoors. For comfortable seating, add sofas or other furniture from GrandGoldman.

Can I use this design for a larger bench?

Yes, scale up the dimensions proportionally and reinforce the frame. For additional seating, explore storage benches.

What tools are required?

You'll need a saw, drill, screwdriver, sandpaper, measuring tape, and clamps. For lighting your workspace, see lighting options.
