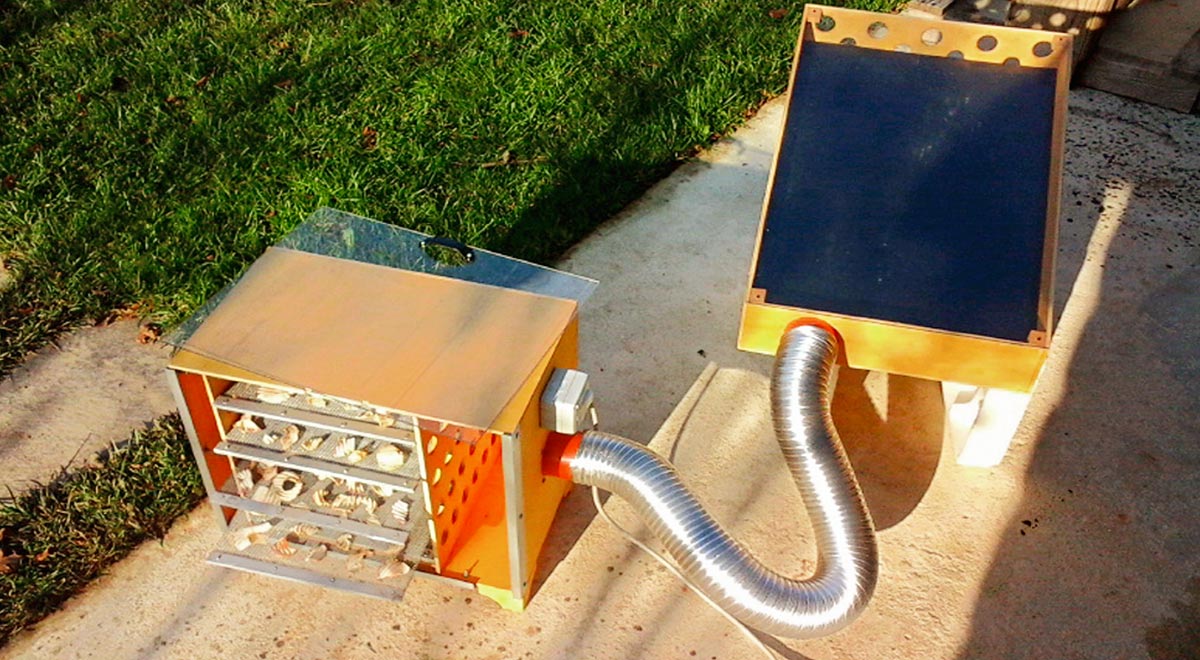

Among the many readers over 40, it's always a pleasure to occasionally feature a young maker. Simone Moino, age 20, built a DIY solar dehydrator on a shoestring budget, inspired by commercial models but with a twist: the air is not heated by an electric element but by the sun, using a preheater connected to the dehydrator via a flexible duct (like those used for boiler exhaust).

Better still, the fan that draws air into the dehydrator—originally mains-powered—can be connected to a small photovoltaic panel, making the entire process run with zero electricity consumption, completely sustainable.

Food dehydration (drying) is a way to preserve certain foods (mushrooms, vegetables, fruit, herbs, meat, fish) after slicing. In some ways it's better than freezing, because freezing inevitably causes loss of some nutritional properties. Some people simply expose food to the sun, but that also leads to nutrient loss. The best way to dehydrate is in a protected environment with a flow of hot air for several hours. After drying, some products can be eaten as is; others just need rehydration and, if needed, cooking.

Measurements

• Heating body (trapezoidal): base 60 cm, max height 36 cm, min height 11 cm, sloping side 65 cm, width 45 cm, hot air outlet hole diameter 8 cm.
• Drying chamber: height 40 cm + feet, length 50 cm, width 31 cm.

How to Build a Solar Dehydrator

Step 1: Prepare the Materials

Gather plywood, polycarbonate sheet (or glass), black paint, a small DC fan, flexible duct, and a solar panel (optional). For the drying trays, you can use stainless steel mesh or food-safe plastic netting. Check out our home improvement collection for tools and supplies.

Step 2: Build the Solar Preheater

Cut the plywood to form a trapezoidal box. Paint the interior matte black to absorb maximum solar radiation. Cover the top with polycarbonate or glass to create a greenhouse effect. The box should have an inlet for fresh air and an outlet (8 cm diameter) for the heated air.

Step 3: Construct the Drying Chamber

Build a rectangular box from plywood (40 cm high, 50 cm long, 31 cm wide). Add feet for stability. Install sliding rails or ledges inside to hold the drying trays. You can find durable storage benches that double as seating and storage, but for this project, a custom wooden box works best.

Step 4: Install the Drying Trays

Cut mesh to size and attach to wooden frames. Space the trays about 10 cm apart to allow airflow. For food safety, use stainless steel or food-grade plastic mesh.

Step 5: Connect the Preheater to the Chamber

Use a flexible duct (8 cm diameter) to connect the hot air outlet of the preheater to an inlet at the bottom of the drying chamber. Secure with clamps. For weatherproofing, consider garden supplies such as silicone sealant.

Step 6: Add the Exhaust Vent

Drill a vent hole near the top of the drying chamber to allow moist air to escape. Cover with fine mesh to keep insects out.

Step 7: Install the Fan

Mount a small DC fan at the fresh air inlet of the preheater. This fan will push air through the system. If you have a solar panel, connect the fan directly to it for off-grid operation. Our outdoor lighting and solar accessories can complement your setup.

Step 8: Paint and Seal

Paint the entire dehydrator with weather-resistant paint (black for the preheater, any color for the chamber). Seal all joints to prevent heat loss.

Step 9: Position the Dehydrator

Place the preheater facing south (in the northern hemisphere) at an angle to maximize sun exposure. The drying chamber should be nearby, preferably on a level surface like a patio furniture table or bench.

Step 10: Test the Airflow

Turn on the fan and check that air flows from the preheater into the chamber and out the exhaust. Adjust fan speed if needed.

Step 11: Prepare Food for Drying

Slice fruits, vegetables, or herbs thinly (3–5 mm). Blanch vegetables like green beans or carrots to preserve color and nutrients.

Step 12: Load the Trays

Arrange food in a single layer on the trays, leaving space between pieces for air circulation. Don't overload.

Step 13: Start Drying

On a sunny day, the dehydrator can reach 50–60°C (122–140°F). Drying times vary: herbs take 2–4 hours, sliced apples 6–8 hours, tomatoes 10–12 hours. Check periodically.

Step 14: Store the Dried Food

Once completely dry (leathery or brittle), let the food cool, then store in airtight jars or vacuum bags. Keep in a cool, dark place. You can organize your pantry with kitchen islands and carts for extra storage.

Step 15: Maintain Your Dehydrator

Clean the trays and chamber after each use. Store the dehydrator in a dry place when not in use. For year-round drying, consider adding a small outdoor heater to boost temperatures on cloudy days.

Features of the Horizontal-Flow Solar Dehydrator

• Zero energy cost when paired with a solar panel and DC fan.
• Preserves nutrients better than sun-drying or freezing.
• Simple construction with basic tools and materials.
• Portable and can be scaled up for larger batches.
• Durable if built with weather-resistant materials.

How the Air Is Preheated in the DIY Solar Dehydrator

The solar preheater works like a miniature greenhouse: sunlight passes through the transparent cover (polycarbonate or glass) and heats the black interior. The fan draws cool air in from the bottom, which warms up as it passes over the hot black surface, then exits through the flexible duct into the drying chamber. This continuous flow of warm air removes moisture from the food.

FAQ

1. Can I use this dehydrator in winter?

Yes, but drying times will be longer. On sunny winter days, the interior can still reach 40–50°C. You can boost performance with a small outdoor heater placed near the intake.

2. What foods can I dehydrate?

Almost anything: fruits (apples, bananas, mangoes), vegetables (tomatoes, peppers, zucchini), herbs (basil, oregano, mint), and even lean meats (beef jerky). Avoid high-fat foods like avocado or bacon.

3. How do I know when the food is fully dry?

Fruit should be leathery and pliable with no sticky spots. Vegetables should be brittle or crisp. Herbs should crumble easily. If in doubt, cut a piece in half—there should be no moisture beads inside.

4. Do I need a solar panel?

No, you can use a mains-powered fan, but a small solar panel makes the dehydrator fully off-grid. A 10W panel is sufficient for a small DC fan.

5. How long does the dehydrator last?

With proper care (painting, sealing, and storing indoors), a plywood dehydrator can last 3–5 years. For longer life, use exterior-grade plywood or metal. You can find durable sheds and greenhouses for inspiration on weatherproofing.
