Building your own DIY wooden patio umbrella is a rewarding project that combines craftsmanship with outdoor functionality. While the joint mechanism requires careful attention, it can be accomplished with basic hand tools. This guide covers the entire process, from selecting materials to assembling the frame and base.

Whether you're creating a classic six-rib umbrella or a custom rectangular shade, the techniques remain the same. For eight-rib versions, pre-drilled home improvement supplies and wooden slats for louvers are readily available. Oval or rectangular designs simply require longer flexible ribs and proportional adjustments to the canopy panels.

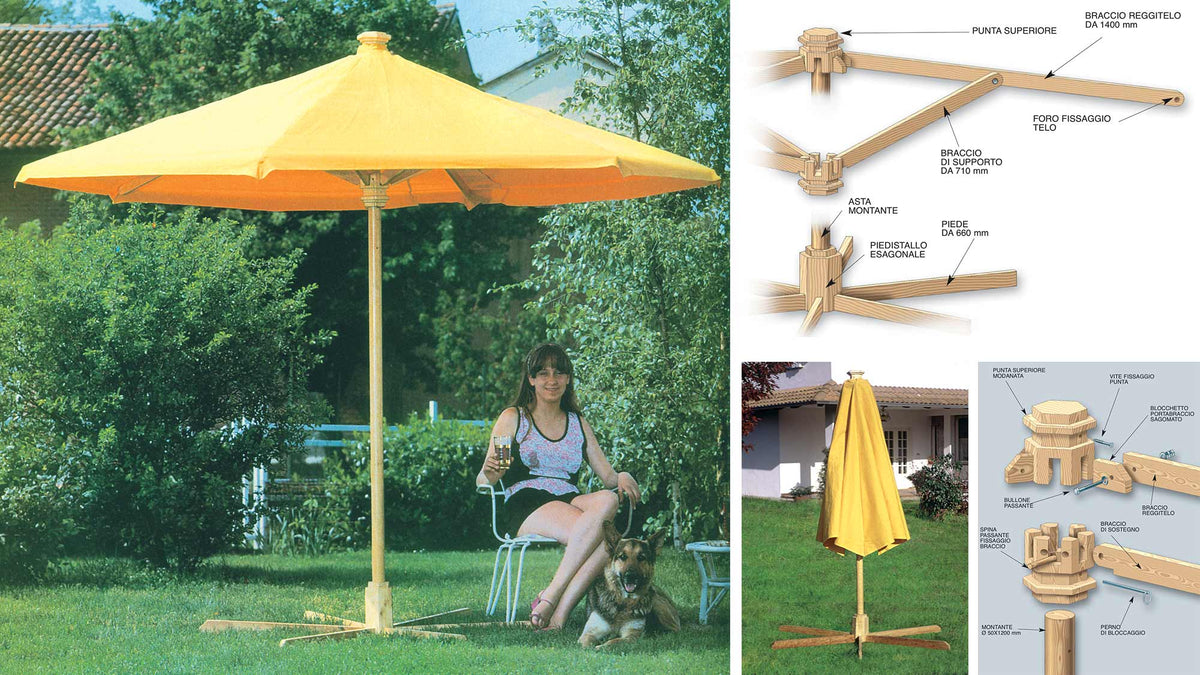

The umbrella consists of a pole, a top hub, a sliding hub, six long ribs, six short ribs, a base, and a fabric canopy. Apart from the textile cover and a few metal fasteners, the entire structure is made of wood. Use only hardwood for the umbrella frame (beech, hornbeam, walnut, acacia, or similar for the hubs; ash or acacia for the long ribs; beech or ramin for the pole and short ribs). The base can be made from softwood treated with water-repellent and anti-mold products.

Detailed Construction of a DIY Wooden Umbrella

The Hubs

The ramin pole, about two meters long, should have a diameter matching the hole saw used to bore lengthwise through the hubs for convenience.

The top hub is fitted onto one end of the pole and locked in place with a through-pin (wood or metal) to prevent rotation. From the outer surface of the hub, evenly spaced supports protrude, onto which the long ribs are hinged. These supports can also be made from 5×15 mm metal strips bent into a U-shape (40+15+40 mm).

The sliding hub is the most complex piece, but its construction is detailed in the photo sequence below. The articulation of the short ribs can be done, as in industrial umbrellas, with a 2 or 2.5 mm diameter metal wire that passes through holes in the ribs and penetrates a groove cut into the hub.

The Ribs

The long ribs must be flexible yet strong. Ash or acacia wood works best. The short ribs, often made of beech, connect the sliding hub to the long ribs. For a sturdy setup, consider pairing this project with outdoor patio furniture to create a cohesive relaxation area.

The Base

A stable base is critical. You can build a wooden cross base or use a heavy stone or concrete block. For added convenience, browse garden supplies for pre-made umbrella bases or weighted stands that complement your DIY build.

Step-by-Step: Making the DIY Wooden Umbrella

1. The Skeleton

Start by cutting the pole to your desired height (typically 2–2.5 meters). Sand all wooden parts smooth. Drill the central hole through both hubs using a hole saw that matches the pole diameter. Assemble the top hub onto the pole and secure it with a pin.

2. The Hubs

For the sliding hub, cut a groove around its circumference to accommodate the wire that will hold the short ribs. Drill small holes through the short ribs and the groove. Thread a 2 mm stainless steel wire through the holes and around the hub, then crimp or twist it closed. This allows the ribs to pivot smoothly.

3. Ribs and End Hub

Attach the long ribs to the top hub using screws or bolts that act as pivots. The short ribs connect the sliding hub to the mid-point of the long ribs. Finally, attach the fabric canopy. You can sew your own or repurpose a large outdoor fabric. For a quick solution, check outdoor decor for ready-made canopy covers that might fit your frame.

Frequently Asked Questions (FAQ)

What type of wood is best for the umbrella ribs?

Ash or acacia is ideal for the long ribs due to their flexibility and strength. Beech or ramin works well for the pole and short ribs. Always use hardwood for the hubs to prevent splitting.

Can I make a rectangular or oval DIY umbrella?

Yes. Simply lengthen half of the flexible ribs and adjust the canopy panel dimensions proportionally. The hub and base construction remains the same.

How do I prevent the wood from rotting outdoors?

Treat all wood with a water-repellent sealer and an anti-mold finish. Use stainless steel or galvanized hardware. When not in use, store the umbrella in a dry place or use a protective cover from outdoor lighting and accessory collections to extend its life.

What tools do I need for this project?

Basic tools include a saw, drill with hole saw attachment, sandpaper, screwdriver, measuring tape, and clamps. For cutting the hub groove, a chisel or a small router works well.

Can I buy a pre-made base instead of building one?

Absolutely. A heavy-duty pre-made base ensures stability. Explore storage benches that double as seating and umbrella bases, or choose a dedicated weighted stand from garden supplies.
