DIY Rotisserie for Skewers: Build a 48-Skewer Automatic BBQ Spit 2026

Ideal for crowded barbecues, this DIY rotisserie lets you brown up to 48 skewers at the same time, rotating slowly and fully automatically over the coals.

"Arrosticini" are long skewers loaded with meats and vegetables. The browning process involves rotating them near a bed of hot coals, and when you're cooking a large batch, achieving even cooking by hand becomes a real challenge—the heat is simply too intense. That's why we'll build an automated DIY rotisserie where up to 48 skewers are all driven by a single electric motor.

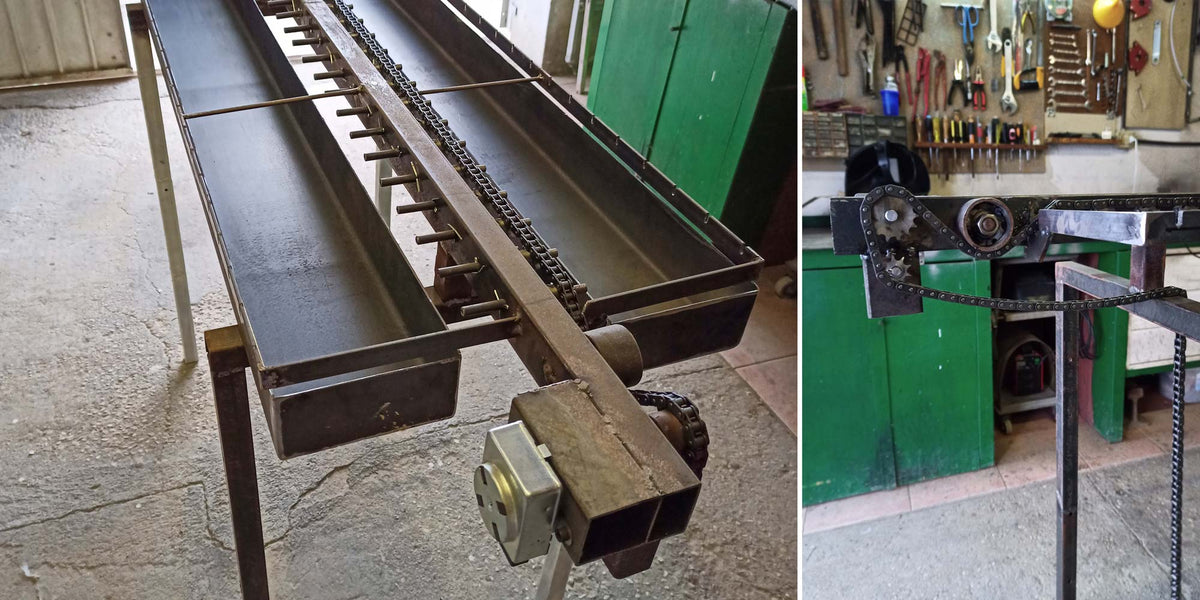

The structure rests on a sturdy support made of iron profiles and consists of two long, rectangular metal trays designed to hold the coals, plus a central iron profile shaft that supports 24 small metal rods, each providing rotation for two skewers (one on each end). The rotation of these rods is powered by a small electric rotisserie motor, installed at the end of the central shaft.

Recovering the Gears

A critical point of this build is sourcing the gears that allow the skewers to rotate via the chain. You can buy them new, but with a little patience, you can find reclaimed ones—for example, from old agricultural or industrial conveyor rollers. Repair shops for motorcycles and e-bikes can also be useful suppliers for these components.

The motor turns a 14-tooth gear that drives a long, movable-link chain running the full length of the shaft. This chain engages with 8-tooth gears mounted on each rod, making them rotate. The chain is tensioned by a support gear and a ball bearing whose position can be adjusted thanks to a slotted hole on the shaft, allowing for proper tensioning. Each skewer is inserted onto the drive rod, while the other end rests in a notch on the outer wall.

Step-by-Step Assembly Guide

1. Build the Frame and Coal Trays

Start by welding or bolting together a rectangular frame from iron profiles. Attach two long metal trays to hold the charcoal. For a sturdy outdoor setup, consider pairing this with a durable outdoor patio furniture set to create the ultimate entertaining zone.

2. Install the Central Shaft and Rods

Mount the central iron shaft horizontally above the trays. Drill holes at regular intervals to insert the 24 small metal rods. Each rod should spin freely in its housing.

3. Mount the Gears and Chain

Attach an 8-tooth gear to each rod. Run the chain along the length of the shaft, engaging all gears. Use a tensioning mechanism (a slotted hole and bearing) to keep the chain tight. You can find replacement gears and chain components at your local hardware store or through home improvement suppliers.

4. Connect the Motor

Install a small electric rotisserie motor at one end of the shaft. Fit a 14-tooth gear on the motor output and connect it to the chain. Ensure the motor is rated for outdoor use and has a low RPM for slow, even cooking.

5. Test and Adjust

Before loading skewers, run the system empty to check for smooth rotation and proper chain tension. Adjust the tensioning bearing as needed.

Tips for Perfect Results

• Use uniform skewers: All skewers should be the same length and thickness to ensure balanced rotation.
• Preheat the coals: Let the charcoal burn until it's covered with white ash before placing the skewers over it.
• Season your food: Marinate meats and vegetables for at least an hour before skewering for deeper flavor.
• Monitor temperature: Keep the coals at a medium-high heat—too hot and the outside will burn before the inside cooks.
• Clean the gears: After each use, wipe down the chain and gears to prevent grease buildup and rust.

Frequently Asked Questions

Can I use this rotisserie for vegetables only?

Yes, absolutely. The system works great for vegetable skewers, tofu, or even fruit for a caramelized dessert. Just ensure the pieces are cut to a similar size for even cooking.

What type of motor do I need?

Look for a low-RPM (1-5 RPM) rotisserie motor rated for outdoor use. Many are available as BBQ rotisserie motor kits that include mounting brackets and gears.

How do I keep the chain from slipping?

Proper tension is key. Use the slotted hole adjustment to keep the chain snug but not overly tight. A small amount of high-temperature grease on the gears also helps.

Can I build this without welding?

Yes, you can use heavy-duty bolts and brackets to assemble the frame. However, welding provides a more rigid and durable structure, especially for the high heat near the coals.

How many people can this serve?

With 48 skewers, you can easily feed 15–20 people, assuming 2–3 skewers per person. It's perfect for large family gatherings or parties. Pair it with a patio heater to extend your outdoor cooking season.

Final Thoughts

Building your own 48-skewer rotisserie is a rewarding weekend project that will transform your outdoor cooking. Not only does it save you from standing over a hot grill turning skewers by hand, but it also ensures perfectly even browning every time. For the best results, use quality materials and take your time sourcing the gears. Once it's up and running, you'll wonder how you ever hosted a barbecue without it. And while you're upgrading your outdoor space, consider adding some outdoor lighting and outdoor decor to create the perfect ambiance for your guests.
