BOJACK 35+5uF 35 5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Name: BOJACK 35+5uF 35 5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight
Brand: Grand Goldman
SKU: B083WMJ7GJ
Price: 25.07 USD
Availability: InStock

$25

Taxes included. Shipping calculated at checkout.

Free express shipping within the EU in 3–5 days. Worldwide shipping in 3–7 days.

We process and ship all orders as quickly as possible and ensure that your items arrive the soonest.

Returns & Exchanges

Returns are accepted within 14 days of the delivery date. Please contact us to initiate a return if there is a product defect or damage.

Shipping countries

INTERNATIONAL - United States, Canada, Hong Kong SAR, Israel, Japan, South Korea, Malaysia, New Zealand, Singapore.

EUROPE - Austria, Belgium, Bulgaria, Croatia, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Germany, Switzerland, United Kingdom, Norway.

Free Express Delivery 3-7 Days

Craftsmanship Home Decor

Buy More & Save

BOJACK 35+5uF 35 5 MFD ±6% 370V/440V CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

Product Features

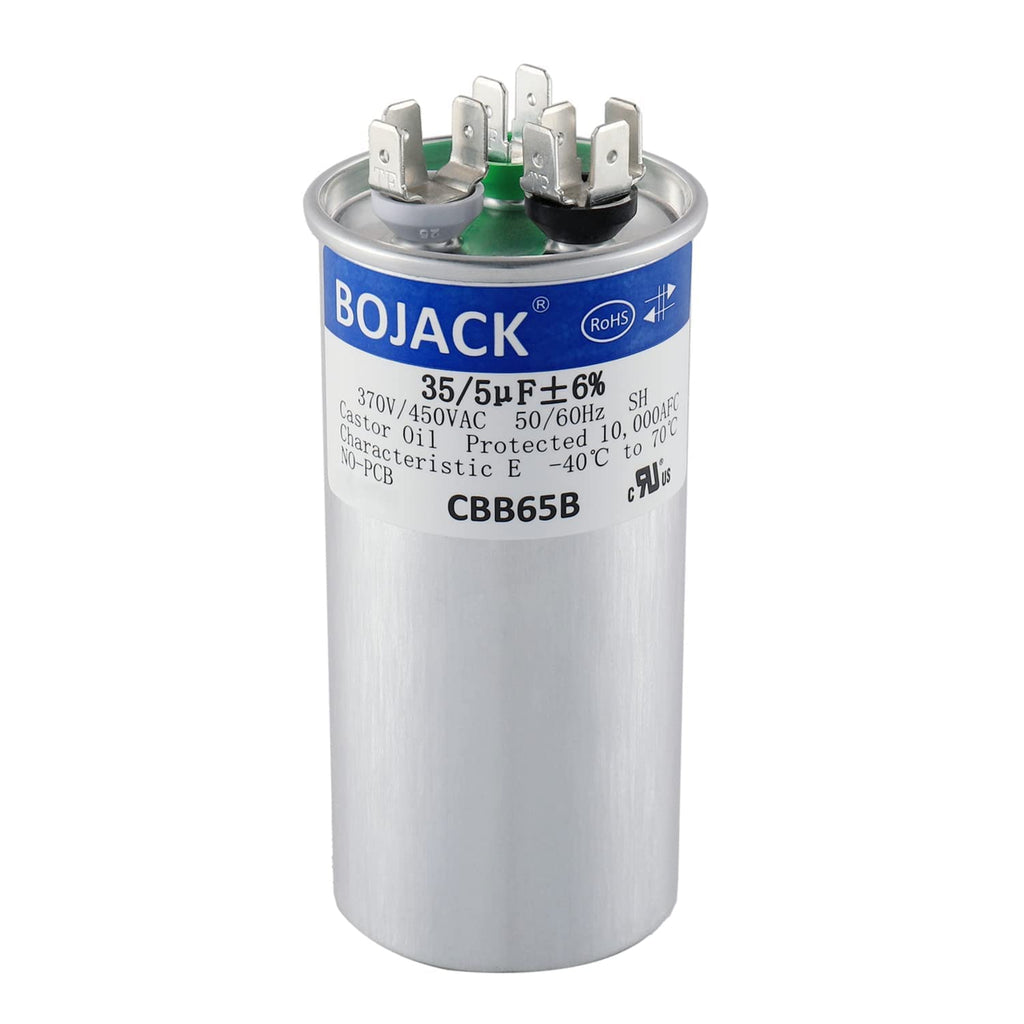

BOJACK 35+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor

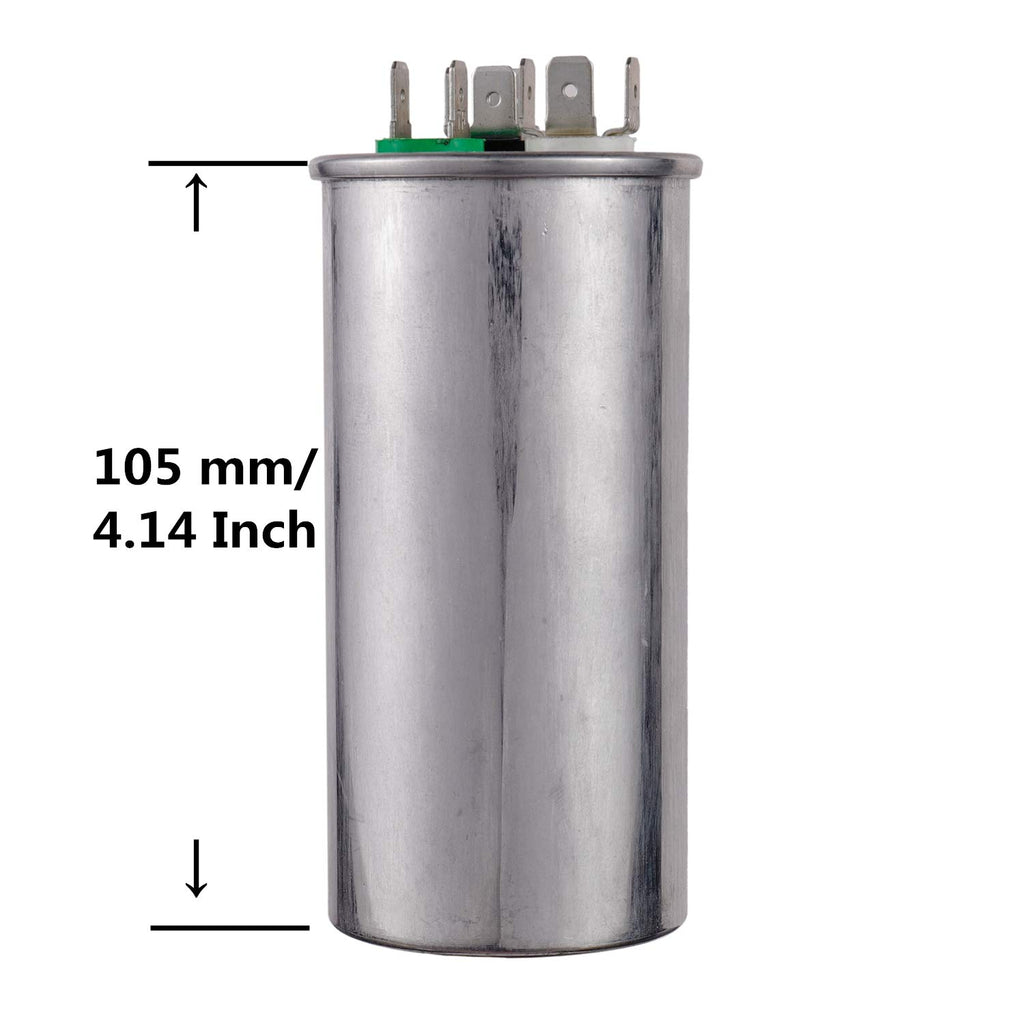

Capacitor dimension: Diameter<1.97 inch>, Height <4.14 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
Safety rated: 10,000 AFC

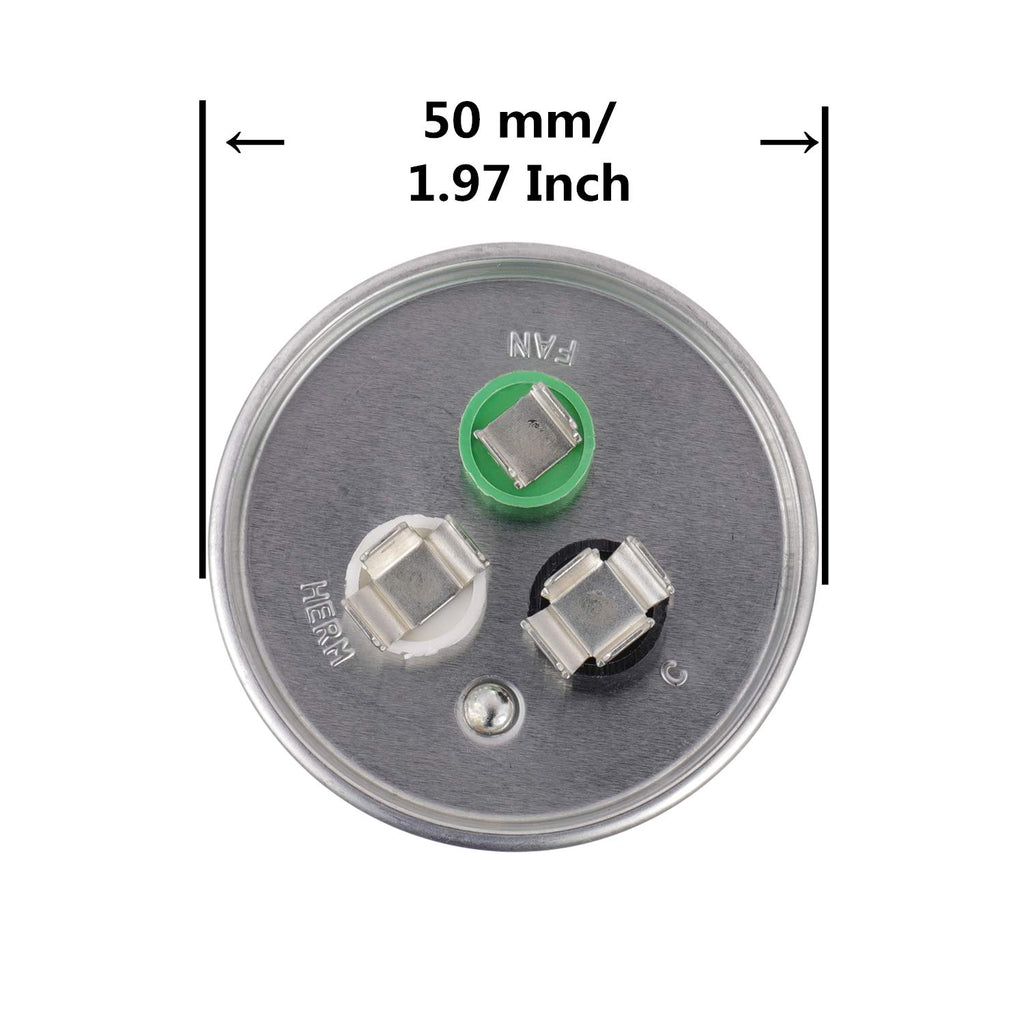

Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.

BOJACK Dual run circular start capacitor ombines two capacitors into
one unit. Three terminals on the top are labeled "Herm"/"H" for
the compressor motor, "Fan"/"F" for the fan, and "C" for the common
line.It will power a compressor motor and a fan motor.

Model: CBB65（Universal model）
Shell material: Metal
Dielectric Material: Metallized polypropylene film
Capacity: 35+5uf
Tolerance: ±6%
Rated voltage: 370V/440V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Capacitor dimension: Diameter<1.97 inch> Height <4.14 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for start-up and operation of AC motors with
frequency of 50Hz/60Hz such as Industrial Grade Replacement for
Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and
Compressors.It is small in size, lightweight, heat resisting and anti-explosion.

Round capacitor can be used to substitute oval shape one with the
same MFD and Volt specs.A 440 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 volt can’t be used in place
of a 440 volt.
