Observe the following 10 mistakes that are usually made in an electrical installation 2026

Look at the following 10 errors that are usually made in an electrical installation, they are structured in many electrical installations, and if there is an error it can end in a catastrophe.

That is why we bring you the 10 things that you should take into account and detect these types of errors to care for your family.

Error 1: making connections outside the electrical boxes

Never connect cables outside of electrical boxes.

Junction boxes protect connections from accidental damage and contain sparks and heat from a loose connection or short circuit.

Solution: add a box

When connections are not contained in an electrical box, install a box and reconnect the wires inside it.

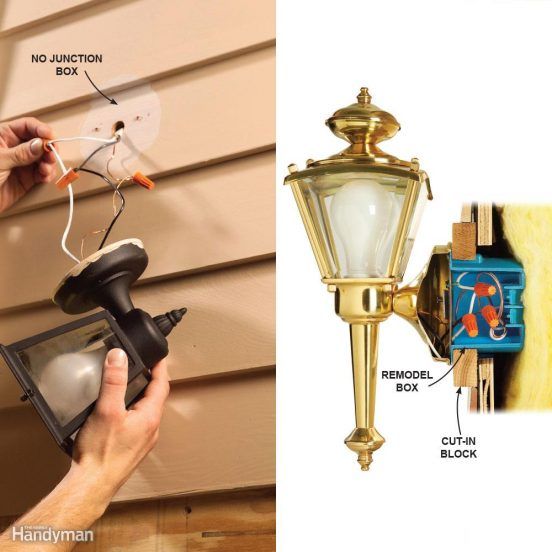

The photo shows one way to do this for an exterior light mounted on wood siding.

Error 2: cutting cables too short

Cables that are cut too short make wire connections difficult and, since you are more likely to make bad connections, it is dangerous.

Leave the cables long enough to protrude at least 3 inches from the box.

Solution: Extend the wires

If you find yourself with short cables, there is an easy solution. Simply add 6 in.

Extensions on existing cables. The photo shows a type of cable connector that is easier to install in tight places.

Error 3: Leaving the cable with its plastic cover unprotected

It is easy to damage the plastic-coated cable that is exposed between the frame members.

That is why the electrical code requires that the wire be protected in these areas.

The cable is especially vulnerable when it is run over or under the wall or ceiling frame, as shown here.

Solution: Install a 2 x 2 adapter

Protect exposed plastic-covered wire by nailing or screwing a 1-1/2-in. plate.

Thick along the cable. You don't have to staple the cable to the card.

Error 4: Inadequate support for sockets and switches

Loose switches or outlets may look bad, but worse, they are dangerous.

Loose outlets can move, causing cables to come loose from the terminals.

Loose cables can catch fire and overheat, creating a potential fire hazard.

Solution: Add rigid spacers

Secure loose plugs by fitting under the screws to create a tight connection to the box.

You can purchase special spacers like we show here at home centers and hardware stores.

Error 5: Installing a three-slot receptacle without a ground wire

If you have two-slot plugs, it is tempting to replace them with three-slot outlets so you can plug in three-prong plugs.

But don't do this unless you are sure there is land available. Use a tester to see if your outlet is grounded.

A series of lights indicates whether the outlet is connected correctly or what fault exists. These testers are available at home centers and hardware stores.

Error 6: Recession of boxes behind the wall surface

Electrical boxes must be flush with the wall surface if the wall surface is a combustible material.

Recessed boxes behind combustible materials such as wood present a fire hazard because the wood is left exposed to potential heat and sparks.

Solution: Add a box extension

The solution is to simply install a metal or plastic box extension.

If using a metal box extension in a plastic box, connect the metal extension to the ground wire in the box using a grounding clip and a short piece of wire.

Error 7: Installing the cable without a clamp

Unsecured cable can strain connections. In metal boxes, sharp edges can cut the insulation in the wires.bres.

Individual plastic boxes do not require internal cable clamps, but the cable must be stapled within 8 inches of the box.

Larger plastic boxes are required to have built-in cable ties and the cable must be stapled within 12 inches of the box.

Cables must be connected to metal boxes with an approved cable clamp.

Solution: Install a clamp

Make sure the cable jacket is trapped under the clamp, and that about 1/4 in. Lining is visible inside the box.

Some metal boxes have built-in cable clamps.

Error 8: overloading of electrical boxes

Too many cables crammed into a box can cause dangerous overheating, short circuits, and fire. The National Electrical Code specifies minimum box sizes to reduce this risk.

Solution: Install a larger box

To calculate the minimum box size required, add up the items in the box:

• For each hot wire and neutral wire that enters the box
• For all combined ground cables
• For all combination cable clamps
• For each device (switch or outlet, but not lighting fixtures)

Multiply the total by 2.00 for 14 gauge wire and by 2.25 for 12 gauge wire to obtain the minimum required box size in cubic inches.

Next, choose a box with at least this volume.

Plastic boxes have the volume stamped on the inside, usually on the back.

Error 9: reversal of hot and neutral wires

Connecting the hot black wire to the neutral terminal of an outlet creates the potential for a fatal shock.

The problem is that you may not notice the error until someone is surprised, because the lights and most other plug-in devices will still work; They just won't work reliably.

Always connect the white wire to the neutral terminal of outlets and lighting fixtures.

The neutral terminal is always marked. It is usually identified by a silver or light-colored screw.

Error 10: Wiring a GFCI backwards

GFCI (Ground Fault Circuit Interrupter) outlets protect you from a fatal shock by turning off the power when they sense slight differences in current.

They have two pairs of terminals. One pair, labeled “line,” is for incoming power from the GFCI outlet itself.

The other set is labeled “load” and provides protection for downstream outlets.
