How to Make a Height Adjustable Work Table! 2026

How to Make a Height Adjustable Work Table: a mobile table, with a top that I can easily level wherever I choose to use it.

I'm very happy with the way it turned out and the versatility it offers, and I hope this information can be helpful to anyone with a similar need.

Step 1: Overview

The table itself was built much like the hundreds of other work tables found on the Internet: Cut 2x4 wood boards held together with glue and screws.

Here are a couple of other work tables I've made that cover some basic procedures in more detail: Simple Workshop Cart with Hidden Drawer

The top of my table was made from 2 halves of a solid core door that I picked up at a thrift store, which was screwed to the table frame from the bottom.

The bottom shelf section was covered with a piece of an old countertop. The legs themselves and the adjustable mechanism are the main focus of this project. The photos here show what they consist of and the essence of how they go together.

Step 2: Piston and upper block

I started by making the adjustable piston assembly for each leg. The actual piston part is made of three pieces of 9-inch-long frame wood. Each piece was run through the table saw to trim about 1/32″ from the width, so the finished piece would slide freely inside the leg housing.

These three blocks were glued and screwed together. A clamp was used to help keep them perfectly aligned. The next top block through which the bolt is screwed. It was cut to be about 1/16″ longer than the width of the 3 piece block you just made.

The holes were drilled to receive a toothed nut at the bottom of the block and a T-nut with the teeth removed at the top. A hole was drilled to run all the way too. I used 6 inch 3/8″ bolts and a matching hardware for each leg mechanism. With two T-nuts like this, you need to make sure the threads are synchronized in such a way that it allows the bolt to thread freely up and down.

The serrated T-nut was dipped in epoxy and tapped into place first, and a bolt was screwed into place.

The teeth on the second T-nut were cut with a rotary tool, and this toothless nut was epoxyed in place by threading it along the bolt and placing it on the block.

A wing nut was used to temporarily hold it in place while the epoxy dried. It's critical that you don't use too much epoxy, as you don't want it to reach the bolt at all. When the epoxy has dried, you should be able to easily pass the bolt up and down through the block.

Step 3: Assembly

With the bolt and nuts in place on the upper block, a piece of scrap aluminum was cut to fit the top of the piston portion of the leg and the hole was drilled in the center. I cut the aluminum with this.

The end of the bolt is secured to the plate with lock nuts and washers, but is kept loose enough to rotate freely. This plate is bolted to the top of the piston, and a locking wheel is attached to the bottom end with set screws in drilled holes.

Step 4: Install on the table legs

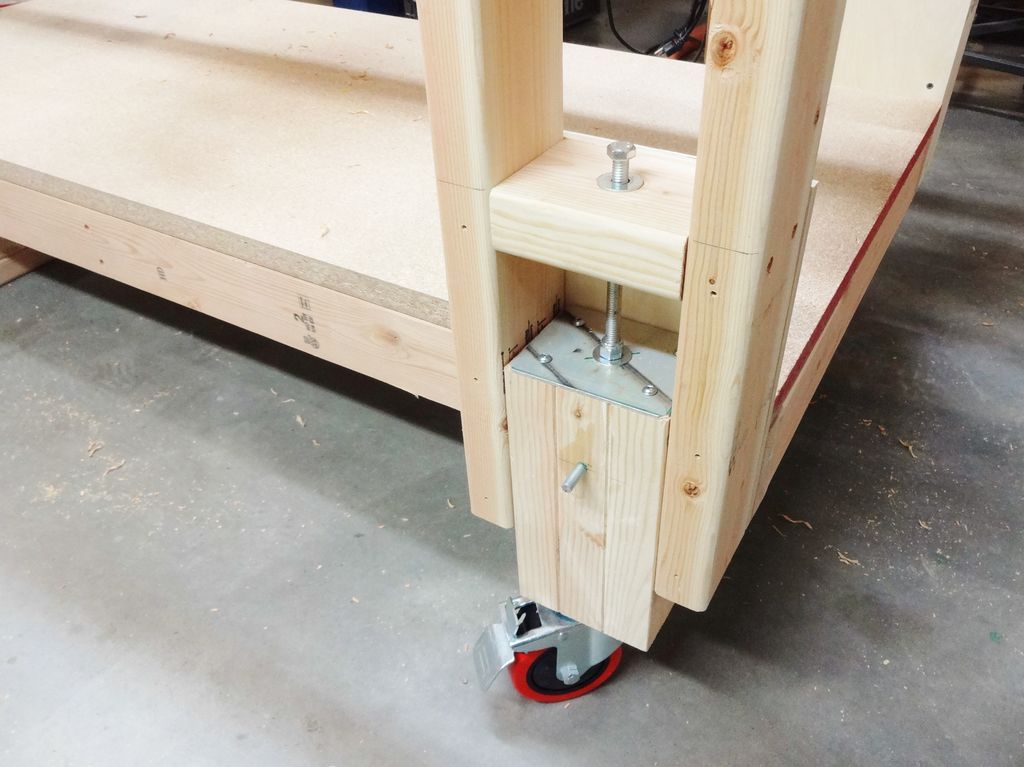

The table was constructed with leg pieces, as shown, to allow the piston mechanism to be installed on the underside of the legs.

The upper block of the piston assembly is attached with the first 11 inches from the bottom of thethe legs of the table. Some knobs were made of plywood with T-nuts that act as locks on the vertical movement of the piston assemblies.

Step 5: Table Frame

Here's a closer look at the table frame. Everything received several coats of lacquer, and the knobs were also painted.

Step 6: Add the Cap, Trim and Screw

The table top was added and the oak trim was screwed around the outside.

A vise was screwed to the corner of the table where it protruded from the frame. The bolts were covered with pieces of oak wood that were glued in place, and the entire top received a few coats of lacquer. Sand a little and spray with more lacquer if necessary.

Step 7: Bonus: Table Saw Extension

I added this mini extension to the back of my table saw, and when I need the big output table to cut long boards or sheets, I place it about 8 inches behind this extension, and I'm all set.

The following steps show how this was done.

Step 8: Support Rails

Two pieces of angle iron were cut and prepared for attachment to the sides of the table saw cabinet. These are actually from a used bed frame.

Some material had to be removed from one to allow clearance for the motor when the blade was adjusted to its maximum tilt.

Step 9: Fasten the rails

I had two pieces of wood screwed to my saw from a previous project, which really made attaching these rails even easier. The holes were drilled into the metal with a drill bit and the rails were screwed to the wood with flat head screws.

Step 10: Light frame

Using scrap metal, I built a lightweight frame and finished it off with pieces of Baltic birch plywood. The frame was glued and screwed and the top was attached with glue and nails. It was finished with lacquer and a coat of paste wax.

Screws were installed from the bottom to secure it in place. For smaller projects and cutting shorter pieces, I have often found that I do not need to put the large output board in place, and this extension is sufficient.

It is a great addition to my saw and works perfectly for what I needed.

Step 11: Completion

That's all! Thanks again for taking a look. Thoughts and comments are always encouraged! 🙂
