DIY Hanging Futon Bed: How to Build It 2026

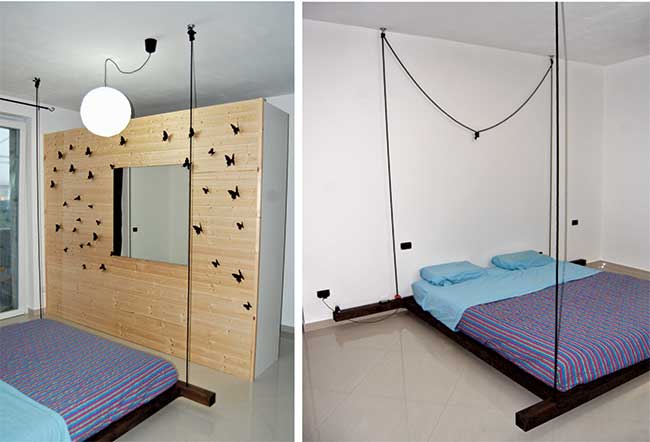

This hanging futon bed is a unique interpretation of the traditional Japanese mattress support, in this case lifted with a rope. The result is certainly impressive. Futon, literally "rolled mattress," is a very low traditional Japanese bed made of cotton and quilted. In the West, where it has become widespread, it has sparked endless interpretations of its nature and form. Instead of being placed on the typical tatami, it is often associated with more conventional beds and even sofas. What our reader Mario Bellini proposes is a very creative version of a hanging futon bed, suspended from the ceiling by a single rope. The hanging futon bed is made of square-section spruce glulam beams, 90×90 mm, treated with a dark brown stain. There are 4 beams arranged to form an H, inside which a double slatted base fits perfectly. The structure and slatted base of the hanging futon bed remain detached from the floor, a few centimeters high, thanks to a very sturdy 10 mm diameter rope that passes through the thickness of the bed beams through 4 pre-drilled holes. Before threading the rope and inserting the slatted base, the structure is lifted to the ceiling, exactly above the desired final position in the room, and the centers of the holes to be made in the slab are marked. In this case, the room above the bedroom is an uninhabited but accessible attic, so four threaded bars are chosen as supports: below, rings with washers remain, while the fastening is secured by nuts with other washers tightened from above. The rope is a single piece: it starts from a ceiling ring at the foot end, goes down to the structure, passes through it, runs underneath crossing to the opposite corner, passes through the structure again, goes up to the ceiling, ties to the ring, and then passes directly to the side ring forming a belly.

Materials and Tools Needed

• Spruce glulam beams: 4 pieces, 90×90 mm, treated with dark brown stain
• Double slatted base (standard size for a double bed)
• 10 mm diameter sturdy rope (synthetic or natural fiber)
• 4 threaded bars, washers, nuts, and rings for ceiling anchoring
• Drill with wood and masonry bits
• Measuring tape, level, pencil
• Ladder or scaffolding for ceiling work
• Optional: home improvement tools like a saw, sandpaper, and wood sealant

Step-by-Step Instructions

1. Prepare the Wooden Structure

Cut the spruce glulam beams to the desired length for your bed size. Arrange them in an H shape: two parallel beams for the sides and two cross beams for the ends. Drill four holes through the beams at the corners where the rope will pass. Sand any rough edges and apply a protective stain or sealant. For a polished look, browse home improvement supplies for stains and finishes.

2. Mark Ceiling Anchor Points

Position the assembled H structure on the floor exactly where the bed will hang. Use a plumb line or level to mark the four ceiling points directly above the holes in the beams. Ensure the marks are perfectly aligned for a balanced hang. If your room needs better lighting for this step, check out lighting options.

3. Install Ceiling Anchors

Drill holes into the ceiling at the marked points. Insert threaded bars through the ceiling, securing them with washers and nuts on both sides. Attach sturdy rings to the lower ends of the bars. For a secure installation, consider home improvement hardware like heavy-duty anchors and bolts.

4. Thread the Rope

Cut a single long piece of 10 mm rope. Start at the foot-end ceiling ring, thread it down through the corresponding beam hole, then cross under the structure to the opposite corner, up through the beam, and back to the ceiling. Tie a secure knot at the ceiling ring, then loop the rope to the side ring to create tension. Adjust the rope length so the bed hangs a few centimeters off the floor. For durable rope, visit garden supplies for weather-resistant options.

5. Insert the Slatted Base

Place the double slatted base inside the H structure. Ensure it fits snugly and is level. The slats provide breathable support for your futon mattress. For a complete bedroom setup, pair your bed with beds and mattresses from our collection.

6. Add the Futon Mattress

Lay your futon mattress on the slatted base. Fluff and arrange it for comfort. The hanging design adds a gentle sway, perfect for relaxation. Enhance your bedroom ambiance with curtains and rugs for a cozy feel.

Tips for a Successful Hanging Futon Bed

• Check the ceiling’s load capacity before installation. A double bed with a person can weigh over 200 kg.
• Use a level to ensure the bed hangs evenly to prevent swaying.
• Choose a rope that complements your room decor. Natural fibers like jute or hemp add a rustic touch.
• For outdoor use, consider outdoor patio furniture and outdoor decor to create a hanging daybed on a covered patio.
• Add outdoor lighting around the bed for a magical evening glow.

Frequently Asked Questions (FAQ)

1. Is a hanging futon bed safe?

Yes, if properly installed with strong ceiling anchors and a sturdy rope. Always consult a professional if you are unsure about your ceiling’s structure. For added safety, use home improvement hardware rated for heavy loads.

2. Can I use this design for a queen or king-size bed?

Yes, but you will need larger beams and stronger rope. Adjust the H structure dimensions accordingly. For larger slatted bases, see beds for compatible sizes.

3. What type of rope is best?

A 10 mm diameter synthetic rope (like nylon or polyester) is durable and resists fraying. Natural ropes like manila or hemp are also strong but less weather-resistant. Find options in garden supplies.

4. How do I clean the bed?

Vacuum the futon regularly and spot clean as needed. The wooden structure can be dusted and occasionally re-stained. For maintenance tools, browse home improvement cleaning supplies.

5. Can I hang the bed outdoors?

Yes, but use weather-resistant wood and rope. Consider a covered patio or pergola for protection. Explore pergolas and gazebos for outdoor structures.
