DIY Spray Booth: Illustrated Build Guide for a Clean Workspace 2026

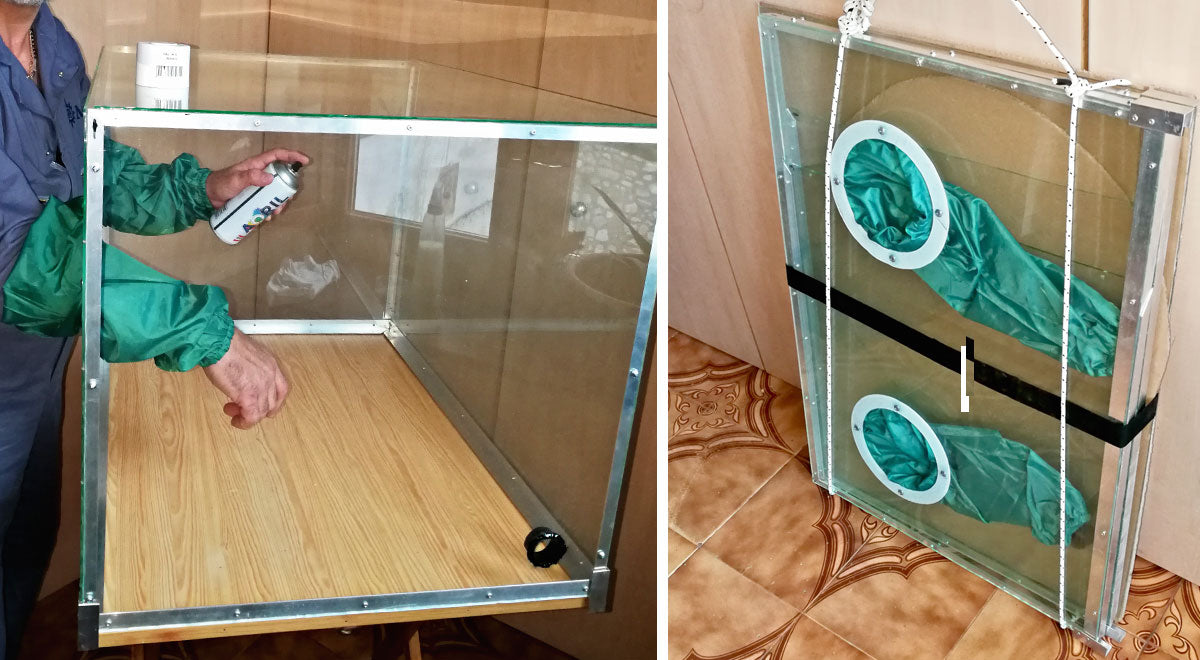

Building a DIY spray booth is a game-changer for anyone who frequently spray-paints small to medium objects. Working in a ventilated room or outdoors sounds good in theory, but drafts ruin the finish, paint particles drift onto unintended surfaces, and airborne dust is a health hazard without a respirator. The solution? A compact, homemade spray booth made from plexiglass and aluminum. This booth sits on a workbench, is simple to construct, and creates a sealed environment for a clean, professional paint job—often without needing a mask.

Before you start cutting materials, make sure your home improvement toolkit is ready. You’ll need basic tools like a drill, rivet gun, and a saw for cutting aluminum angles.

Designing Your DIY Spray Booth

The entire structure requires only five sheets of plexiglass (note: it’s spelled with one 's'!): two pieces measuring 645×600 mm, two measuring 855×600 mm, and one measuring 645×855 mm. You will also need aluminum angle profiles (10×10 mm and 20×20 mm), along with screws and rivets.

For the best results, consider adding a lighting setup inside the booth to illuminate your workpiece evenly. Good visibility is critical for a flawless finish.

How to Build the Spray Booth

Step 1: Prepare the Front and Back Panels

Attach the aluminum angles to the front and back panels to form a frame. One wing of the angle is riveted from the outside, while the other wing faces inward. On the vertical sides of these panels, drill three holes on each side (3+3) for later assembly.

Step 2: Create the Hand Holes (Oblò)

On the front panel, cut two circular openings (oblò) with a diameter of 160 mm. Position them horizontally aligned but shifted slightly upward for comfortable arm access.

From a spare piece of plexiglass, cut two rings with an inner diameter of 160 mm and an outer diameter of 205 mm. Drill four equidistant holes along the centerline of each ring. These rings will be used to secure protective sleeves later.

Step 3: Assemble the Side Panels

For the side panels (one of which will hold the exhaust port), attach aluminum angles only to the top and bottom edges using rivets. On the vertical edges, use the previously drilled holes from the front and back panels as a template to mark and drill matching holes. This design allows the entire box to be quickly assembled and disassembled. The top cover panel simply rests on the upper angle wings.

To keep your workspace organized, a sturdy work surface or bench is essential for this project.

Step 4: Install the Sleeves

Cut two sleeves from an old waterproof jacket (k-way) or use flexible rubber gaskets. Attach them to the inner rings, then fix the rings over the hand holes. This creates a seal around your arms, preventing paint mist from escaping.

Store your paints and tools neatly on a shelving unit near your booth for easy access during projects.

Essential Tips for Using Your Spray Booth

• Ventilation: Even with a booth, connect an exhaust hose to the side port and route it outside or through a filter. This removes fumes and overspray effectively.
• Cleaning: Wipe down the plexiglass walls with a suitable solvent after each use to maintain clarity.
• Safety: Always wear appropriate gloves and, when using solvent-based paints, a respirator. A well-ventilated shed is an ideal location for your booth.

For outdoor projects, consider pairing your booth with a pergola or gazebo to create a shaded, wind-free painting area.

Frequently Asked Questions (FAQ)

1. Can I use this booth for large furniture?

This design is optimized for small to medium objects like model kits, tools, or small decor pieces. For larger items like dining tables or sofas, you would need a much larger professional setup or a well-ventilated outdoor space.

2. What type of paint can I use inside this booth?

You can use spray cans, airbrushes, or HVLP spray guns with acrylic, enamel, or lacquer paints. Always ensure adequate ventilation and consider adding a heater in cold weather to help paint cure faster.

3. How do I prevent the plexiglass from scratching?

Use a soft cloth and a plastic-safe cleaner. Avoid abrasive pads. When not in use, store the booth in a safe area, perhaps on a storage bench to keep it protected.

4. Can I add a turntable inside the booth?

Absolutely! A small rotating turntable makes it easier to paint all sides of an object without touching it. Place it on a utility cart for added mobility.

5. Is this booth suitable for water-based paints only?

No, it works with any spray paint. However, for solvent-based paints, always use an exhaust system and a proper respirator. You can also set up the booth inside a greenhouse for extra containment if you have one.

For drying your finished pieces, a dedicated display shelf or etagere in a dust-free room is highly recommended.
