How to Fix a Broken Key: A DIY Repair Guide 2026

Even the most robust keys, like those used in multi-point locking systems, can snap. This usually happens when the key bars experience friction in their housings, putting the key under significant stress each time the lock is fully opened or closed. The most common break point is at the base of the handle, where it joins the shaft. But with a bit of DIY spirit, repairing a broken key is entirely possible.

It takes just about 45 minutes of clever work to fix the problem, but in that short time, you'll need to cut, thread, weld, and file stainless steel pieces—requiring skill and some specialized tools. Handy scraps from previous projects are a lifesaver here, particularly a piece of flat bar about 2 mm thick and a nut, both made of steel (stainless is best).

Tools and Materials You'll Need

• Hacksaw
• Metal file
• Welding equipment
• Vise
• M5 die and tap
• Drill press
• Stainless steel flat bar (2 mm thick, ~25x25 mm)
• M5 stainless steel nut
• Your broken key

Step-by-Step Repair Guide

1. Cut the Flat Bar

Using a hacksaw, cut a piece of 2 mm thick stainless steel flat bar to about 25x25 mm. Round off the free edge nicely with a metal file to ensure a comfortable and safe grip for your new key handle. For other home improvement projects, you might find similar metalworking supplies useful.

2. Weld the M5 Nut to the Plate

After rounding the cut edge, weld an M5 stainless steel nut to the plate. It's crucial to keep the plate perfectly vertical to the nut while welding. Clamping the assembly in a vise helps, and it also allows you to grind the weld smooth afterward. A sturdy workbench setup, perhaps with a reliable work surface, makes this step much easier.

3. Thread the Key Shaft

Secure the broken key's shaft in a vise. Using an M5 die, thread the end of the shaft. The threaded portion doesn't need to be long—just slightly more than the thickness of the nut it will screw into.

4. Assemble and Drill

Screw the threaded key shaft into the welded nut. Align the flat bar plate so it sits flush with the wings of the key. Use the vise on a drill press to hold everything steady—its groove helps position the two parts correctly. Then, drill a hole through the plate to secure the assembly if needed. This precision work is similar to assembling other entertainment furniture or hardware where alignment is key.

Final Checks

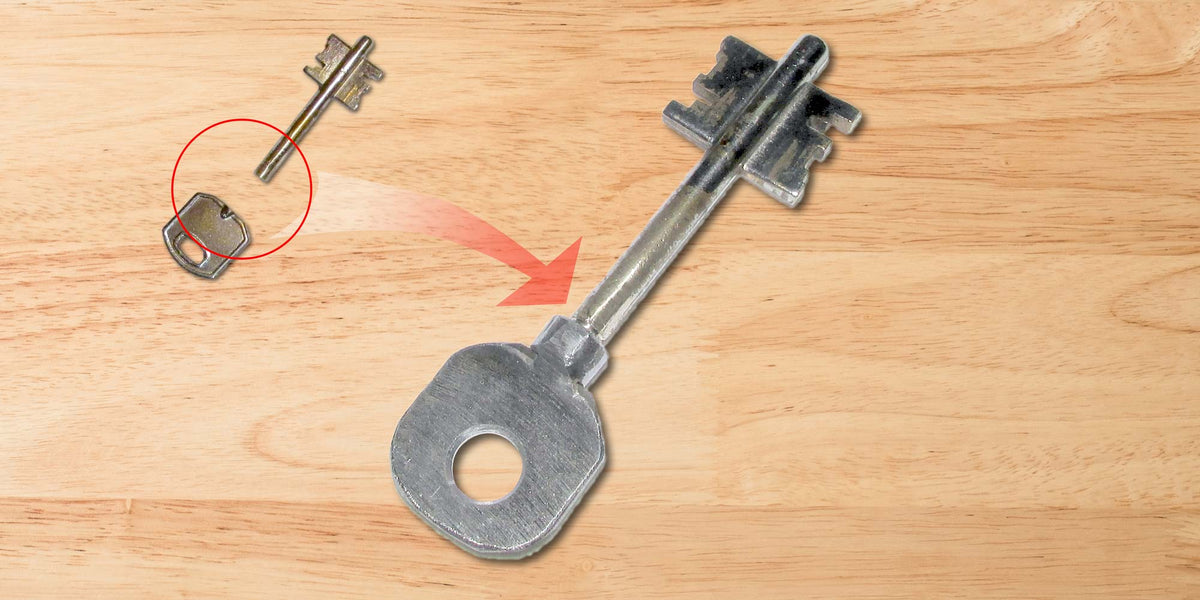

Once assembled, test the key in the lock. It should turn smoothly without binding. If it's tight, a little more filing or sanding on the new handle might be needed. This repair gives your old key a new life, saving you the cost of a replacement lock system.

Frequently Asked Questions (FAQ)

Can I repair a broken key without welding?

Welding is the most durable method for a metal key handle, but for a quick fix, you could use a strong epoxy or a key extractor kit. However, for a long-term solution, welding the steel components as described is best. If you're working on other outdoor projects, check out our selection of garden supplies for more durable tools.

What if the key broke inside the lock?

If the key broke inside the lock, you'll need to extract the broken piece first using a key extractor tool or a thin jigsaw blade before attempting this handle repair. Once extracted, you can follow the steps above to attach a new handle to the remaining shaft.

Is it safe to use a repaired key?

Yes, if done correctly. The welded joint and threaded connection are very strong. Just ensure the new handle is aligned properly with the key's wings to avoid putting extra stress on the lock mechanism. For added comfort, you might also want to look at some ergonomic office chairs for your workshop area.

Do I need special tools for threading the shaft?

Yes, you'll need a die set (specifically an M5 die) to cut threads onto the steel shaft. These are available at most hardware stores. A good vise is also essential for holding the key steady. Organizing your tools on a shelving unit can keep your workspace tidy.

Can this method work for any type of broken key?

This method works best for steel keys with a shaft thick enough to be threaded (at least 4-5 mm). For thinner or softer metal keys, a different approach, like using a handle from a storage bench or similar hardware, might be needed.
