How to Install a New Light Point with Exposed Cable Duct 2026

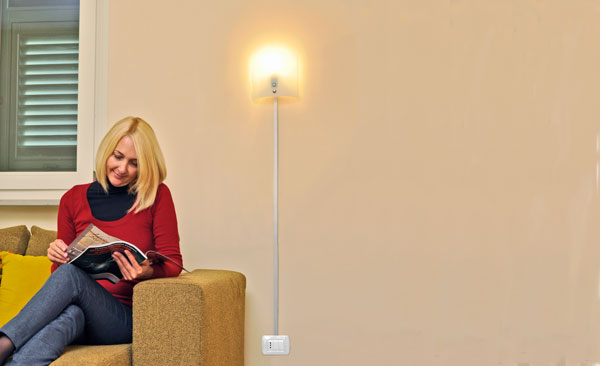

Installing a new light fixture on a wall without hidden wiring can be tricky. But with a clever trick, you can add a stylish light point without any demolition work. The secret? A metal cable duct fixed to the wall with strong double-sided mounting tape. This DIY solution lets you run the wire neatly from an existing power outlet to your new lamp, creating a clean, industrial look. Let’s walk through the steps.

What You’ll Need for This Project

• Metal cable duct (aluminum profile)
• Double-sided mounting tape
• Plumb line
• Drill and wall plugs
• Screwdriver
• Wire strippers
• Switch module (if your lamp doesn’t have one)
• New light fixture (like an applique or sconce)

Step-by-Step Installation Guide

1. Mark the Position

Use a plumb line to mark the exact spot for your new light fixture, centered above the existing power outlet. This ensures a straight, professional-looking cable run.

2. Drill Holes for Wall Plugs

At the marked position, drill holes and insert wall plugs to securely mount the lamp bracket. For heavy fixtures, make sure the plugs are rated for the weight.

3. Cut the Cable Duct to Length

Measure the distance from the outlet to the lamp position. Cut the aluminum profile to that length using a fine-tooth saw. Deburr the edges for safety.

4. Wire the Lamp and Feed Through the Duct

Connect the wires to the lamp side, then feed the cable through the aluminum duct. If your lamp doesn’t have a built-in switch, consider adding a switch module inside the duct near the outlet.

5. Prepare the Outlet Connection

At the outlet side, carefully chip away a small recess in the wall and drill a hole in the outlet faceplate just large enough to pass the wires through (without the outer sheath). This keeps the connection tidy.

6. Fix the Duct and Mount the Lamp

Peel the backing off the double-sided tape and press the duct firmly against the wall. Then mount the lamp bracket and attach the fixture. For a cohesive look, pair your new light with wall decor that complements the industrial style.

7. Make the Electrical Connections

Safety first! Before making any connections, turn off the main power at the circuit breaker. Connect the wires to the outlet terminals (or to a new switch module if you added one). Double-check polarity and tighten all screws.

Tips for a Professional Finish

• Use a duct color that matches your wall or outlet plate for a seamless look.
• If the outlet is near the floor, consider pairing the lamp with a nightstand or storage bench to anchor the space.
• For outdoor applications, choose a weatherproof duct and fixture from our outdoor lighting collection.

Frequently Asked Questions

Can I use this method for any wall type?

Yes, as long as the wall is clean, dry, and smooth enough for the double-sided tape to adhere. For textured walls, you may need to use small screws instead of tape to secure the duct.

Do I need an electrician for this project?

If you’re comfortable working with electricity and follow safety precautions (like turning off the main breaker), you can do it yourself. If in doubt, consult a licensed electrician.

What if my lamp doesn’t have a switch?

You can add a switch module inside the duct near the outlet, or use a smart bulb controlled by your phone. Browse our home improvement section for switch options.

Can I hide the duct with paint?

Yes! You can paint the aluminum duct with a metal primer and then a topcoat that matches your wall. Just make sure the paint is compatible with metal surfaces.

How do I clean the duct?

Wipe it with a damp cloth and mild detergent. Avoid abrasive cleaners that could scratch the surface. For a coordinated look, consider adding curtains or rugs that tie the room together.

Similar DIY Projects

If you enjoyed this project, you might also like our guides on using a multimeter for electrical testing and choosing the right external cable ducts for your home. For more inspiration, check out our collections of lighting, home improvement, and wall decor.
