How to Install Elyplast Corrugated Fiberglass Panels – Step-by-Step Guide 2026

For carports, sheds, and technical constructions of any size, Elyplast fiberglass panels are an ideal choice. Available in opaque or translucent corrugated styles, in various colors and sizes, they offer durability, lightness, and easy installation. Whether you’re building new or renovating, these panels let you create beautiful, functional roofs and skylights. Below, we walk you through the entire installation process.

What Are Elyplast Corrugated Fiberglass Panels?

Elyplast panels are made from polyester resin reinforced with fiberglass and loaded with alumina. The opaque Elyonda range features a UV-resistant isophthalic gel-coat on the weather-exposed side, giving excellent abrasion resistance. These panels are lightweight yet strong, perfect for home improvement projects like roofing, vertical cladding, and ceiling applications. Translucent Elyplast panels can be mixed with opaque ones to create natural daylighting spots.

Available Colors & Sizes

• Opaque: brick red, light gray (custom: coral red, Swiss green, blue, smoke gray)
• Translucent: various profiles to match opaque sheets
• Lengths and widths to suit most roof dimensions

Tools & Materials You’ll Need

• Elyplast corrugated panels (opaque or translucent)
• Angle grinder for cutting
• Drill with appropriate bits
• Screws or lag bolts (for wood or metal substructures)
• Sealant or rubber washers (optional for waterproofing)
• Measuring tape, chalk line, ladder

Step-by-Step Installation Guide

Step 1: Measure & Select Panels

Based on your roof dimensions, choose the right panel length and width. Elyplast panels come in standard sizes, but you can cut them easily. For larger structures, consider pairing with sheds or greenhouses from our collection for a complete outdoor setup.

Step 2: Cut Panels to Size

Use an angle grinder to trim panels lengthwise or widthwise. Always wear safety goggles and a dust mask. Cut on a stable surface, and smooth any rough edges with sandpaper.

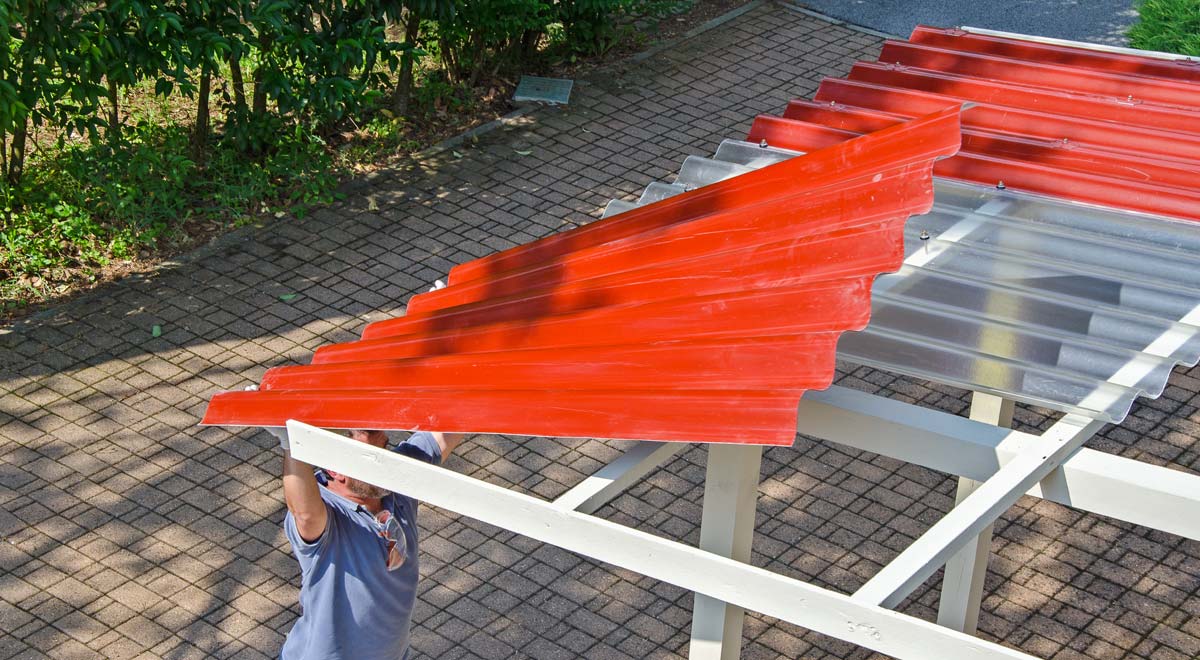

Step 3: Start Laying from the Bottom

Begin at the lower edge of the roof, working from left to right (or right to left). The first row of panels should overhang the support structure by about 10 cm (4 inches). This ensures water runoff away from the walls.

Step 4: Fasten the Panels

Drill pilot holes through the panel and into the substructure. Use lag bolts for wooden frames or self-tapping screws for metal. Place fasteners at every corrugation peak along the supports. For extra weatherproofing, add rubber washers under screw heads. If you’re working on a pergola or gazebo, these same techniques apply.

Step 5: Overlap & Seal Joints

Overlap each subsequent panel by at least one full corrugation (about 5–10 cm). For translucent panels, use sealant between overlaps to prevent leaks. Continue until the entire roof is covered.

Step 6: Finish the Ridge & Edges

Install ridge caps or flashing at the top and sides to seal the roof. Secure with screws and sealant. Your roof is now ready to withstand weather and provide years of service.

Elyplast Rolls & Sheets for Various Uses

Elyplast Corrugated Rolls – Continuous Covering

For large areas like workshops or agricultural buildings, Elyplast rolls offer seamless, continuous coverage. They’re easy to unroll and cut, reducing waste. Perfect for pairing with outdoor patio furniture to create a shaded lounge area.

Elyforma Metal

For added structural support, Elyforma metal profiles can be used as purlins or substructures. They integrate seamlessly with fiberglass panels.

Frequently Asked Questions

1. Can I install Elyplast panels over an existing roof?

Yes, as long as the existing structure is sound. Ensure proper ventilation to avoid condensation buildup. This is a great way to refresh your home improvement without full demolition.

2. How do I clean fiberglass panels?

Use mild soap and water with a soft cloth or sponge. Avoid abrasive cleaners or pressure washers, which can damage the gel-coat.

3. Are Elyplast panels fire-resistant?

Fiberglass panels are generally fire-retardant, but always check local building codes for specific requirements.

4. Can I use these panels for vertical walls?

Absolutely. They work well for cladding, fences, and partition walls. For indoor applications, consider matching with wall decor for a cohesive look.

5. What tools do I need for cutting?

An angle grinder with a diamond or abrasive blade works best. A jigsaw with a fine-tooth blade can also be used for curves.

Enhance Your Outdoor Space

Once your roof is installed, complete the area with outdoor lighting for evening ambiance, and add BBQ grills for al fresco dining. For colder months, outdoor heating keeps the space usable year-round.

Final Thoughts

Installing Elyplast corrugated fiberglass panels is a straightforward DIY project that dramatically improves your property’s functionality and aesthetics. Whether you’re covering a shed, greenhouse, or pergola, these panels offer lightweight strength and easy maintenance. For all your roofing and outdoor needs, explore our full range of garden supplies and home improvement products at GrandGoldman.com.
