Wolfcraft Hinge Mounting Kit | Perfect Cabinet Door Installation 2026

The Wolfcraft hinge mounting kit solves a major problem for anyone building cabinets with doors. It's a new addition to the vast Wolfcraft catalog of workshop accessories and complements that fills the gap of a single "package" containing everything needed for quick and correct installation of snap-in hinges for furniture, from wardrobes to the smallest bathroom wall cabinets.

Installing this type of hinge is notoriously a critical phase because just one minimal error can make it impossible to have doors well aligned with the cabinet body. The core of the issue is placing the hinges in the right position; for this reason, the new set includes 2 jigs that correctly space the door from the cabinet and, at the same time, indicate exactly where to drill the two elements.

To avoid hesitation, the set includes a centering bit that prevents the slightest lateral movement of the bits to be used later to complete the work, also included in the set: the bit for pre-drilling screws and the Forstner bit for recessing the hinge into the wood. Since there are mainly 2 hinge sizes, the set is available in two versions, with a Forstner bit of 26 mm diameter or 35 mm diameter.

Hinge Installed in Six Steps

Time required: 10 minutes

Mark the centers of the holes

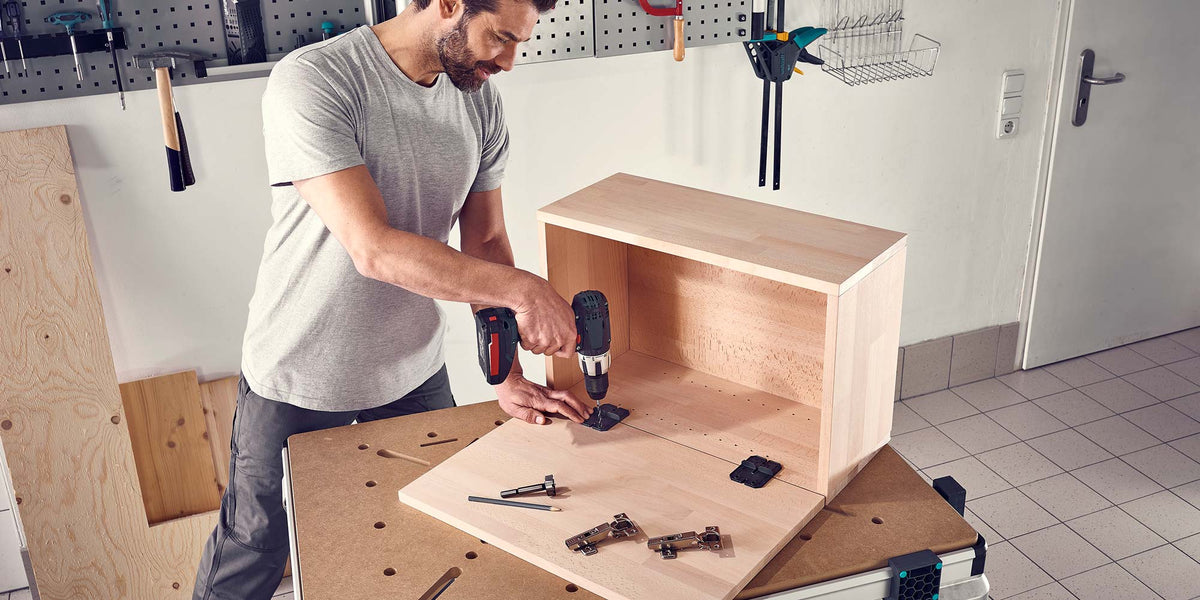

Once the cabinet is built, place it on a flat surface lying on the side to be hinged, with the door spread out in front, perfectly aligned. Apply the two jigs between the two pieces (the median tabs of the jigs provide the correct spacing) and mark with a pencil the centers of the holes for the screws on the cabinet side.

Perform centering drilling

Keeping the jigs firmly in position, perform centering drilling on the door side. This ensures maximum precision for the subsequent drilling phases.

Drill the hinge recess

Using the Forstner bit included in the kit, drill the recess for the hinge cup on the door. The depth stop on the bit guarantees a consistent result.

Pre-drill for screws

Use the included screw pre-drill bit to create pilot holes on the cabinet side. This prevents wood from splitting and ensures smooth screw insertion.

Mount the hinges

Insert the hinges into the recesses and secure them with the screws provided. The precision of the jig system ensures perfect alignment.

Final adjustment

Close the door and check the alignment. Most modern hinges have adjustment screws for fine-tuning the fit. Make any necessary adjustments.

Why Choose the Wolfcraft Hinge Mounting Kit?

• Complete set: includes jigs, centering bit, pre-drill bit, and Forstner bit
• Available in two versions: 26 mm and 35 mm Forstner diameters
• Eliminates guesswork and measurement errors
• Perfect for DIY enthusiasts and professional woodworkers
• Durable construction for repeated use

Frequently Asked Questions

What types of hinges is this kit compatible with?

This kit is designed for standard European-style cabinet hinges (also known as concealed hinges or cup hinges). It works with most 26 mm and 35 mm cup diameter hinges commonly used in kitchen cabinets, bathroom vanities, and wardrobe doors.

Can I use this kit for both new builds and retrofitting?

Yes, the kit is ideal for both new cabinet construction and retrofitting hinges on existing doors. The jigs ensure precise placement whether you're starting from scratch or replacing old hardware.

Is the kit suitable for beginners?

Absolutely. The step-by-step process and included jigs make it easy for even novice DIYers to achieve professional-quality results. The centering bit eliminates the most common mistake of misaligned drilling.

What is the difference between the 26 mm and 35 mm versions?

The 26 mm version is typically used for smaller cabinet doors, such as those on bathroom vanities or small wall cabinets. The 35 mm version is the standard size for most kitchen cabinets and larger furniture doors. Choose based on the hinge size required for your project.

Do I need any additional tools?

You will need a drill or drill driver to use the bits included in the kit. A pencil for marking and a screwdriver (or drill with screwdriver bit) for installing the hinge screws are also recommended.
