DIY Combined Lathe and Milling Machine | Illustrated Design Guide 2026

DIY enthusiasts are always looking for ways to improve their tools. Here is an excellent guide to building an additional combined lathe and milling attachment.

The Experts' Quest for Better Tools

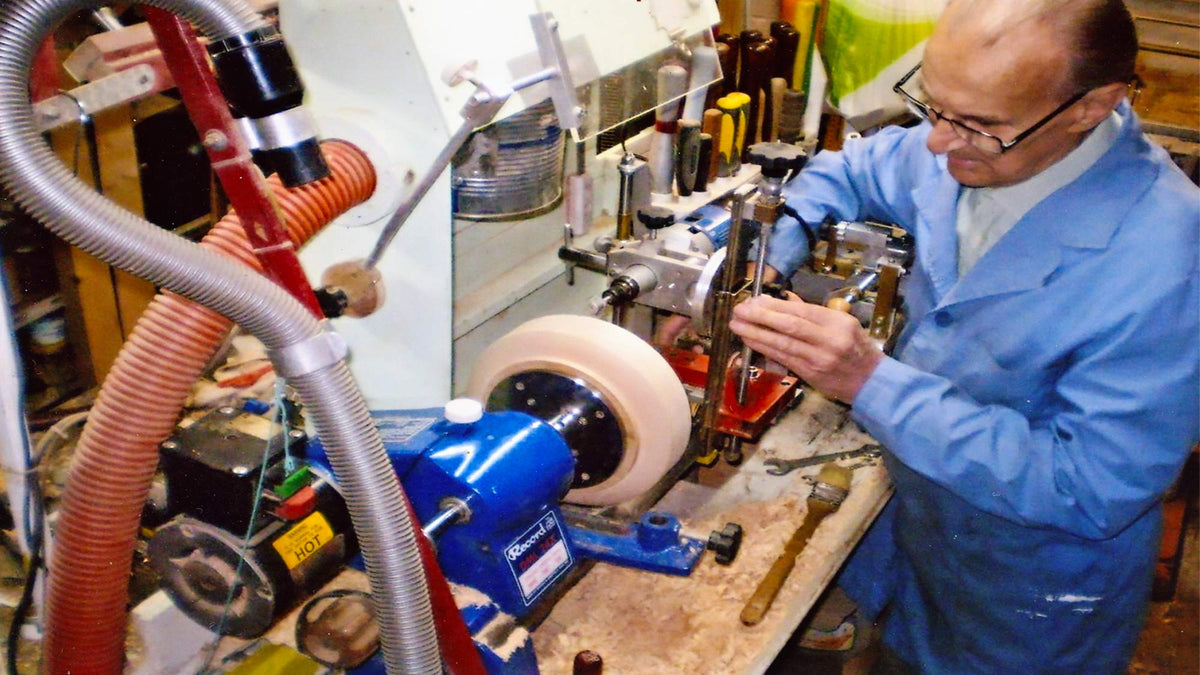

The wood lathe is a tool that, thanks to its characteristics and functionality, allows for very particular woodworking that is difficult to achieve otherwise. However, some are not satisfied and, finding the normal functions of a common lathe limiting, through a combination of creativity and technical expertise, they design and build attachments that allow them to go beyond those limits. Among our readers there are such geniuses; one is Guido Ricci, who demonstrates this in these pages, proposing his recent construction of an additional combined lathe and milling attachment: a carriage to mount on the longitudinal bars, which holds a milling machine, offering it 3 distinct adjustment possibilities on 3 axes, giving a strong boost to the versatility of the whole setup.

Prerequisites for a Combined Lathe and Milling Attachment

• Robustness
• No play
• Precision of adjustments
• Fluidity of movements (at least those that can be performed during work)

To achieve these characteristics, it is necessary to know how to work metals with tools like the lathe and the milling machine (this time for metal), how to weld stainless steel and aluminum parts, and how to resolve tolerances in cases of moving parts, using bearings, bushings, cages, and balls when needed.

Construction of the Carriage for the Combined Lathe and Milling Attachment

The structural components of the combined lathe and milling attachment are made of aluminum, using thick plates to ensure the necessary rigidity and robustness, but achieving a decidedly light overall weight. The aluminum carriage is integrated with the necessary components that ensure movement and fastenings; in these cases the materials are different, and you can find steel, brass, and bronze parts. For the sliding guides, linear ball bearings are used, which ensure smooth and precise movements. For a project like this, having the right home improvement tools and supplies is essential for success.

Operational Flexibility Even with the Lathe Stopped

One of the most interesting features of this attachment is the ability to work even when the lathe is stopped. This allows you to use the milling machine independently, increasing the versatility of your workshop. The 3-axis adjustment system allows you to position the milling cutter precisely where you need it, making complex operations possible. To keep your workspace organized and efficient, consider adding some sturdy work surfaces for your projects.

Materials and Components Needed

• Aluminum plates (thick, for rigidity)
• Steel, brass, and bronze parts for moving components
• Linear ball bearings for smooth sliding
• Fasteners and adjustment screws
• Welding equipment for aluminum and steel

Having a well-lit workspace is crucial for precision work. Browse our selection of workshop lighting solutions to ensure you never miss a detail.

FAQ

1. Can I build this attachment without a metal lathe?

While it's possible with basic tools, having access to a metal lathe and milling machine makes the job much easier and more precise. If you're setting up a workshop, check out our sheds and workshop buildings for a dedicated space.

2. What type of milling machine is recommended for this project?

A compact, high-speed milling machine with a collet system is ideal. The attachment is designed to accommodate various models, so you can adapt it to your existing equipment.

3. How long does it take to build this combined lathe and milling attachment?

Depending on your experience and available tools, the project can take anywhere from a few weekends to a couple of months. Careful planning and precise machining are key.

4. Is this attachment suitable for metalworking?

Yes, the robust aluminum construction and precision bearings make it suitable for light to medium metalworking tasks, as well as woodworking.

5. Where can I find the linear ball bearings and other hardware?

Many of the components can be sourced from industrial suppliers or online. For your workshop setup, don't forget to check out our storage benches to keep your tools organized.

Conclusion

Building a combined lathe and milling attachment is a rewarding project that significantly expands the capabilities of your wood lathe. With careful planning, precise machining, and the right materials, you can create a versatile tool that will serve you for years. For more inspiration and supplies for your DIY projects, explore our selection of garden and workshop supplies.
