How to Build a DIY Lathe Stand: A Sturdy Workshop Project 2026

For all woodturning or metalworking enthusiasts, this lathe stand, built to be incredibly robust, solves both the problem of machine stability and the need for cleanliness and working comfort. The model shown here, crafted by our reader Ernesto Piglione, is custom-made to house a beautiful DIY lathe powered by a classic washing machine motor, but the construction principle is valid for any type of lathe, whether for metal or wood.

The stand is designed for seated work, with the work surface at 740 mm from the floor. To make it taller, simply lengthen the four uprights to your desired measurement. The cabinet is built with a frame of hardwood boards and strips of generous section, all connected with tenon and mortise joints, with openings closed by plywood doors hinged to the uprights for easy access to the lower section. For the best materials and tools for your project, browse our selection of home improvement supplies.

How to Secure the Lathe

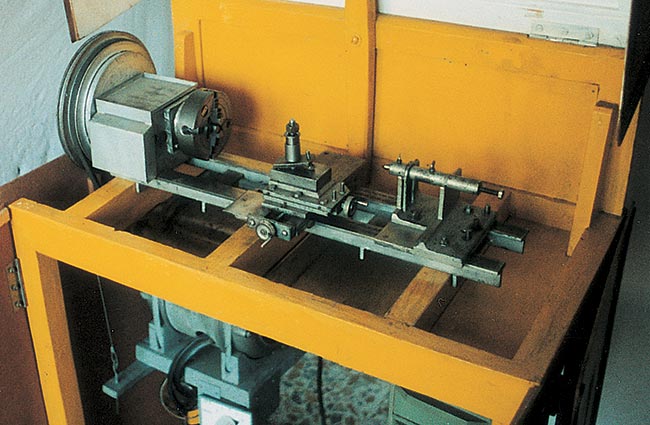

The lathe is fixed onto the crosspieces placed edgewise between the two upper stringers. Beneath these, corresponding to the machine, slide two metal trays that catch the chips, while the space between the last two crosspieces on the right is closed with a plywood rectangle. Here, where the motor sits below the work surface, the left crosspiece is moved inward to allow the drive belt to pass through. Two strips, as high as the lathe, are fixed to the rear uprights, and a plywood wall (or similar material) is screwed onto them, mounted on a frame of strips. A box-type cover (three walls and a roof made of 10 mm plywood) is hinged to the top edge of the wall, housing a lamp that illuminates the work area. A strip hinged with a wing nut on the frame keeps it open during work. When closed, the cover protects the lathe from dust and transforms the stand into a simple cabinet that wouldn't look out of place in a kitchen or dining room. For proper lighting solutions, check out our lighting collection.

The Lower Compartment

The lower compartment houses the motor on the left and a storage area on the right. This design keeps everything organized and accessible. To maximize your workspace, consider adding some storage benches or shelving units nearby for tools and supplies.

Designing a DIY Lathe Stand

When designing your own lathe stand, consider the overall dimensions and stability. The stand should be heavy enough to absorb vibrations during operation. Using hardwood for the frame is essential for durability. You can also customize the height and width to fit your specific lathe model. For additional workspace, a desk or work surface can be integrated into your shop layout.

Closed and Open Configurations

The stand can be used in both closed and open configurations. When closed, the cover protects the lathe from dust and debris, making it ideal for a multi-purpose room. When open, the lamp provides excellent illumination for precision work. The doors on the front allow easy access to the motor and storage area. For a comfortable working environment, consider adding rugs or curtains to your workshop to reduce noise and improve aesthetics.

Frequently Asked Questions

What type of wood is best for a lathe stand?

Hardwoods like oak, maple, or birch are ideal because they are strong and durable. They can handle the weight and vibration of a lathe without warping. For other DIY projects, explore our home improvement range for quality materials.

Can I adjust the height of the stand?

Yes, the design allows you to adjust the height by cutting the four uprights longer or shorter. The standard height of 740 mm is suitable for seated work, but you can modify it for standing if preferred.

How do I ensure the lathe is stable?

Secure the lathe firmly to the crosspieces using bolts. The weight of the stand itself, combined with the hardwood frame, provides excellent stability. Adding rubber feet can also help reduce vibration.

What tools do I need to build this stand?

Basic woodworking tools such as a saw, drill, chisels, and clamps are required. For precise cuts, a miter saw or table saw is recommended. You can find all necessary tools in our garden supplies collection, which includes many workshop essentials.

Can I use this stand for a metal lathe?

Absolutely! The construction principle is valid for both wood and metal lathes. Just ensure the crosspieces and frame are strong enough to support the weight of your specific machine. For heavy-duty projects, consider outdoor patio furniture as inspiration for robust builds.

Conclusion

Building your own lathe stand is a rewarding project that enhances your workshop's functionality. With careful planning and quality materials, you can create a durable and practical stand that will serve you for years. For more project ideas and supplies, visit our home improvement section or explore our garden supplies for outdoor workshop needs. Don't forget to check out our lighting and storage benches for additional workshop enhancements.
