How to Replace Your Roller Shutter Belt: A Step-by-Step DIY Guide 2026

Replacing the roller shutter belt is not as difficult as it seems. This maintenance task is essential to ensure the correct operation and safety of your windows. The process, usually simple and quick, can vary slightly depending on the type of shutter and winding system installed. Before starting, it is crucial to choose a quality belt suitable for the size and weight of your shutter. During replacement, follow the correct steps to remove the old belt and install a new one, making sure it is well tensioned and aligned to avoid future wear or damage. Timely replacement can significantly extend the life of your shutters, improving the functionality and efficiency of your blackout system.

It may happen that the shutter belt tears, but before that happens, we have time to notice it wearing out in areas of greatest friction, so it is best to proceed with replacement before the tear occurs. To do this, we need to access the roller box located above the window, where the roller that winds the shutter is located. Raise the shutter and rewind it using the remaining piece of belt, then block it with a wooden wedge on the sliding rollers fixed to the roller box. Remove the old belt and insert the new one, connecting it at the top to the pulley and at the bottom to the winder, passing it through the rollers on the roller box at the top and on the winder cover at the bottom. Once fixed to the winder, "load" it to compress the internal spring; then insert the system into place.

Useful Tips for Replacing the Roller Shutter Belt

In this job, it is best to have someone help you to avoid accidents, especially if the window does not open onto a balcony but directly into the void. The belt can also be replaced with the shutter raised, but it is safer to work with it lowered and blocked. Before starting, gather all necessary tools: a screwdriver, a wooden wedge, and the new belt. Check the condition of the home improvement tools you have on hand; a good quality screwdriver set can make the job much easier.

Generic Diagram of the Shutter Lifting System

Understanding the basic components of your shutter system is key. The main parts include the roller (the cylinder the shutter wraps around), the pulley (the wheel the belt runs over), the winder (the mechanism that tensions the belt), and the roller box (the housing that contains everything). If you are working in a room that needs better organization, consider adding some bookcases and shelving units to store your tools neatly.

How to Proceed with Shutter Belt Replacement

Step 1: Access the Roller Box

Open the roller box carefully. This is usually a plastic or metal cover above the window. Use a screwdriver to remove any screws or clips. If the box is stuck, a gentle pry with a flathead screwdriver should do the trick. Make sure you have proper lighting in the room so you can see clearly into the mechanism.

Step 2: Remove the Old Belt

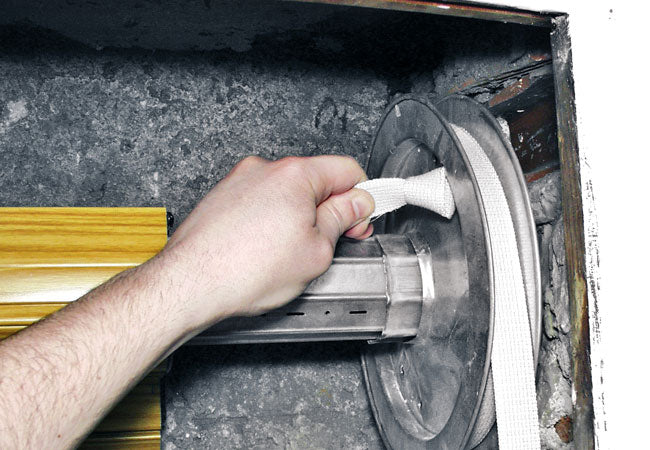

Once the box is open, locate the old belt. Detach it from the pulley at the top and the winder at the bottom. Slide it out through the rollers. If the belt is broken, this step is even easier—just pull out the pieces. While you have the system open, it might be a good time to check the condition of your curtains or other window treatments for any needed updates.

Step 3: Install the New Belt

Thread the new belt through the top rollers, around the pulley, and down to the winder. Make sure it sits correctly in the pulley groove to prevent slipping. Attach it securely to the winder mechanism. This is a great moment to step back and consider refreshing the whole room with new wall decor to match your newly functional window.

Step 4: Tension the Belt

After attaching the belt, you need to tension it. This usually involves winding the winder mechanism to compress the internal spring. Follow the manufacturer's instructions for your specific winder type. A properly tensioned belt will operate smoothly without sagging. If you find this step tricky, a sturdy desk or work surface can provide a stable area to lay out the parts and work comfortably.

Step 5: Test and Close Up

Test the shutter by raising and lowering it a few times. The movement should be smooth and even. If it sticks or slips, adjust the tension. Once satisfied, close the roller box cover and secure it. Consider adding a soft rug beneath the window to catch any dropped screws or tools during future maintenance.

The Roller Box Variable

Different roller boxes have different designs. Some have a removable front panel, while others require you to unscrew the entire unit. Always check how your specific box opens before forcing anything. If you are planning other home improvement projects, having a versatile toolkit is essential.

Frequently Asked Questions (FAQ)

How do I know what size belt to buy?

Measure the width and thickness of your old belt, or measure the length needed by running a string from the winder up to the pulley and back down. Most standard belts are 12mm, 14mm, or 15mm wide. You can find replacement belts and other garden supplies at your local hardware store.

Can I replace the belt without removing the shutter?

Yes, in most cases you can replace the belt with the shutter in place. Simply raise the shutter fully and block it with a wedge, or work with it lowered. If you need a temporary work surface, a portable kitchen island or cart can double as a handy tool station.

Why does my shutter belt keep breaking?

Frequent breakage is usually due to low-quality belts, incorrect tension, or misaligned pulleys. Check for sharp edges on the roller box that might be cutting the belt. Upgrading your outdoor patio furniture might not fix the belt, but it can make your time spent on repairs more pleasant!

Do I need special tools for this job?

Basic tools like a screwdriver, pliers, and a wooden wedge are usually sufficient. For stubborn screws, a power drill can help. A well-organized storage bench can keep all your DIY tools tidy and accessible.

How often should I replace my shutter belt?

With normal use, a good quality belt should last 5-10 years. Inspect it annually for signs of fraying or cracking. If you notice any wear, replace it promptly to avoid a sudden break. While you're at it, consider refreshing your space with new mirrors to add light and depth to the room.

• Always use a belt that matches the weight and size of your shutter.
• Work with a partner for safety, especially on upper floors.
• Keep the roller box clean and free of debris.
• Lubricate moving parts annually with silicone spray.
• Store spare belts in a dry place for quick future replacements.
