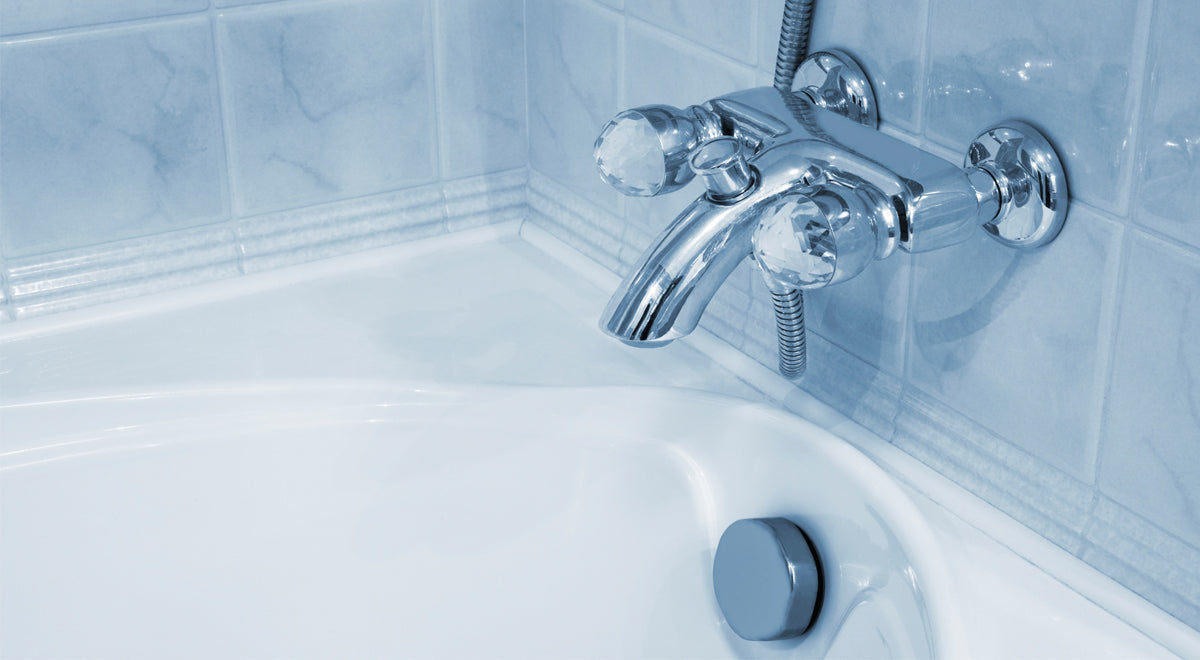

How to Install a Bathtub Faucet Assembly: A Step-by-Step DIY Guide 2026

After years of use, your bathtub faucet assembly can start showing signs of wear, usually due to limescale buildup around seals, the hand shower, and the spout. If cleaning and maintenance no longer cut it, it might be time to install a brand-new unit. In this guide, we’ll walk you through the entire process, from choosing the right replacement to tightening the final connections. Along the way, we’ll also point you to home improvement essentials that can make your project smoother.

Why Replace Your Bathtub Faucet Assembly?

Limescale and mineral deposits are the main culprits behind a failing bathtub faucet. Over time, they clog the hand shower, stiffen the diverter button or lever, and cause leaks at the spout. If you’ve noticed reduced water flow or dripping even when the faucet is off, it’s likely time for a replacement. Before you start, check out our selection of bathroom vanities and fixtures to complement your new faucet.

Tools and Materials You’ll Need

• New bathtub faucet assembly (complete with eccentric connectors, O-rings, flexible hose, and hand shower)
• Adjustable pliers or wrenches
• Level
• Rags or paper to protect chrome finishes
• Plumber’s tape (optional)

For the best results, start with a high-quality faucet assembly from our home improvement collection.

Step-by-Step Installation Guide

Step 1: Remove the Old Faucet and Prepare the Wall Connections

Turn off the water supply, then remove the old faucet. Screw the eccentric connectors onto the wall pipes. The center distance between the two connectors must match the faucet’s inlet spacing. Use a level to ensure both connectors are perfectly horizontal.

Step 2: Attach the Cover Rosettes

Screw the two cover rosettes onto the eccentric connectors by hand. Leave at least 10 mm of thread exposed. If the new rosettes are too tall or too short, consider swapping them for a better fit. You can find replacement rosettes and other wall-mount accessories at our store.

Step 3: Install the Faucet Body and Tighten the Nuts

Hand-tighten the two large nuts of the faucet onto the eccentric connectors, placing new O-rings between them. Always use fresh gaskets to ensure a watertight seal. Then, fully tighten the nuts with a parrot-nose pliers or a suitable wrench. Protect the chrome by wrapping a rag or paper around the jaws.

Step 4: Connect the Hand Shower Hose

Insert a 1/2” washer into the threaded sleeve of the flexible hose, then screw the hose onto the faucet body. Tighten firmly but avoid overtightening. Browse our lighting collection to brighten up your bathroom while you work.

Step 5: Test for Leaks

Turn the water supply back on and check all connections for drips. If you notice any leaks, gently tighten the nuts a bit more. Once everything is dry, enjoy your new faucet!

Frequently Asked Questions

Q1: How do I know if my bathtub faucet needs replacing?

A: If you see persistent leaks, low water pressure, or difficulty switching between tub and shower modes, it’s likely time for a new assembly. Limescale buildup is often the root cause.

Q2: Can I install a thermostatic mixer myself?

A: Yes, but thermostatic mixers require precise alignment and may have additional safety features. Follow the manufacturer’s instructions carefully. For more complex installations, consider consulting a professional.

Q3: What’s the difference between a single-lever and a two-handle faucet?

A: A single-lever mixer controls both temperature and flow with one handle, while a two-handle unit separates hot and cold controls. Choose based on your preference and existing plumbing.

Q4: Should I replace the flexible hose and hand shower at the same time?

A: Yes, it’s a good idea. Old hoses can harbor limescale and bacteria. A new hand shower set ensures optimal performance and hygiene.

Q5: How do I prevent future limescale buildup?

A: Wipe down the faucet and hand shower after each use. Install a water softener if your home has hard water. Also, periodically clean the aerator and showerhead with vinegar.

Final Thoughts

Installing a new bathtub faucet assembly is a rewarding DIY project that can refresh your bathroom’s look and function. With the right tools and a bit of patience, you’ll have it done in no time. While you’re at it, explore our outdoor patio furniture and garden supplies to complete your home improvement journey.
