DIY Compressed Air System: A Complete Installation Guide 2026

Installing a DIY compressed air system in your workshop or garage is incredibly useful. It gives you easy access to a compressed air jet right where you're working, eliminating the need to constantly move the compressor. Building the system isn't difficult; it involves channeling compressed air through a carefully planned route using specific PVC pipes. Let's dive into the details.

How to Build a Fixed Compressed Air System

Time required: 1 day

Materials You'll Need

Two pipe diameters and seven types of fittings are sufficient to build your fixed DIY compressed air system. For quality supplies, check out the Home Improvement collection for durable tools and materials.

Step 1: Cutting the Pipes

Cut the pipes using a pipe cutter or an angle grinder with a thin cutting disc. Always wear safety goggles during this step.

Step 2: Deburring the Pipe Ends

Before inserting the fittings, deburr the pipe ends both internally and externally using an appropriate tool. This ensures a proper seal and prevents damage to the fittings.

Step 3: Anchoring to the Perimeter Walls

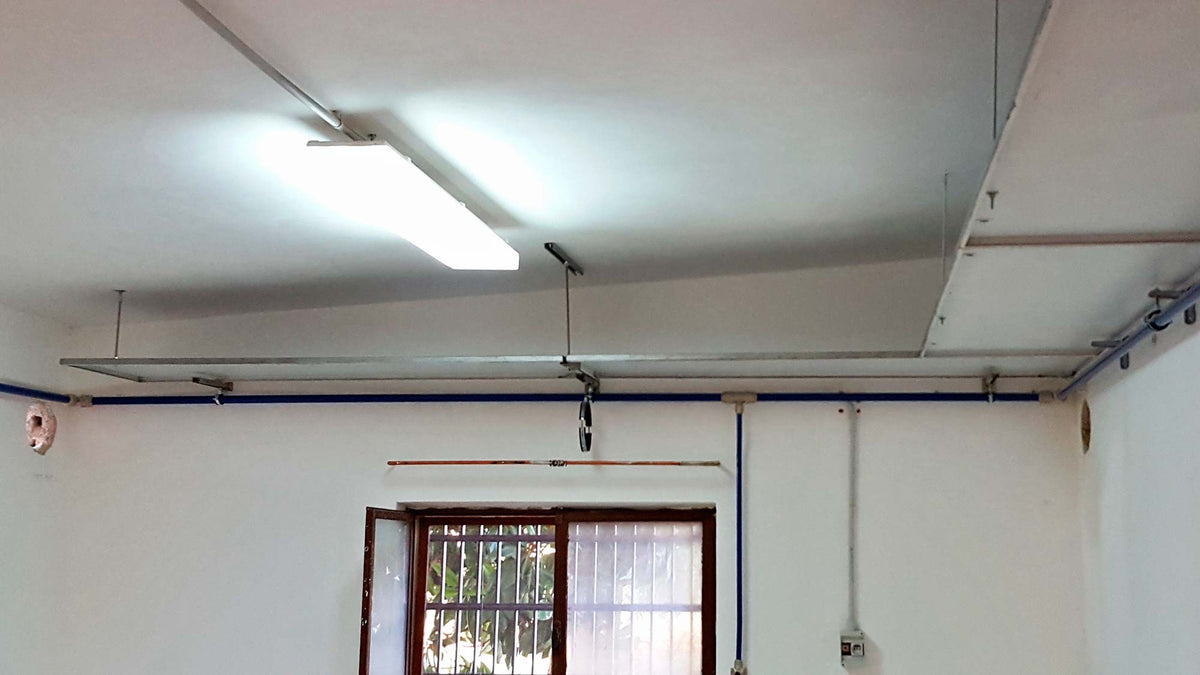

Use insulating rubber clamps to secure the pipes to the walls. These clamps won't mark the pipe. The overhead piping should be anchored along the perimeter walls of the room, under any existing projections, so you can run drop lines without obstruction. To prevent sagging, the distance between clamps should be less than two meters.

Step 4: Equipping with Accessories

Each drop line in your compressed air system can be equipped with accessories based on your needs. Options include a pressure regulator with a pressure gauge and quick-connect coupler, a direct outlet, or a filter/regulator/lubricator unit. For reliable accessories, browse the Home Improvement section.

Step 5: Compressor Placement and Electrical Supply

Position the compressor in an adjacent or distant room to avoid noise transmission in your workshop. Connect the air supply using a short length of flexible or coiled hose directly to a service drop line. If the drop line is in the garage, it's useful to equip it with a quick-connect coupler for attaching other devices like an inflation gun.

The electrical supply can be managed via a Smart outlet controllable by a phone app. This allows you to remotely turn the compressor on and off, only on days and hours you plan to use it. Consider adding workshop lighting to ensure you can see clearly while working.

Frequently Asked Questions

Q: What type of PVC pipe is suitable for compressed air?

A: Use specific PVC pipes designed for compressed air systems. Standard plumbing PVC can shatter under pressure, so always choose pipes rated for your compressor's output pressure.

Q: How many drop lines should I install?

A: Plan at least two or three drop lines around your workspace. Consider one near your main workbench, one near larger equipment like a saw or sander, and one near the garage door for inflating tires.

Q: Can I use the same system for painting?

A: Yes, but you'll need a high-quality filter/regulator at the drop line to remove moisture and oil from the air. This is essential for a clean paint finish.

Q: How do I prevent moisture in the pipes?

A: Install a moisture trap at the compressor outlet and at each drop line. Also, slope the main lines slightly so condensation drains toward a low point with a drain valve.

Q: Is it necessary to use a smart plug for the compressor?

A: Not necessary, but highly recommended. A smart plug lets you turn the compressor on before you enter the workshop, so it's ready when you arrive. It also allows you to turn it off if you forget, saving energy.

Additional Tips for Your Workshop

• Organize your tools: Keep your workspace tidy with a sturdy work desk and shelving for storage.
• Seating: If you spend long hours at the bench, an ergonomic chair can make a big difference.
• Outdoor projects: For work that moves outside, consider adding a shed or greenhouse to expand your workspace.
• Comfort: In colder months, an outdoor heater can keep your garage or workshop warm.
• Clean up: Use a portable BBQ for breaks, and store it neatly when not in use.

By following this guide, you can create a professional-grade compressed air system that will serve your workshop for years. Enjoy the convenience and efficiency of having air power at every station!
