Parametric Scandinavian Design Tv Rack Console 2026

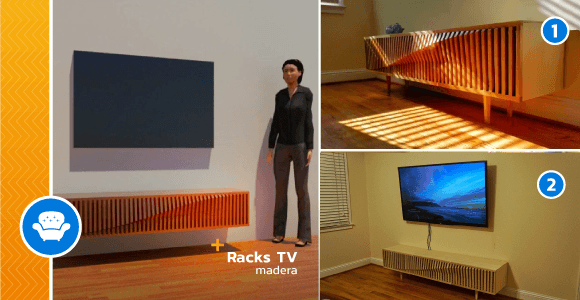

Parametric Scandinavian Design TV Rack Console, I designed this TV rack console to keep all peripherals out of sight.

Most of the things that go in there require ventilation and infrared remote connectivity, hence the open/grilled design that eliminates the need for handles as well.

Design TV Rack Console

It doesn't require much experience, but I certainly recommend building smaller things first to get comfortable. using carpentry tools if you decide to build one yourself.

Step 1: Initial 3D design

I wanted it to be simple with one important design feature: the curve pattern that appears as a kind of illusion.

I used Rhino and Grasshopper to 3D model the console.

The entire shape is generated using 4 curves and those curves are controlled with 4 points each.

I was originally planning to use walnut, but I thought a lighter tone wood would improve the curvature. I ended up going with poplar which I'm glad I did.

Great wood to work with, affordable and looks good if you avoid buying green stuff.

Step 2: Make the front panels

I printed templates for each slat and cut them with the band saw. Then I made some spacers to help with the glue.

Each panel is made of 16 slats and there are three panels.

Step 3: Building the Box

I used a wood jointer to help align the two 7-inch boards while edge gluing them to reach the 14-inch depth.

He did this for all 4 sides of the box.

I used Rabbet joints for the corners of the box. I added two middle supports using dice.

Step 4: Fit Test

Try clamping the front panels into the case for fine adjustments.

Step 5: Making the legs

The legs are designed to match the sharp, faceted edges of the rest of the console.

It is an octagon on the top and a square on the bottom.

The 90 degree sides have a constant width of 3/4".

Step 6: Testing in place after installing all panels and fine sanding

Sanded to approximately 200 grit before mounting the 3 panels using Non-Mortise Hinges.

It's not the easiest to align the panels perfectly with these types of hinges, but it worked after a few tries.

Step 7: Surface Finish

Seal the wood with thin lacquer (a coat of 3/4 Shellac + 1/4 denatured alcohol). This step is necessary when using certain species of wood that are known to have stains.

Then I used 4 coats of Polyurethane while lightly sanding between each coat.

I placed a black shelf liner on the inside which helped hide what's inside.

Step 8: Lighting

Finally, I installed LED strip lights, which turned the TV console into a flashlight. When we watch a movie, we now turn off all the lights except the "flashlight"
